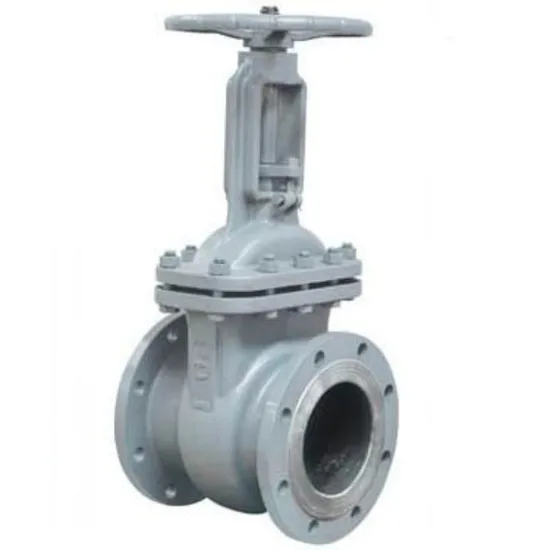

Class 900 Class 300 Class 600 Price List Carbon Steel Flange End Stainless Steel Seat High Temperature Hard Seal Manual Industries Gate Valve for Water

Product Description

Product Description

Main parts and materials
NO.	Main parts	Materials
1	Valve Body	WCB
2	Bonnet	WCB
3	Disc	WCB+Stainless steel
4	Stem	WCB
5	Yoke Nut	Ductile Iron

Function and specification
Type	PN(MPa)	Testing pressure (MPa)		Suitable temperature(ºC)	Suitable medium
		Strength (water)	Enclose (water)
Z41H-16C	1.6	2.4	1.76	≤425ºC	water,vapour,oil

Outline and measurement
Type	DN(mm)	Measurement(mm)				Reference weight(kg)
		L	D1	H	Z*Фd
Z41H-16C	50	180	125	285	4-18	12.7
	80	210	160	337	4-18	20.5
	100	230	180	383	8-18	27
	150	280	240	522	8-22	52
	200	330	295	647	12-22	80
	250	450	355	815	12-26	119
	300	500	410	886	12-26	156
	400	600	525	1241	12-30

Production process
Product packing
Company Profile
Hebei Yaosheng idustry located in B # industrial park, Xushui district, Baoding city, Hebei province, is aprofessional company integrating the research, development, manufacture and sales.Standards such as GB, JB, US API, ANSI, British BS, German DIN, Japanese JIS, GOST, and French NF are mainly adopted. There areabout 100 series of products, such as, gate valve, globe valve, check valve, ball valve, butterfly valve, bottom valve, drain valve, filter, and flange, which have been widely used in fields of petroleum, petrochemical, chemical, electric power,construction, medicine, water supply and drainage. Products have been widely launched in the market of European and Middle East and Southeast AISA, mainly including the United States, Romania, Spain, Vietnam, Indonesia, Malaysia, Russia, Kazakhstan, Ukraine and other countries.
Exhibition
Certifications

Why choose us

You are an agent, you will have a competitive price.
You are the end user, you will have superior quality.
