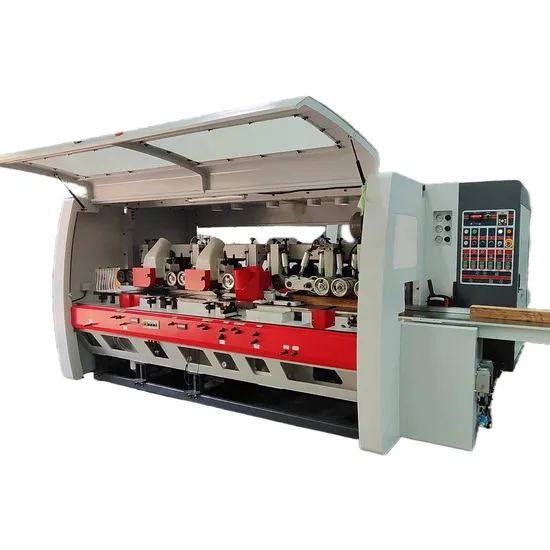

Woodworking Solid Wood Machine Heavy Duty Four Axis Four Sides Planer

Product Description

Four axis four side planer series

Model		HJD-M416A	HJD-M421A
Machine parameter	Working width	25-160mm	25-210mm
	Working thickness	8-100mm	8-100mm
	Working length	>250mm >300mm	>250mm >300mm
	Work table size	1250mm	1250mm
	Feeding speed	10-45m/min	10-45m/min
	Main spindle diameter	Φ40mm	Φ40mm
	Rotary speed of main spindle	6000r/min	6000r/min
	Air pressure	0.6MPa	0.6MPa
Motor power	Lower spindle	4kw	5.5kw
	Upper spindle	5.5kw	7.5kw
	Right vertical spindle	4kw	5.5kw
	Left vertical spindle	4kw	5.5kw
	Beam lifting motor	1.1kw	1.1kw
	Feeding motor	4kw	4kw
Cutter diameter	Lower spindle	Φ125 -140mm	Φ125 -140mm
	Right vertical spindle	Φ125-165mm	Φ125-165mm
	Left vertical spindle	Φ125-165mm	Φ125-165mm
	Upper spindle	Φ125-165mm	Φ125-165mm
Others	Feeding roller diameter	Φ140mm	Φ140mm
	Dust pipe diameter	Φ140mm*4	Φ140mm*4
	Dimension	4100*1600x1750mm	4100*1600x1750mm
	Weight	2500kg	3000kg

Standard configuration
-The machine bed is cast from high grade cast iron to ensure the stability of the machine
-This adopts step-less material feeding, material feeding speed ranges from 5 to 24 m/min
-Each main shaft is driven by independent electric motor, cutting force is powerful
-Main shaft is adjusted to focus on the front, operation is convenient
-Hard chrome plating work table is durable
-Equips with auxiliary unit alarming lack of material,it effectively improvises smooth feed-in while lack of material.
-Multi-group drive rollers improve feeding efficiency,International brands electrical parts are applied for good stability
-Spare parts are thick and solid to maintain high precision, high stability and high reliability:
-Pneumatic compressed feeding roller is applied, the pressing force can be adjusted by stages
which is favorable for smooth feeding of timbers with different thickness
-Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.
Payment: 30% by T/T deposit in advance, balance by T/T before shipment
Package: Plastic film packing and fit in container directly.
Delivery: 30 days after receive the down payment.
Warranty: Machine supplied quality guarantee period is: one year for mechanical parts and three months for low-voltage electrical components. Warranty is counting from the date of B/L.
Installation: If need to install, the buyer bear round-trip ticket from China to buyer site, Visa fee, food, accommodation and local transportation of seller's engineer, plus USD100.00 service fee per engineer per day.
