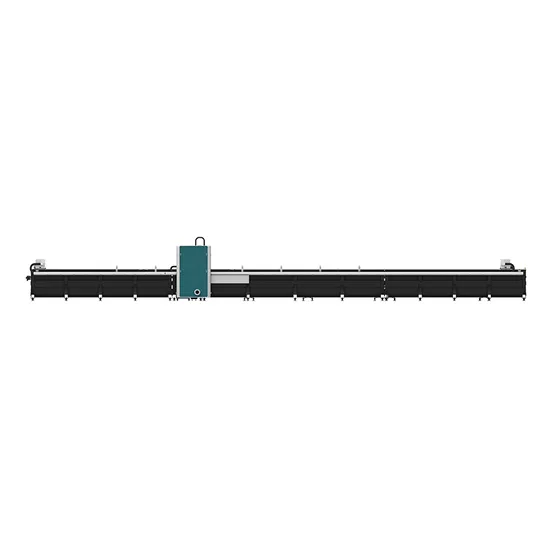

Chinese Manufacturer CNC Sheet Metal Pipe Fiber Laser Cutting Machine for Tube

Product Description

Parameters

Model	LX123TX
Power of generator	3000-12000W
Dimension	27000*2800*2800mm
Repeated Positioning Accuracy	±0.02mm
Specified Voltage and Frequency	380V 50/60Hz

Main Parts
Segmented rectangular laser tube welding bed

•Great rigidity
•High precision
•No deformation during the life cycle
•Welded aluminum chuck plate
•High-precision process molding
•Excellent dynamic performance
Pneumatic Chuck Holding Device

Pneumatic clamp design on both sides, can automatically adjust the center, adjustable diagonal range 20-220mm (320/350) optional
Intelligent Auto Focus

·Efficient Cooling
Both the collimating lens and the focusing lens group are cooling structures, and the cooling air nozzle is added at the same time, which effectively protects the nozzle and ceramic body and prolongs the working time.
·Chasing Aperture
Through the aperture of 35 mm, the interference of stray light is effectively reduced.
·Auto focus
Auto focus, reduce human interference, focus speed 10m/min, repeatability 50 microns 25mm carbon steel plate pre-punching time <3s@3000w, greatly improving cutting efficiency.
Segmented automatic support installation design

Adopt intelligent tube support design to solve the deformation problem in the process of cutting long tubes
Professional fixture design

·Professional fixture design
·Automatic pneumatic chuck, adjustable and stable, with wider clamping range and greater clamping force.
·Non-destructive pipe clamping, fast and automatic centering clamping of pipes, more stable performance.
·The chuck size is smaller, the moment of inertia is low, and the dynamic performance is strong.
·Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency.
·Long working life and high working reliability.

Sample
Our Customers
Offline Exhibition
Certification Display About machine quality, we have get the third party certification, and about the machine, we have 3 years machine warranty, if you need, we always here.
About Jinan Lingxiu Laser Equipment Co., Ltd It is established in July 2004, owns more than 500 square meters of researching and office
space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries and areas,and supply OEM service for more than 30 manufactures.
After-sales Team
FAQ
Q: Do you have CE document and other documents for customs clearance?A: Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.Q: Payment terms?A:****** trade assurance/TT/Payple/LC/Cash and so on.Q: I don't know how to use after i receive or i have problem during use, how to do?A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.Q: I don't know which one is suitable for me ?A :just tell us below information1) Max work size:choose most suitable model.2) Materials and Cutting thickness:Power of laser generator.3) Business industries:We sell a lot and give advice on this business line.
Q: If we need Lingxiu technician to train us after order,how to charge?A:1) If you come to our factory to get training,it is free for learning.And the seller also accompany you in factory 1-3 working days.(Every one learning ability is different,also according to details)2) If you need our technician go to your local factory to teach you ,you need to bear the technician's business travelling ticket / room and board/ 100 USD per day.
