Professional Horizontal CNC Lathe with Milling, Drilling Function for Flange, Shaft, Cylinder, Roller

Product Description

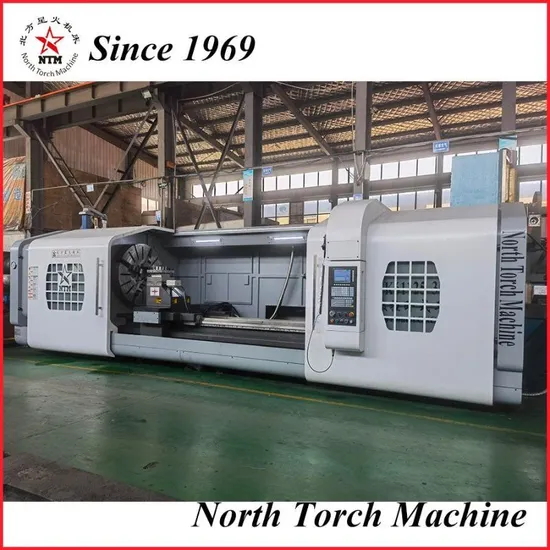

China Professional Horizontal CNC Lathe Machine
CNC Lahe, lathe machine tool, horizontal lathe with full metal cover For Turning Long Shaft,Tire Mold, Railway Parts,Wheel Hub Turbine,etc

Our company advantages:
1. We have our foundry which can control the casting parts quality very well. We have professional hardening/quenching furnace used for castings surface treatment to ensure high stability, rigidity and accuracy of horizontal lathe machine.
2. Professional machining equipment such as 12 meters long gantry CNC Grinding Machine, gantry milling machine, CNC Boring Machine, Drilling Machine, Horizontal CNC Lathe Machine for machine main parts like headstock , tailstock, guide rail ,cutting tool carriage, chuck turning
3. Professional technical team to provide both 3D & 2D drawings of horizontal Lathe Machines, roll turning lathe, Facing Lathe Machine, etc to customers after order confirmation and before production. In this designing method, we can make a perfect customized lathe machine for customers.
4. Immediate reply and actions of after-sale service about horizontal CNC Lathe , even after 15 years, we can also provide the easy damaged lathe machine parts and accessories immediately, becaue for each horizontal lathe machine and vertical lathe machines, we have one complete drawings. and we have enough spare parts for each lathe machine in stock.
1. Outstanding Characteristics:
All components of machine are imported foreign famous brands, such as FANUC or SIMENS Control System/ Schneider Electrical Control system, Japanese NSK Bearing, ABB Motor& transmission box/gear box, etc. We can also configurate per customer's special request and demands. Our Engineers can design different configurations according to different workpieces characteristics.
1.) This kind of horizontal lathe machine can be designed into CNC Milling Lathe which has functions of Milling and Turning, including screw thread, conical surface, curved surface, internal boring, etc.
2.) The standard horizontal lathe machine adopts frequency control system as its main drive system; driven by frequency control motor, the speed of main-shaft realizes stepless speed regulating, thus having different speeds to meet rational cutting speed requirements for the machining of different type of work-piece.It can be also intalled a servo motor per customer special request
3.) This lathe consists of lathe bed, selective headstock, tailstock, blade adapter, electric control system, lubrication system, and so on. Selective headstock and tailstock are installed at the left and right side of lathe bed respectively.
4.) The main shaft can realize stepless speed regulating in a range of 10~300r/min; and the main spindle front bearing adopts high-precision double row cylindrical roller bearings, having high-degree of rigidity and rotary precision and easy to adjust.
5.) High Rigidity, Stability and Precision Maintenance: All castings are made of high-strength meehanite HT250. which is particularly suitable for heavy cutting. All large castings stand the test of annealing and vibration aging and internal stress is eliminated, so the overall precision is greatly enhanced and processed parts are found with high geometric accuracy.
Our Principle : Maximize Customer's Profitability under the minimum invest cost.
Facing CNC Lathe Machine accessories and options:
1. 4 jaws chuck or 3 jaws self-centering chucks, all are available per customer's request and demands
2. Chuck cover or full metal cover for facing cnc lathe, semi-metal cover for horizontal lathe are optional
3. Chip Removal System, Chip conveyor are optional also .
4. Boring Bar Attachment , milling/drilling head unit / grinding wheel are all available to be installed on the lathe machne.
Application: This is a CNC horizontal roller lathe which is suitable for high-speed steel and carbide cutting tool to implement coarse and fine stock removing and cutting on the outer cylindrical surface of roller of different materials; it also can be used for rough and finish machining of other shaft parts.
2. Standard Technical Parameters of Horizontal Facing CNC Lathe Machine Tool

Specifications of Horizontal Facing CNC Lathe
Name	Unit	CK61125	CK61160	CK61200	CK61250	CK61300
Swing Diameter over Machine Bed	mm	φ1250mm	φ1600mm	φ2000mm	φ2500mm	φ3000
Chuck Diameter	mm	φ1000mm	φ1250mm	φ1600mm	φ2000mm	φ2500mm
Chuck-jaw seat length	mm	Embedded	Embedded	500mm	500mm	500mm
Work-piece Length	mm
Work-piece Weight	T	4T	8T	15T	20T	25T
Spindle Diameter	mm	φ190mm	φ200mm	φ220mm	φ220mm	φ260mm
Spindle Speed	r/min	10-200 r/min	4-160 r/min	4-160 r/min	3-106 r/min	3-106 r/min
X Axis Stroke	mm	625mm	800mm`	1000mm	1250mm	1500mm
Z Axis Stroke	mm	per work-piece length from 1000 to 12000 mm, all are OK
X Axis Rapid Feed Speed	mm/min	2500mm/min	2500mm/min	2500mm/min	2000mm/min	2000mm/min
Z Axis Rapid Feed Speed	mm/min	2000mm/min	2000mm/min	2000mm/min	2000mm/min	2000mm/min
Cutting Tool Carriage Size		240*240	280*280	300*300	300*300	300*300
Cutting Tool Shank Size	mm	32*32mm	40*40mm	40*40mm	40*40mm	40*40mm
Feed Control		Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor
Motor Parameters
Main Motor Power	KW	15KW	18.5KW	18.5KW	22KW	37KW
Feed Motor of Z Axis	KW	2.3KW	2.3KW	2.3KW	2.3KW	2.3KW
Feed Motor of X Axis	KW	2.3KW	5.5KW	5.5KW	5.5KW	5.5KW
Lubrication Motor Power	KW	0.37KW	0.37KW	0.37KW	0.55KW	0.55KW
Machine Accuracy
Cylindricity	mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm
Flatness	mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm
Roughness	Ra	Ra3.2	Ra3.2	Ra3.2	Ra3.2	Ra3.2

Rermarks:
1. The above 5 models of horizontal Facing CNC Lathes are the standard configurations, we can also design and manufacture customized lathe according to the user's workpiece features.
2. This series horizontal Lathe Machines have been exported to Norway, Thailand, Romania, Iran, Russia, Chile for machining railway parts, automobile parts, mining and metallurgy, shipping building, wind power and other machinery industry.
