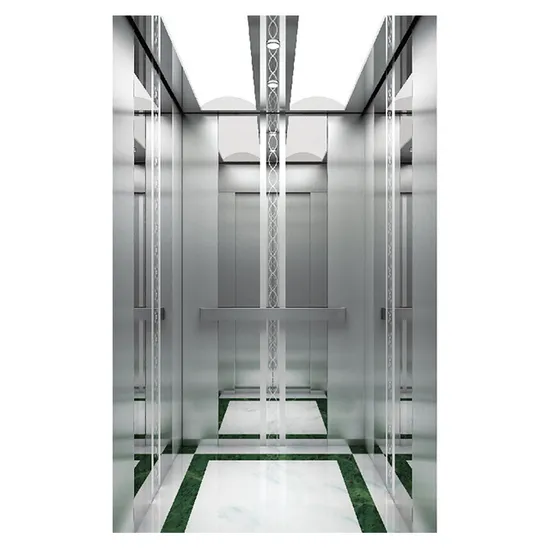

TUV Standard 8 Person Commercial Customized Stainless Steel Small Lift Elevator Cabin

TUV Standard 8 Person Commercial Customized Stainless Steel Small Lift Elevator Cabin

US$10,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
NOVA
Driving Type
AC Elevator
Capacity
500-1000kg
Persons
6 - 10
Speed
1.00 - 2.00m/s
Control Mode
Push-Button Control
Position of Computer Room
up
Elevator Door
Center Opening Door
Door Knife
Double
Deceleration Device
With Deceleration Device
Attendant
Without Attendant
Traction Machine
Torin, Monadrive, Faxi
Door Brand
Mitsubishi, Selcom
Shaft
Concrete or Steel Structure
Cabin
Painted, Stainless Steel
Door Panel
Painted, Stainless Steel
Cop&Lop
Stainless Steel, Glass
Position Indicator
DOT Matrix Display, LCD
Controller
Step As380 or Monarch Nice3000 New
Automatic Rescue Device
Yes or No
Voice Announcement
Yes or No
Transport Package
Standard Export Package
Specification
From 450KGS to 1600KGS
Trademark
NOVA
Origin
China
HS Code
84281010
Production Capacity
5600 Units Per Year

Packaging & Delivery

Package Size
50.00cm * 50.00cm * 50.00cm
Package Gross Weight
10.000kg

Product Description

TUV Standard 8 Person Commercial Customized Stainless Steel Small Lift Elevator Cabin Product Description
Elevator Cabin
1.We can make cabins for Passenger Lift, Panoramic Lift, Bed Lifts and Freight Lifts as per our standard or customers' design;
2.Cabin Panels Material: painted panels, hairness stainless steel , mirror stainless steel or etching stainless steel;
3.Ceiling, handrail, and floor can be opitional.
Product Parameters
Load(kg) Speed (m/s) Control mode Internal car size (mm) Door size (mm) Hoistway(mm) Generator room with one elevator (mm) Generator room with two elevator (mm)
C.W C.D C.H D.H H.W H.W H.D P.H HR.H MR.W MR.D MR.H MR.W MR.D MR.H
450 1 VVVF 1100 1000 2500 800 2100 1850 1700 1500 4500 2500 3300 2500 4500 3330 2500
1.75 1700 4800
630 1 1400 1100 2500 800 2100 2000 1800 1500 4500 2500 3300 2500 4500 3330 2500
1.75 1700 4800
800 1 1400 1350 2500 800 2100 2000 2000 1500 4500 2600 3650 2500 4600 3650 2500
1.75 1700 4800
2 1900 5100
2.5 2100 5300
1000 1 1600 1500 2500 900 2100 2200 2200 1500 4500 2800 3850 2500 5600 3850 2500
1.75 1700 4800
2 1900 5100
2.5 2100 5300
1150 1 1800 1500 2500 1100 2100 2400 2200 1500 4500 3200 3850 2500 6400 3750 2500
1.75 1700 4800
2 1900 5100
2.5 2100 5300
1350 1 1900 1600 2500 1100 2100 2500 2300 1500 4500 3250 3950 2500 6500 3950 2500
1.75 1700 4800
2 1900 5100
2.5 2100 5300
1600 1 2000 1750 2500 1100 2100 2600 2500 1500 4500 3250 4150 2500 6500 4150 2500
1.75 1700 4800
2 1900 5100
2.5 2100 5300
