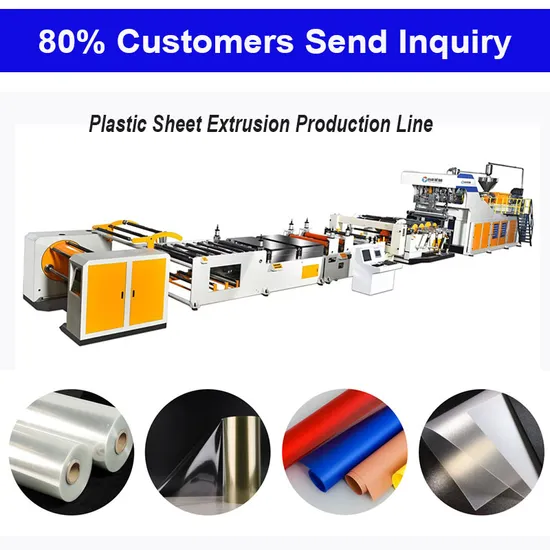

Twin Screw Pet PP PS Sheet Extrusion Line Plastic Sheet Extruder Machine

Product Description

Taizhang Machinery has 15 years experience of providing solutions and manufacturing of plastic sheet extrusion production line, our sheet extrusion lines are widely used for plastic sheet extrusion of PET, PP, PS, PE, PLA, PVC,etc. Based on customer requirements, taizhang also provide single layer sheet extrusion machine, double-layer co-extruded sheet production line, multi-layer co-extruded sheet production line.
PET PP PS Parallel Twin Screw Non Drying Exhaust Type Sheet Extrusion Machine
Features
What is a Twin-screw Extruder?
The twin-screw extruder, developed by Dongguan Taizhang Machinery Co., Ltd., is a cutting-edge plastic processing equipment that surpasses single-screw extruders in performance and efficiency.
Main Features:1,Good feeding, mixing, and plasticizing performance
2,Efficient exhaust and extrusion stability
3,Comprehensive systems including screw, feeding, heating, cooling, hydraulic screen changing, vacuum, and electronic control Screw System: The core of the twin-screw extruder, with sections for feeding, melting, mixing, exhaust, and homogenization. Customizable threaded elements for various production needs.
Advantages:1,Efficient production with higher efficiency
2,Wide application range for various materials
3,Uniform mixing for consistent product quality
4,High precision for stable product quality
5,Easy-to-use control system with minimal maintenance
In conclusion, the twin-screw extruder by Dongguan Taizhang Machinery Co., Ltd. offers superior production efficiency, versatile application, uniform mixing, and high precision, making it a valuable asset in various industries.
Project Overview:

1. Conditions of Use:	380V/3P/50Hz
2. Production material:	PET pellets and regularly broken pieces
3. Product specifications:	thickness:δ=0.15-1.5mm;Finished product width:800mm
4. Extrusion output:	300-400Kg/h

Device Configuration:

1. 75/40 parallel twin screw extruder	1 set
2. Hydraulic screen changer	1 set
3. Melt metering pump	1 set
4. T-die	1 set
5. Three-roller calender	1 set
6. Roller temperature control system	1 set
7. Cooling shaping bracket	1 set
8. Waste edge trimming device + waste edge winding device (both sides)	1 set
9. Silicone oil coating device with dryer (double-sided)	1 set
10.Traction device	1 set
11. Dual station winding machine	1 set
12. Electrical control system	1 set

Technical Parameter

Model	Suitable material	Screw type	Screw specifications	Sheet thickness(mm)	Sheet width(mm)	Maximum extrusion capacity (kg/h)	Installed capacity (kw)
TZS-75PET	PET,PLA	cordwood system	Φ75	0.12-1.6	<=800	450-550	315
TZS-85PET	PET,PLA		Φ85	0.12-1.6	<=1000	600-800	380
TZS-95PET	PET,PLA		Φ92	0.12-1.6	<=950	1000-1200	495
TZS-105PET	PET,PLA		Φ100	0.12-1.6	<=950	1200-1500	505
TZS85-1200	Starch-based degradation materials		Φ85	0.3-2.0	<=800	400-500	275

Factory Main Products :
1.PET co-extruding machine line/PP PS PS co-extruding machine/extruding machine/pet extrusion machine line
2.plastic vacuum forming machine/plastic cup thermoforming machine/Thermoforming Machine
3.plastic crusher machine/plastic crusher/plastic bottle crusher/plastic crushing machine
Detailed Photos

Three-roller calender
The three-roller light machine is a horizontal or vertical or 45 degree inclined design.The thickness of the sheet is automated adjustment system,The machanical roller has anti-collision protection function.The use of electronic hand wheel operations to implement the sheet specifications,which are transformed quickly and relaxed,and no tedious operations are required.The accuracy of slices is as high as 0.005mm.
Mould
The mold is made of alloy steel, and the flow channel is chrome-plated and polished, allowing the mold width to be adjusted without stopping the machine.
Duplex Sheet Winder
The dual station winding machine is equipped with automatic meter meter , You can also customize a larger volume weight , and the larger diameter can be collected by 1.15 meters . It also specially developed an automatic winding machine that can collect 2 rolls at the same time to achieve high production capacity.
Extruders
It is derived from Taiwan's technology design free dryin and exhaust type planet type screw,which has the advantages of mandatory feeding,high speed,high production capacity , and high quality . It is suitable for 80% return,maintaining the original toughness of the original film , and it can also be suitable for PP HIPS PLA.
Scope of application:
Relative Machines
Plastic Sheet Extrusion Machines
Taizhang provide a variety of plastic sheet extrusion production line solution, such as PET, PP, PE, PS, ABS, PC, PMMA, PLA, etc. Widely used in plastic sheet thermoforming industry.
Plastic Sheet Thermoforming Machines:
Taizhang provide professional plastic sheet thermoforming production solution, widely suitbale for produciton of plastic food container, fruit egg tray, seedling tray, electronic tray, plastic cup, lid, plate, flowerpot,etc.
Plastic Cup Making Machine
Taizhang pisposable cup making machines,they are widely
used for plastic milk tea cups, coffee cups, disposable watercups, fast food box,plastic lid,fruit box,fresh food tray,etc.
Certifications
Service
1. Pre-sales Service
TANZ MACHINERY has a specialized and efficiency working team. If you are new on the plastic forming machine area,we are glad to give you specialized suggestion of the whole work.
2. Shipping Service
TANZ MACHINERY has a specialized and independent department to arrange the shippment. We will prepare all the necessary documents so as to arrange the delivery smoothly,
we cooperate with the most famous shipping company in China,they could provide the best and economic shipping ways to destinaion.
3. Installation Services
Installation Services are avaliable with TANZ Company machines. We could dispatch technician to the Buyer's factory for installation and preparation of the machines.
The buyer needs to supply the round trip tickets,food,hotel cost and daily salary.
4. Cilents Training Services
The buyer could aslo send your own technician come to TANZ factory to learn how to operate machines,Our technician will teach and train the learners hand by hand till he operate machine by himself.
5. After Sales Service
TANZ Company machines guarantee time is one year.
1. Our standard packing method is film wrapping.
2. Wooden case packing can be provided as required and the cost will be charged.
3. The delivery date of machine is within 45 days per set.
4. Shipment in Shenzhen port or Shanghai port, China
FAQ
Q:What's your delivery date?
A:Usually finish the production within 45 days after received your 30% advanced payment, actually need to check according our stock & production plan.
Q: Terms of payment?
A: We accept T/T with 30% in advance and 70% before shipment. Also we could accept L/C at sight.
Q: How many days will the finish installing ?
A: We will finish installation and training within 15days.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from the day when finished installation.
Q: How could we do after one year warranty period?
A: We provide 1 year warranty. Within the warranty period, we provide free machine parts and repair service but not including shipping cost if it is not caused by human factors. After 1 year, we provide lifetime service with affordable charge.
Q: How many worker do we need to operate those machines?
A: Usually one machine needs 1-2 operators.
Q: Can you supply raw materials?
A: In addition to producing blister machines, we also produce plastic sheet extruders. If you think the price is right, you can buy our machine to produce sheets. If you do not want to purchase a sheet machine, we can also help you order raw materials and arrange machine shipment.PLEASE FEEL FREE TO CONTACT US !
