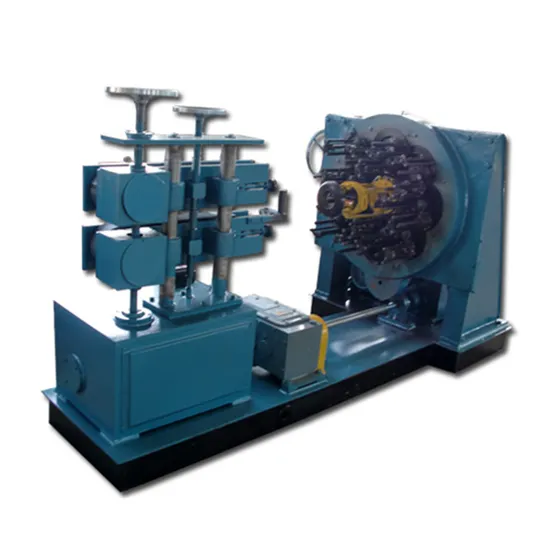

Double 36 Carriers Decker Wire Braiding Machine / Stainless Steel Wire Braiding Machine for Flexible Metal Hose

Product Description

Double 36 Carriers Decker Wire Braiding Machine / Stainless Steel Wire Braiding Machine for Flexible Metal Hose
Product description
The wire braiding machines we can make as follows:
Wire diameter:0.3mm to 1.0mm
No.of spindles:16 to 128 spindle braiding machine
ID of the braids:4mm to 600mm
Material of wires:stainless steel,galvanized carbon steel, copper wire
Our braiding machines are horizontal types that enable heavy tensile strength.

single decker Wire Braiding Machine Type No. Braid ID (mm) rotation speed of spindle r/min braiding angle Pitch(mm) pulling speed (m/h) no.of carriers Motor power(KW) BG-16 4-10 24.8 54°44' 9-22 13-33 16 Y132M1-6 4.0KW BG-20 6--13 19.8 54°44' 13-29 15-34.5 20 Y132M1-6 4.0KW BG-24 10--31 14.25 54°44' 22--69 21--66 24 Y132M1-6 4.0KW BG-36 15--45 10 54°44' 33--100 22--66 36 Y132M1-6 5.5KW BG-48 30--75 7.25 54°44' 66--166 29--72 48 Y132M1-6 7.5KW BG-64 51--110 4.56 54°44' 67--240 18.6--102 64 Y160L-6 11KW BG-72 80--150 4.25 54°44' 170--330 44--83 72 Y160L-6 11KW BG-96 150--400 2.75 54°44' 240--750 50--120 96 Y160L-6 11KW

Double decker wire braiding machine

Type No.	Braid ID (mm)	rotation speed of spindle r/min	braiding angle	Pitch(mm)	pulling speed (m/h)	no.of carriers	Motor power(KW)
BG-2S16	4-10	24.8	54°44'	9-22	13-33	32	Y132M1-6 5.5KW
BG-2S20	6--13	19.8	54°44'	13-29	15-34.5	40	Y132M1-6 5.5KW
BG-2S24	10--31	14.25	54°44'	22--69	21--66	48	Y132M1-6 5.5KW
BG-2S36	15--45	10	54°44'	33--100	22--66	72	Y132M1-6 6.0KW
BG-2S48	30--75	7.25	54°44'	66--166	29--72	96	Y132M1-6 9.5KW

Double decker wire braiding machine
Single decker wire braiding machine

Picture of hose
Related machine-Rewinding machine
Our customer
Parts of machine
Certification
Carriage
Company information
We are professional manufacturer of steel wire braiding machine with more than 35 years of history. Our machines are widely used in many industries: rubber hose, cable and stainless steel metal hose manufacturing.The sizes cover 16 carrier from 128 carrier braiding machine, the wire diameter starts from 0.2 till 1.0mm. Our braiding machines are horizontal types which enable heavy tensile strength.
Our service
Warranty period of one year
standard seaworthy package
Engineers available to service machinery overseas
FAQ for Steel Wire Braiding Machine
1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30
years of experience
2. What wires can you machine braid?
A. Stainless steel wire
B. Copper lad steel wire
C. Copper wire
3. What application of your braiding machine?
Popular for both rubber hose and metal hose manufacturing
We need to know the following information to quote you correct machineries:
1.What outer diameter of the hose you want to braid?
2. Structure of the braid?
How many carriers/bobbins you need for braiding your hose? For instance, 24, 36,64,72,96,128 carrier, etc.
