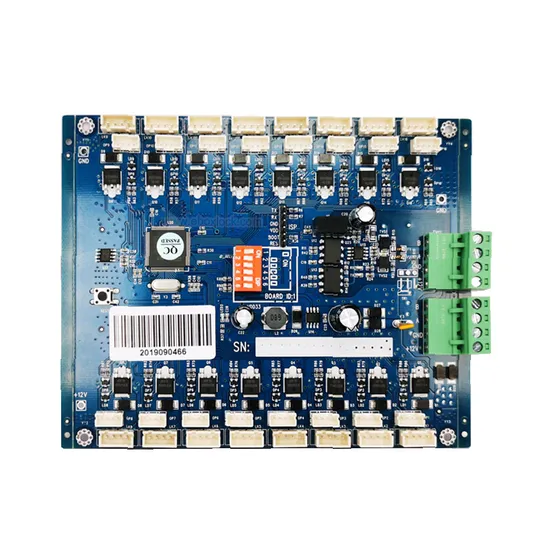

Parcel Locker System Access Controller with RS485 16CH

Product Description

Electronic locker system controller AL1648 is a 16-channel relay board that performs lock control in the electronic locker system. It is the interface between the main controller and the electronic locks. The slave controller operates under the control of the main controller and provides relay output to the locks, meanwhile provides report of the door status to the main. A single slave controller can control up to 16 locks, with extension board by RS485 interface, the system is able to control 485 locks. It is suitable for eletronic parcel delivery lock and vending machine kiosk.
Features Interface to PC via RS485 Supports up to 8 electronic locker locks Extendable up to 485 channels Allows door status reporting Power supply of locker locks
Specification Operation Voltage 12-24VDC Power Consumption 30W Max Load Per Channel 4A Frequency 13.56MHAZ Communication rate 9.6Kbps Working Temperature -10C ~ +60C Working Humidity 10%-90%R.H Atmospheric pressure 86kpa-106kpa Dimensions LxWxH 107mm*90mm*32mm Gross Weight 0.3kg

Applications The Electronic Parcel Delivery System is ideal for various applications as following: Electronic Parcel Lockers Parcel Delivery Lockers Biometric lockers Vending lockers Refrigerated Electronic Locker System RFID lockers Bar code lockers Fingerprint lockers Free access lockers Rental lockers

Order Particular NO. Particular 1 AM8046 master controller 2 AL2445 slave controller 3 15.6 LCD screen 4 IR detection module 5 Barcode scanner module 6 Electronic cabinet lock 7 4x4 matrix keypad
Please contact us for datasheet of the Parcel delivery locker system
Please contact us for datasheet of the Parcel delivery locker system
