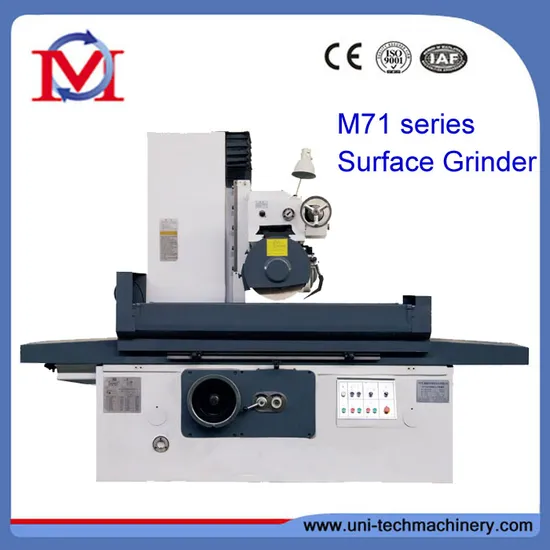

M7140A Wheel Head Moving Surface Grinding Machine
| US$8,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M7140A
Type
Surface Grinding Machine
Processing Object
Flat Surface Piece
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Sruface Grinding Machine
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
M7140A Wheel Head Moving Surface Grindin
400X1600mm
Max. Grinding Size
400X1600mm
Spindle Center to Table Surface
600mm
Wheel Head Power
7.5kw
Total Power
11kw
Load on Table
620kgs
Magnetic Chuck Size
400X1000mm
Weight
5000kgs
Rapid Speed for Head
400mm/Min
Packing Size
320X220X233cm
Transport Package
One Pallet
Specification
M7140A
Trademark
UNI-TECH
Origin
China
HS Code
84601900
Production Capacity
40PCS/Month
Product Description
M7140A wheel head moving surface grinding machineMAIN FEATURES
1.Wheel Head moving, Horizontal spindle, suitable for heavy-duty cutting Grind wheel head spindle front end adopts shell bear bearing support, rear end adopts Roller bearing, with high rigidity, specially for heavy-duty cutting. Transmission: Worktable adopts one flat and one V guide ways, driven by hydraulic with smooth movement. Grinding wheel adopts two sets of guide way, one is flat guide way for up/down moving. Another set is swallow tail guide way for back-forward movements, with manual feeding or
Auto-feeding by hydraulic cylinder.
5. The M7130AL,M7140A,M7150A,M7163 series surface grinder adopts the cooler for hydraulic oil tank.The temperature of the oil tank raises little so the thermal distortion of the machine is small.
6. Full lubrication system ensuring all guide ways smooth moving.
Standard Accessories
1.Wheel flange
2.Balancing arbor
3.Wheel exactor
4.Coolant tank
5.Working lamp
6.Tool box and tools
7.Wheel dresser stand not include diamond pen,
8.Standard grinding wheel
9.Leveling wedge and bolt
10.Standard electro magnetic chuck,
Optional Acessories
Magnetic chuck
Balance stand
Wheel flange
Coolant with magnetic separator and paper filter
Parallel wheel dresser screw rod type
| Model | Unit | M7140 | M7140A | M7140A | M7140A | |
| x1600 | x2200 | |||||
| Worktable size(WxL) | mm | 400x1000 | 400x1000 | 400x1600 | 400x2200 | |
| Max.machining dimension(WxL) | mm | 400x1000 | 400x1000 | 400x1600 | 400x2200 | |
| Max.distance between spindle center line and worktable surface | mm | 575 | 600 | |||
| Longitudinal moving speed of worktable | m/min | 5-25 | 5-25 | |||
| T-slot number*W | mm | 3x18 | ||||
| Wheel head | Consecutive feed speed | m/min | 0.5-4.5 | |||
| cross moving | Intermittent feed speed | mm/t | 3-30 | |||
| Vertical moving of wheel head | Hand wheel feed | mm | 0.02 | |||
| Rapid speed | mm/min | 400 | ||||
| Hand wheel feed | mm/gra | 0.01 | ||||
| Wheel head motor | Power | kw | 5.5 | 7.5 | ||
| Rotation speed | rpm | 1440 | ||||
| Total power | kw | 9 | 11 | 13.5 | 13.5 | |
| Max.loading capacity of worktable (with chuck) | kg | 620 | 1000 | 1380 | ||
| Chuck size(WxL) | mm | 400x1000 | 400x1000 | 400x800 | 400X1000 | |
| x1 | x1 | x2 | X2 | |||
| Wheel size (OD*W*ID) | mm | 350x40x127 | 400x40x127 | |||
| Packing size(LxWxH) | cm | 295x220x223 | 320x220x233 | 500x200x233 | 680x220x233 | |
| Machine weight | kg | 4700 | 5010 | 6510 | 7600 | |
