Economic Speed 2 Ply Customized Flute Corrugator Single Facer Machinery Price

Product Description

Product Description

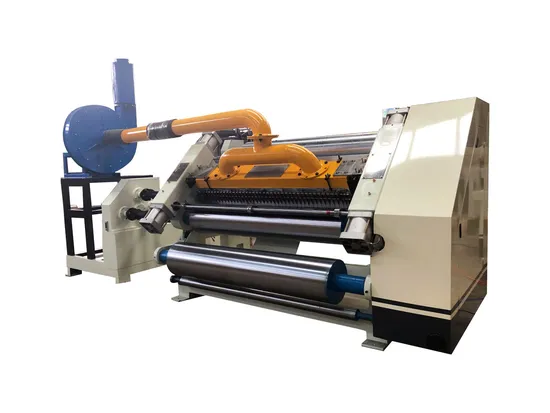

SF280-1600 single facer machine
INSTRUCTON AND FEATURES
1. Paper feeding way is vacuum suction way and perfect flute formation in high speed production.
2. Available width:1400/1600/1800/2000/2200 mm
3. Flute type: A, B, C, D, E, F,G UV
4. corrugated roller:φ280/300/320/360/380mm
5.Drive using universal joints, isolate the vibration source which make transmission more stable, reliable.
6. Driven gearbox adopts immerse in lubrication oil, reduce noise, universal joint transmission. Separate structure is independent controlled and transmission more stable.
7. The glue coating part adopt automatic circulating glue feeding way (manual or electrical isolation device)
8. Pneumatic control to adjust the glue feeding and adjust gluing capacity electrically or manually; the glue parts running separately while the main motor stopped, prevent paste from drying up.
9. It is equipped with the high pressure powerful air fan with the wind capacity adjustable device and silencer; air source and electric control are in one cabinet
10. The machine wall made by cast iron and thickness 130mm
11. The corrugated roller materials 50CrMo alloy, the inner hole is fine bored, tempered and finish turned and the surface is medium-frequency quenched, CNC polished and fine grinded and hard chrome-plated.
12. The corrugated roller diameter ¢320mm; Hardness can reach more than HRC60 which ensures good wear-resistance and long life service.
TECHNOLOGY PARAMETERS

Model	SF280-1600
Working width	1600 mm
Heating way	Steam/oil/electric
Flute type	A B C D E
Operate direction	Left or right according to customer's factory
Designed speed	150m/min
Economic running speed	60-130m/min
Temperature range	160-200ºC
Steam pressure	0.8-1.3Mpa
Air source	0.4-0.8Mpa
