ASTMD3822 Standard Test Machine For Tensile Properties of Single Textile Fibers

Product Description

Product Description

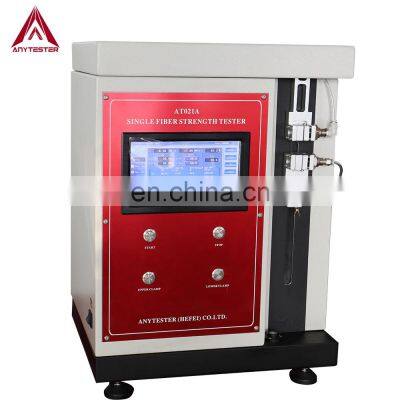

ApplicationAT021 Series Single Fiber Strength Tester is used to determine the breaking load, elongation at breaking load, load at specified elongation, elongation at specified load, creep, etc. of natural fiber, chemical fiber, metal wire, hair, carbon fiber, etc.Standard GB/T 9997, 13835.5, 14337 ISO 5079ASTM D3822ISO 5079, 11566BS 4029 Note: For more standards, please contact usFeatures Test functions: F1. Tensile test F2. Elasticity test at specified elongation F3. Repeated tensile test at specified elongation with settable two stop time F4. Elasticity test at specified load F5. Repeated tensile test at specified load with settable two stop time F6. Repeated tensile test at incremental load with settable two stop time F7. Creep F8. Relax Large LCD screen display of all parameters and data in both English menu; Delete random test data and export test result in Excel document, convenient for the user to connect with the enterprise management software; Software analyzing function:breaking point, rupture point, stress point, yield point, initial modulus, elastic deformation, plastic deformation and so on; Safety protection measures: limit, over-load, negative force, over-current and over-voltage protections; Force calibration: digital code calibration (authorized code); Unique bidirectional controlling technology to make tests convenient and rapid, abundant and various test results (data report, curve, diagram and form); Standard modular design, convenient to maintain and update.SpecificationItemAT021AAT021BClamping methodManualPneumaticLoad range500cNLoad division0.001cNLoad resolution1/100000Load cell accuracy≤±0.05%F·SLoad precision≤±0.5% when 2%~100% of measuring rangeTest speed2~200mm/min, digitally settable & adjustableExtension resolution0.1mmMaximum extension100mmClamping distance set methodDigital set or auto positionPretension0.1cN, 0.15cN, 0.2cN, 0.3cN, 0.4cN, 0.5cNTwo for eachData storage capacity≥2000timeDimension400×300×550mm (L×W×H)Power SupplyAC220V±10% 50HzWeightApprox. 45kg
