Air Refresher /Perfume/Deodorants / Insecticide Spray Aerosol Tin Can Making Machine Line (N-F-S-S Four Station Combiner)
| US$50,000.00-120,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZS009
Frequency Range
Variable Frequency
Electric Current
AC
Work Form
Necking- Flanging-Seaming- Seaming
Type
Metal Can Forming
Output Capacity
350cpm (Depends on Can Size)
No. of Working Head
6 -10
Transport Package
Standard Export Packaging
Specification
L2200 x W1500 x H2200mm
Trademark
Zonida
Origin
Qingdao, China
Production Capacity
100 Sets Per Year
Product Description
Customer's needs and satisfaction
is what we are constantly creating and pursuing
As the core of 3 piece can production line, the combiner we make wins overwhelming favor from diverse manufacturers of beverage can, food can and aerosol can with the feature of high efficiency, stability and easy maintenance.

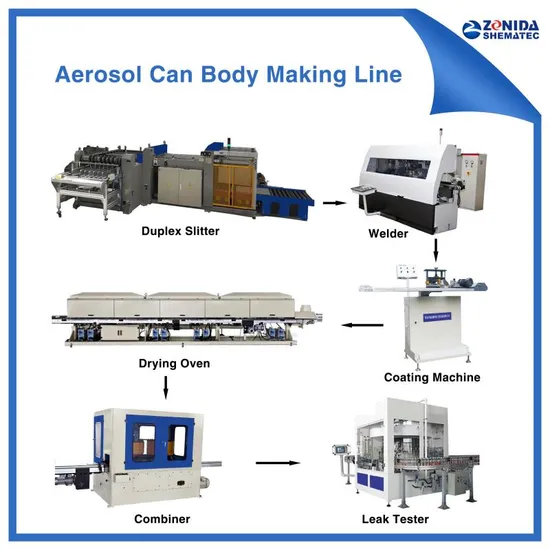

Aerosol Can Production Line
Technical Parameters:
Duplex Slitter:
| Max. Cutting Speed | 1130mm/s |
| Tolerance | ±0.05mm |
| Max. Sheet Feeding Speed | 40 spm |
| Max. Sheet Size | 1140mm×1140mm |
| Min. Sheet Size | 500mm×700mm |
| Max. Sheet Thickness | 0.4mm |
| Total Power | 6kW |
| Power Supply | Three Phase Voltage 380V 50HZ |
| Weight | 6000kg |
| Overall Dimension(L×W×H) | 6970×3000×1700mm |
Automatic Aerosol Can Making Welder
| Max. Welding Speed | 85m/min |
| Max. Output Capacity | 800cpm (Depends on Can Height) |
| Overlap | 0.3-0.4mm |
| Can Diameter | Ф52-Ф153mm |
| Can Height | H70-320mm |
| Sheet Thickness | 0.16-0.3mm |
| Welding Frequency | 200-1000HZ |
| Total power | 150kW |
Lacquering Machine
| Capacity | Up to 20m/min |
| Air Consumption | 0.6Mpa, 20L/min |
| Power | 0.5 kW |
Induction Drying Oven
| Length of Heater | 2 Meter |
| Max. No. of Heater: | 12 |
| Heater Coil | Multi-coil |
| Input Voltage: | 220V ±10% |
| Output Power | 15kW |
| Cooling Water Pressure | 0.05-0.25MPa |
| Induction Distance | 5-20mm |
| Induction Width | 35-40mm |
Four-Station Combiner
| Aerosol Can | Necking-Flanging-Seaming-Seaming |
| Double Necking Food can | Necking-Necking-Flanging- Seaming |
| Triple Necking Food Can | Necking-Necking-Necking-Flanging |
| Output Capacity | 650cpm (Depends on Can Size) |
| No. of Working Head | 6 -10 |
| Sheet Thickness | 0.16-0.18mm |
| Temper | T1 - T4, DR8 or DR9 |
Leak Tester
| Testing Object | Aerosol Can |
| Can Diameter | Ф45-Ф65mm |
| Can Height | H80-320mm |
| Testing Mode | High Pressure |
| Testing Accuracy | 2cc/8bar/min |
| MAX. Speed | 320cpm |
| No. of Working Head | 15-36 |
-Original manufacturer with 24-year professional can making experience.
-Customized Equipments according to customer' requirements, high quality with competitive price.
-Abundant export experience: our products have been exported to Indonesia, Malaysia, Singapore, Mexico, Chile, Canada, Iran, Turkey,Poland, Italy, etc.
-Superior after-sale service: Engineers available to service machinery overseas.
