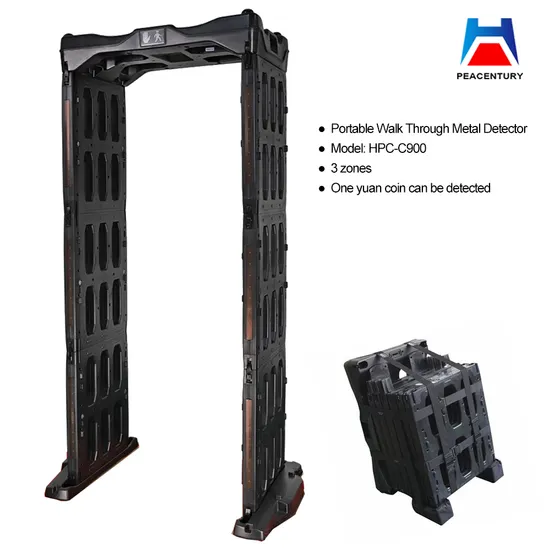

High Quality Convenient Portable Walk Through Metal Detector in China Factory

Product Description

High Quality Convenient Portable Walk Through Metal Detector in China factory

Main features
Multi-brands compatibility	Can be added to existing security checkpoints without having to replace other existing units. Includes multiple channels and 10 selectable operating frequencies.
Optimum performance	Scientifically engineered to meet the needs of airports, courthouses, prisons, schools, facilities, special events, mass transit,and other applications which need security inspection.
Detection performance	The device is portable walk-through metal detector that accurately identifies ferrous and nonferrous weapons utilizing superior target detection.
DSP processing	Digital Signal Processor (DSP) based, the device offers greater sensitivity, noise immunity, metal discrimination, detection uniformity, and overall product reliability. The device pinpoint targets the left, center and right side of the body from head to toe.
Strong anti interference performance	With advanced analogue and digital filtering, the device eliminates potential electrical interference from the environment to ensure detection accuracy. This enables x-ray systems and the device to be placed in close proximity(20CM) to each other.
Tamper-proof	Double access protection.All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock that prevents unauthorized access to physical cables, connectors and electronics.
Coil design	An improved coil design ensures the smallest metals are detected regardless of shape or orientation.
Pacing lights	The device also features pacing lights with symbols "Wait" or "Proceed" for timed precision.
Health care	Harmless for cardiac pacemaker wearer, pregnant women ,magnetic media ,etc.
Technical parameters
Sensitivity	From 0-299, total 300 adjustable levels.
Zone indications	3 independent zones.
Weatherproofing	Meets IP43 standards. For moisture, foreign matter protection.
Overhead control unit	All electronics-LCD, alarm light,LED bar graph, control touch pads-integrated to eliminate wire exposure.
Self diagnostic program	Complete and automatic when power on.
Zone sensitivity boost	Adjustable in 6 level areas.
Battery pack	15 hour backup available.
Warranty	2 years, Limited parts/labor.
Channel dimensions	Width :800 mm. Height: 2100 mm. Depth: 580 mm.
External dimensions	Width :970 mm. Height: 2250 mm. Depth: 580 mm.
Shipping dimensions	1070*690*710 mm.
Shipping weight	Net weight:43KG Gross weight:57KG.
Temperatures operating	-20º C~ +50º C. Humidity to 95% non-condensing.
Temperatures storage	-40º C~ +70º C. Humidity to 95% non-condensing.
External power supply	AC110~240V±20%, 50/60Hz.
Power consumption	30W±10%.
Certificates	Meets electrical safety and compatibility requirements for CE (EMC Directive~ 2014/30/EU and LVD Directive~2014/35/EU Low Voltage), FCC (Directive~Part15B:2012),ROHS (Directive~2011/65/EU).
Control outputs	Solid state switches (low voltage AC or DC) for operating external alarms and control devices.

Functions

1. Easy to install, portable, Assemble/Disassemble in 5 Minutes.
2. Automatically identifies and provides a 3-independent-zone detection upon installation (6 zones is optional)
3. Switching 6 sensor panels right and left in any order
4. Made from strong impact-resistance material of ABS and polycarbonate alloy.
5. Inbuilt super bright LED indicators.
6. Multi-units can work together closely at the same time without interference
7. There is no interference and be able to work normally when stick to large metal or X-ray scanner, no need to reduce sensitivity.
8. Automatic self-diagnostics and self-balancing environment.
9. Automatic passenger and alarm counting.
10. Bright LED to indicate the traffic instructions.
11. Built-in 2 batteries, last 24 hours
12. LCD indicating parameters. 300 sensitivity levels.
13. Harmless to human body, heart pacemaker , pregnant women, magnetic floppy, recording tapes, etc.
14. Conforms to the applicable international standards for electrical safety and CE,ROHS,FCC.
15. PCT international patent and national invention patent certificates are available.
Operating temperature : -20ºC to +70ºC ( -4ºF to +158ºF )
Relative Humidity :95%
UV protection
Fold size: L950XW600XH620mm
Passage size: L810XW790XH2120mm
External size: L810XW1180XH2240mm
Package size: L1065xW675xH705mm
N.W: 35kg G.W: 55kg
Built in backup battery which can last at least 20 hours
