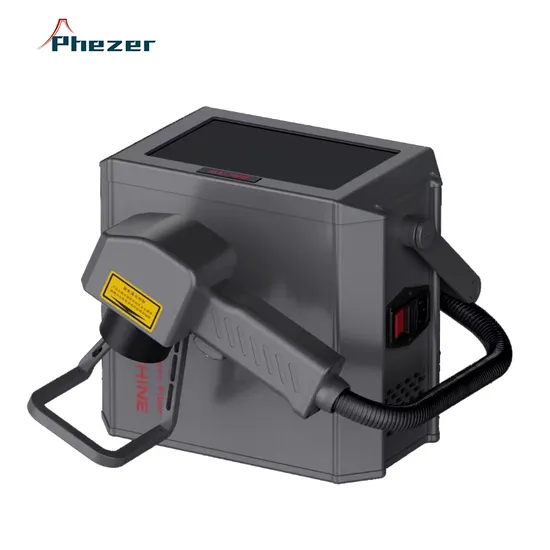

Stainless Steel Bottle Metal Tag Plate Deep Engraving Fiber Laser Machine
| US$1,850.00-2,400.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PL5-PRO
Laser Visibility
Visible
Applicable Material
Metal
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Solid Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Transport Package
Carton / Plywood
Specification
500 x 450 x 400 mm
Trademark
Phezer OEM ODM
Origin
Hubei, China
HS Code
845611
Production Capacity
30, 000 Units / Month
Product Description
Product DescriptionPortable Handheld 20W 30W Metal Pipe Code Logo Steel Sheet Plate Laser Marking Machine
Bottle metal tag deep engraving fiber laser machine
Built-in battery design
Portable and multi purpose
Fast engraving speed
Configurated with Linux system
Red light indication
Battery type for outdoor use
Application Materials
PL5-PRO Portable laser marking machine can work with most metal marking applications, such as
Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials,such as ABS, Nylon, PES, PVC, Makrolon.
| Laser Type | Fiber laser |
| Laser Power | 20W 30W 50W |
| Laser Source | MAX / Raycus / IPG / JPT |
| Laser Wavelength | 1064nm |
| Marking Area | 75*75mm 75*120mm |
| Marking Depth | ≤1.2mm |
| Marking Speed | 7000mm/s |
| Life-span of Fiber Laser Module | 100 000hours |
| Output Power of Laser | 10%~100% continuously to be adjusted |
| Cooling Mode | Air cooling--Built-in |
| Power Input | 220V / 50HZ / single phase or 110V / 60HZ / single phase |
| Communication Interface | USB |
| Machine Dimension/after package | 50*45*40mm |
| Gross weight | 18 kgs |
| Optional | Rotary Device, Moving Table, other customized Automation |
