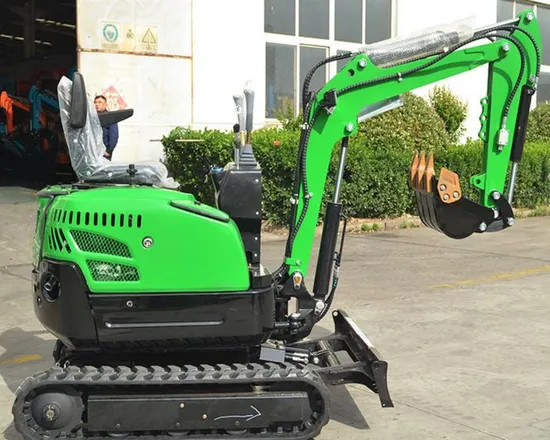

Factory New Good Condition 1 Ton / 1.3 Ton / 1.8 Ton / 2.0 Ton / 3 Ton Cheap Digger Mini Crawler Excavator with Attachment

Product Description

Product Parameters

Performance Parameter
Weight	1000kg
Digging Bucket Capacity	0.025cbm/120kg
Bucket Width	380m
Engine	koop192f
Optional Engine	briggs&stratton Yanmar
Bore Stroke	single cylinder,fan cool
Rated Power	7kw/3000r/min
Main Pump	g5-6
Displacement	6.8ml/r
Swing Motor	sanyang(bmrs-250)
Traveling Motor	sanyang(bmrs-245)
Travel Speed	1.5km/h
Main Dimensions
Overall Dimension (L*W*H)	2775*930*2219mm
Wheelbase	910mm
Total Length Of Track	1230mm
Platform Ground Clearance	380mm
Platform Back Turning Radius	784mm
Chassis Width	896mm
Track Width	180mm
Chassis Ground Clearance	132mm
Track Height	320mm
Operating Range
Max.Digging Depth	1750mm
Max.Vertical Digging Depth	1375mm
Max.Digging Height	2610mm
Max.Dumping Height	1850mm
Max.Digging Radius On Ground	2850mm
Min. Rotation Radius	1330mm
Max.Upgrade Height Of Bulldozer Blade	345mm
Max.Digging Depth Of Bulldozer Blade	255mm

Available Accessories

Product Description

Certifications

FAQ

Q1. Are you a manufacturer?
A: Yes, we are a factory with more than 3 years of manufacturing experience.
Q2. How can we guarantee quality?
A: There will be a pre-production sample check before mass production and a final inspection before shipment.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?
A: Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the quantity of your order.
Q5. How much is the freight fee?
A: We will confirm the freight cost based on the size of the model, packing, transportation method, and delivery terms.
Q6. What are your terms of packing?
A: Generally, we use standard exported wooden cases for LCL goods and fixed well for FCL goods.

Q7. Can you customize or support ODM/OEM?
A: Yes, with sufficient quantities, we can customize unique designs and colors for you.
Q8. How do you make our business a long-term and good relationship?
A: We keep good quality and competitive prices to ensure our customers' benefits; We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
