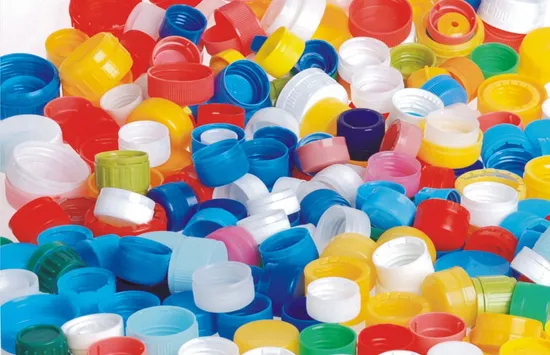

Plastic Injection Bottle Cap Mould
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
12 Cavities
Plastic Material
PE
Application
Household Appliances
Runner
Hot Runner
Certification
ISO
Customized
Customized
After-sales Service
Engineers Available to Service Machinery Overseas
Number of Cavity
12 Cavities
Price/Performance Ratio
High
Delivery Date
40 Days
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Transport Package
Wooden Packing
Specification
12 cavities
Trademark
ZQ
Origin
Taizhou, China
Production Capacity
40 Sets/Month
Product Description
Plastic Injection Bottle Cap MouldHot Runner Cap Mould has following strongpoints:
1. With pneumtic valve gate system.
2. Optimal cooling design and all the cooling system are Nickel plated.
3. All the components can be interchangeable.
4. Mirror hand polidhing for the core and cavity.
5. Adopted temperature controller. Temperature of the cap is controlled point by point.
6. The material of corn and cavity are made of #2316 stainless steel. Other parts are made of #P20 steel.
Plastic Injection Bottle Cap Mould apply to Injection molding machine,equipment information.
| INJECTION MOLDING MACHINE | ZQ88-M6 | ZQ128-M6 | ZQ168-M6 | ||||||
| International size rating | 275/88 | 416/128 | 619/168 | ||||||
| INJECTION | A | B | C | A | B | C | A | B | C |
| Shot volume cm3 | 129 | 163 | 201 | 215 | 263 | 316 | 291 | 349 | 463 |
| Shot weight g | 121 | 153 | 189 | 196 | 239 | 287 | 273 | 328 | 435 |
| (PS) oz | 4.2 | 5.4 | 6.6 | 6.9 | 8.4 | 10.1 | 9.6 | 11.5 | 15.2 |
| Screw diameter mm | 32 | 36 | 40 | 38 | 42 | 46 | 42 | 46 | 53 |
| Injection pressure Mpa | 214 | 169 | 137 | 193 | 158 | 132 | 190 | 169 | 120 |
| Screw L: Dratio ----- | 23:1 | 20:1 | 18:1 | 22:1 | 20:1 | 18:1 | 23:1 | 20:1 | 18:1 |
| Screw stroke mm | 160 | 190 | 200 | ||||||
| Screw speed (stepless) r/min | 0-215 | 0-220 | 0-234 | ||||||
| CLAMPING SYSTEM | ZQ88-M6 | ZQ128-M6 | ZQ168-M6 | ||||||
| Clamping force KN | 880 | 1280 | 1680 | ||||||
| Opening stroke mm | 320 | 380 | 430 | ||||||
| Platen size mm×mm | 550×550 | 620×620 | 700×700 | ||||||
| Space between tie bars mm×mm | 360×360 | 410×410 | 460×460 | ||||||
| Max.daylight mm | 680 | 810 | 930 | ||||||
| Mold thickness (Min-Max) mm | 150-360 | 150-430 | 180-500 | ||||||
| Hydraulic ejection stroke mm | 100 | 125 | 140 | ||||||
| Hydraulic ejection force KN | 31 | 42 | 50 | ||||||
| POWER UNIT | ZQ88-M6 | ZQ128-M6 | ZQ168-M6 | ||||||
| Hydraulic system pressure Mpa | 16 | 17.5 | 17.5 | ||||||
| Pump motor KW | 7.5 | 11 | 15 | ||||||
| Heating capticy KW | 6.5 | 8.9 | 9.8 | ||||||
| Number of temp control zones | 3+(nozzle) | 3+(nozzle) | 3+(nozzle) | ||||||
| GENERAL | ZQ88-M6 | ZQ128-M6 | ZQ168-M6 | ||||||
| Dry-cycle time Sec | 1.1 | 1.3 | 1.8 | ||||||
| Oil tank capacity L | 200 | 220 | 300 | ||||||
| Machine dimensions(LxWxH) M x M x M | 4.42x1.07x1.72 | 4.86x1.09x1.75 | 5.04x1.17x1.97 | ||||||
| Machine weight Kg | 3500 | 4000 | 5000 | ||||||
Note: The specifications are subject to change without notice for the further improvement.
