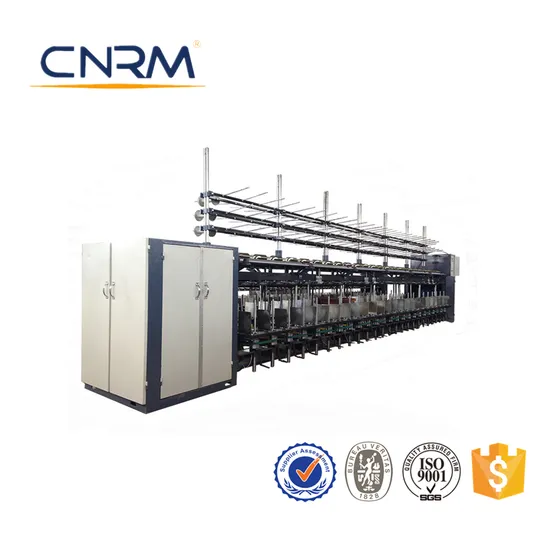

High Speed Two for One Yarn Compound Twisting Machine

Product Description

Rope PP Filament Yarn Twisting Machine
Rope PP Filament Yarn Twisting Machine
Cotton Yarn Twisting Machine has wide application scopes,modern design,big take-up amount,high speed.It is easy to operate and maintain,low noise and power consumption.It's a high efficiency and output machine with twisting and stranding. It has the mechanism with planetary direction exchanging ,stranding and twisting of the twine can be finished in one time.It's suitable for primary twisting and re-twisting of all kinds of PE twine,PP twine,PET twine,nylon twine,cotton twine and twisted ropes in small size.

Machine Name
Item	HDRT-721A	HDRT-721B	HDRT-722	HDRT-723
Quantity of spindle	160(adjusted)	120(adjusted)	40(adjusted)	12(adjusted)
Lifting movement of traveler ring	203mm	205mm	300mm	300mm
Speed of spindle	3310-6760rpm	2800-5730rpm	1800-2800rpm	1800-2100rpm
Dia of roller	51-57mm	51-57mm	57mm	57mm
Distance of spindle	140mm	186mm	280mm	375mm
Power of motor	11KW	15KW	15KW	7.5KW
Dia of traveler ring	100mm	140mm	204mm	254mm
Twisting direction	Z or S	Z or S	Z or S	Z or S
Overall dimension	13.5*1.13*2.15m	13.5*1.13*2.15m	7.07*1.58*2.27m	5.95*1.1*2.2m

Detailed Images
Cotton Yarn Twisting Machine
Our Company
CNRM has achieved industrialization and large-scale production from the research and innovation with 10 years' experience in the rope and net machinery field. Our rope and net machinery mainly includes: extruder, ring twister, twisted rope making machine, braided rope machine, ball winder, spool winder, coiler machine, hank winding machine and package machine and more than 10 kinds series production; Our product performance has reached international and domestic advanced technology level with unique design concept, advanced manufacturing technology, perfect quality guarantee.

Successful Cases

After-Sale Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery
