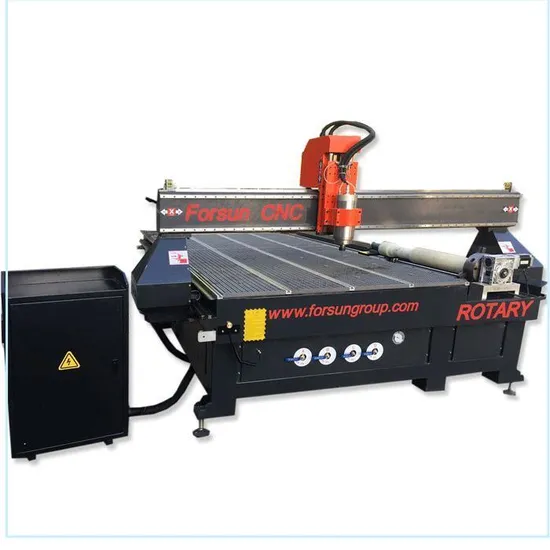

DIY Mini 3 Axis 4 Axis CNC Router Machine Mini CNC Router 6090 Rotary Axis CNC Engraving Machine

Product Description

DIY Mini 3 axis 4 axis CNC router machine mini cnc router
6090 rotary axis cnc engraving machine
What is the Feature of Rotary cnc router Machine?
♦ working area: 1300*2500*200mm
♦ Heavy duty thicken machine body
♦ 3.0kw water cooling spindle
♦ Stepper motor and Leadshine Driver
♦ DSP Controller system
♦ HIWIN Linear Guide Rail
♦ Helical Rack and Pinion
♦ 200mm diameter rotary
♦ Plywood package
♦ warranty : 1.5 years
What is the Optional parts of Rotary cnc router Machine?
♥ AC Servo motors
♥ Japanese Shimpo Reducer
♥ Mach3 control system
♥ Dust collector system
♥ Oil mist cooling system
♥ Safety Light Curtian
Technical data of Rotary CNC Router Machine

Name	Specification
Working Area(X*Y*Z)	1300×2500*200mm
Machine Structure	Welded
X Y Z Guide Rail	Taiwan HIWIN Square Rail
X Y Z Transmission	Helical Rack and Pinion for X,Y axis TBI ball screw for Z axis
Motors	Stepper Motor (Optional Servo )
Control System	DSP controller system
spindle	water cooling spindle
Processing precision	±0.03mm/300mm
Max processing speed	45000mm/min
Max travelling speed	25000mm/min
rotary	200mm diameter rotary

Our Advantages
What's the advantage of our Rotary CNC Router Machine?

1. Spindle	3.0KW Water Cooling Spindle. Famous brand CS made in china, low noise. Spindle speed: 0-24000rpm Two spindles have higher efficiency
2. Inverter	BETA Inverter, Fuling brand It can output 150% of rated torque at zero speed, and it can have "point to point" and relative distance control functions for position control.
3. Motor	450B stepper motors With high quality & stronger power, ensure machine work very well.
4. Driver	Leadshine 860H Drivers It can run with smaller noise, lower heating, smoother movement and have better performances at higher speed.Save human strength and save time.
5. rotary	200mm diameter rotary Can work on a cylinder, can be processed material diameter 0-300mm
6. Control system	DSP Control System USB connect,can be use without computer.

Installation Instructions
What's the benefit of our Rotary CNC Router Machine?
1. Furniture industries: cabinet doors, wooden doors, solid woods, antique furniture
2. Decoration industries: screens, wave boards, advertising boards and sign making
3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles
4. Processing material: engraving, milling and cutting processing for acrylic, PVC,
artificial stonesplastics and soft metal sheets such as copper and aluminum.
5. with rotary can work on a cylinder
Packaging & Shipping
Our Service
What services are provided for our Rotray CNC Router Machine?
Guarantee:
1.5 years for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1. Technical support by phone, email, WhatsApp, Wechat or Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by
Benefits
Customer visit
FAQ
What do customer usually ask about Rotray CNC Router Machine ?
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
