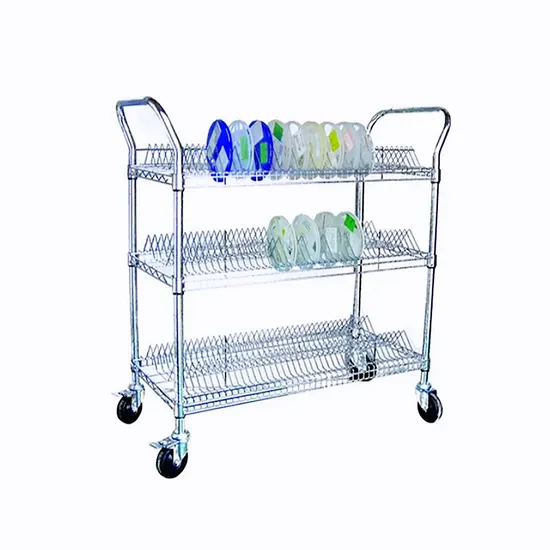

ESD Safe Anti-Static Trolley for PCB and SMT Materials
| US$50.50-66.50 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
SK90
Usage
SMT Production Line, Printing Workshop, Computer Room, Electronic Component Maintenance Room, Combustible & Explosive Area
Color
Silver
OEM
Yes
Weight
20kg
Wheel
Four-Wheel
Size
90*45*104cm
Condition
New
Waterproof
Waterproof
Type
ESD Cart
Transport Package
92*46*16cm *2
Specification
three layers
Trademark
ANTISK
Origin
China Dongguan
HS Code
73089000
Production Capacity
30000PCS/Month
Packaging & Delivery
Package Size
98.00cm * 47.00cm * 33.00cm
Package Gross Weight
20.000kg
Product Description
Product DescriptionSMT material tray truck, also known as anti-static material tray truck, SMT material truck, SMT material tray rack, SMT material tray turnover truck, etc. Mainly used for SMT manufacturing production line material tray transportation and storage.
| Components | Mainly composed of single peak and double peak mesh, pillars, clips, wheels, conductive chains, etc. |
| Material | Made of carbon steel wire or stainless steel 304 wire raw materials, with wire diameters of 3.5mm, 4.5mm, 5.0mm, 6.0mm, pillar diameter of 25.4mm, thickness of 1.4mm, and installed in combination with plastic and metal clips. |
| Structure | The mesh is divided into two types: single peak and double peak. The mesh is fixed to the pillar (bamboo shaped) through clip support, and at least one pair is installed on each layer Metal clips to ensure smooth conductivity. The four wheels of the material reel are divided into two types: movable wheels and brake wheels, and anti-static wheels and PU wheels. Install metal conductive chains on the bottom layer to ensure grounding. Cars can be divided into pillar type and U-shaped armrest type according to their height or number of floors. Pillar type mesh has more layers and can support Large load capacity; The U-shaped armrest has fewer layers and is easy to push and pull. |
| Optional Configuration | 1. The number of layers for installing the mesh and the selection of single and double peaks depend on the size and storage quantity of the user's own tray. Single peak is suitable for storing large trays, while double peak is suitable for storing small trays. 2.For pillar type pallets with multiple layers, for the convenience of pushing and pulling, a directional handle can be installed on one side of the pillar of the vehicle. 3. Users who do not require frequent movement or fixed storage can use it as a material rack without the option of wheels. 4. If needed, users can add flat mesh. 5. The cost of carbon steel chrome plated material is lower, while the cost of stainless steel material is higher. |
| Performance | 1. It has conductive and shielding anti-static functions. 2. Users can install single peak and double peak positions according to their own needs, and the spacing between each layer can be adjusted freely. 3. The material tray is easy to access in an orderly manner, preventing incorrect materials and improving production efficiency. 4. Good load-bearing capacity and stability. 5. As the car is equipped with brake wheels, the wheels will be locked after movement to ensure safety and fixation. |
| Specifications | 450mm (W) * 900mm (L) * 940mm (H). 450mm (W) * 900mm (L) * 1600mm (H). 450mm (W) * 1200mm (L) * 1600mm (H). It can also be customized according to user requirements. |
