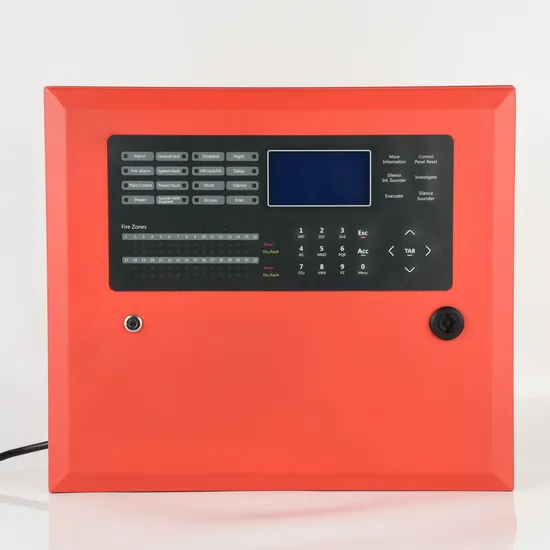

Addressable Fire Alarm Control Panel Alarm Host

Product Description

Specification:

Product Name:	Addressable Fire Alarm control panel System	Main power supply:	AC110V-250V/2A,50Hz
Battery power supply:	DC 24V (2 x 12V≤10AH)	Product capacity:	1/2 loop
Loop capacity:	Each loop up to 240 pcs smoke detector, heat detector, call point, input module,output module,sounder. ext.	Maximum number of zone:	32
charging current:	<1A	Maximum loop current:	200mA
output:	one 1A/24VDC auxiliary power	The maximum of action logic	32
Dimensions:	380.2 x 99.5 x 330mm	Standard	Comply with the standard: EN54-2,EN54-4

Fire Detection Alarm System

Main functions:
TP1002 series two-loop intelligent panel has two loops, which supports two device protocol. One is Sentek's protocol and the other is APOLLO xp95 device protocol. Sentek's device protocol capacity is 240, APOLLO xp95 device protocol capacity is 126. the panel has a passive general fault output , three programmable 24VDC active output, and a 24VDC auxiliary output. The screen of the panel is liquid crystal, and different kinds of information distinguish priority. Fire alarm has the highest priority and the lowest priority for disable information. Every type of information can be queried. Fire alarm and fault indication of 32 zones adopts LED. Various states also use LED indicate. Historical event records classify storage and display. It can store 2000 fire alarm records, 2000 early warning records, 2000 action records, 2000 fault records and 1000 operation records. The panel has an RS232 interface that can connect to the computer. Users can install our company's corresponding software to easily configure the panel and view various information. The power supply of the panel is divided into 220VAC and standby power supply. Under the normal state, the backup power supply is charged. When the main power break off, switch to the backup power supply automatically .
