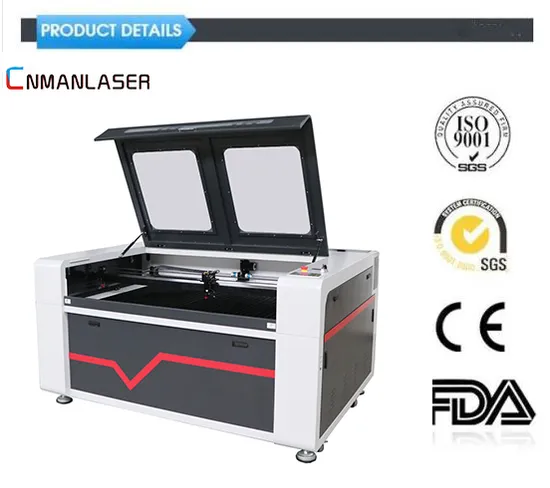

CCD Hot Sale CO2 Laser Engraver MDF Wood Acrylic Leather Felt Laser Engraving Machine

Product Description

CCD Hot Sale CO2 Laser Engraver MDF Wood Acrylic Leather Felt Laser Engraving Machine
MAN-100W
Introduction:
This model laser engraver cutter machine is based on various types of customer requirements, combined with our many years of equipment production experience, the use of a variety of advanced technology and special design, to achieve the perfect unity of the two functions of sculpture and cutting.
The co2 laser engraving cutting machine runs fast with simple operation and low cost; Theengraving effect is good, no burr on the cutting edge, no secondary grinding, less cutting waste, carving depth of the best laser engraving machines can be adjusted independently and with high precision.
Application:

The industrial laser engraving machine is widely applied in garment materials,advertising,wood materials,etc. nonmetal materials.
1. Garment materials: textile carving, leather carving and cutting, cloth carving, shoe carving, fabric carving,denim carving, toy cutting, wool cutting,carpet carving and cutting, denim carving and cutting.
2. Advertising material: such as plastic engraving and cutting, acrylic engraving and cutting,PVC plate engraving and cutting, rubber plate engraving, organic glass engraving, seal engraving,organic glass engraving, granite carving, plastic engraving,marble engraving, Paper carving and cutting,EVA material carving.
3. Wood materials: MDF carving,wood carving and cutting, plywood cutting.
nonmetal Laser Cutting Machine Data:

Working Area	1300× 900mm	1600× 1000mm	1300× 1800mm	1300× 2500mm	1600× 2600mm
Laser Power	60W / 80W / 100W / 120W / 150W
Laser Type	Hermetic and Detached Co2 Laser Tube
Engraving Speed	1-60000mm/min
Cutting Speed	1-10000mm/min
Repeat Location Accuracy	± 0.0125mm
Laser Power Controlling	1-100% Manual Adjustment and Software Controlling
Voltage	220V(± 10%) 50Hz
Cooling Mode	Water Cooling and Protect System
Cutting Platform	Professional Thickening Strip or Honeycomb Work Table
Controlling Mode	CNC Professional Control System
Support Graphics Formats	BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT
Power Controlling Mode	Laser Energy Combining Movement Control System
Control Software	Original Laser Engraving & Cutting Software

Main Features:

1. High-speed inner slide: the cutting speed of this laser engraver cutter machine is very fast, greatly improving work efficiency.
2. Convenient operation interface: Advanced LCD screen, the laser engraver cutter machine supports PC and USB2.0 ports, DSP offline control system, the user interface is good, easy and simple.
3. Cover protection: sealed chassis design of the co2 laser engraving cutting machine to ensure the safety of processing environment, a unique cover protection design to ensure that operators open the laser engraver cutter machine cover, the laser power supply to suspend work, to protect the safety of the operator.
4. Visualization working path: The laser is invisible light, in order to let the operator more specifically process the concrete place, the industrial laser engraving machine adopts the red light indication method to realize the precise positioning of the laser beam.
5. Optional electric lifting platform: up and down to adjust the working height of thebest laser engraving machines, to meet the processing requirements of different thickness of the object. At the same time optional knife working table of the co2 laser engraving cutting machine is suitable for different processing materials.
6. Drawer ladder design: it is easy for the best laser engraving machines to collect and obtain the cutting object.
1) Free Training by VCD:We will supply the machine with <Training VCD> , <User's Manual> and <Instruction Book> in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by E-mail, fax, telephone, MSN, ICQ and so on, when you meet some problems of installation, using or adjusting.(Recommend)
2) Free Training Factory:You can send operator to laser marker factory for free training. Laser marker will offer professional guide for free.It is direct and effective face-to-face training.Here we have well-assembled equipments, all sorts of tools and testing facility.
Training Time:2-3 days (Recommend)
3) Our engineer can do a door-to-door instruction training service at your local site.We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch.It's better to arrange a translator for both of our engineers during the training period.
Quality Guarantee and After-sales Services:
1)The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination.Except the damage artificially and laser krypton lamp, we are responsible for offering the fittings free of charge during the guarantee period.While user is kindly requested to send the damaged fittings to us by courier with your charge before we send back the alternative fitting parts.After the guarantee of quality period, the parts required repairing or change, if any, shall be reasonable charged.
2)We will give technical guide by email, fax and telephone when user meets some problems on installation, operation, adjusting, maintaining.
3)We offer technical supporting to ensure safety using & maintenance for user:
Operation manual for installation, adjusting, operation, maintaining;
Professional marking software;
Operational marking software backup;
Quick supplement of key componentsUU with reasonable price.
Life-long after-sales service & consulting service to user.
