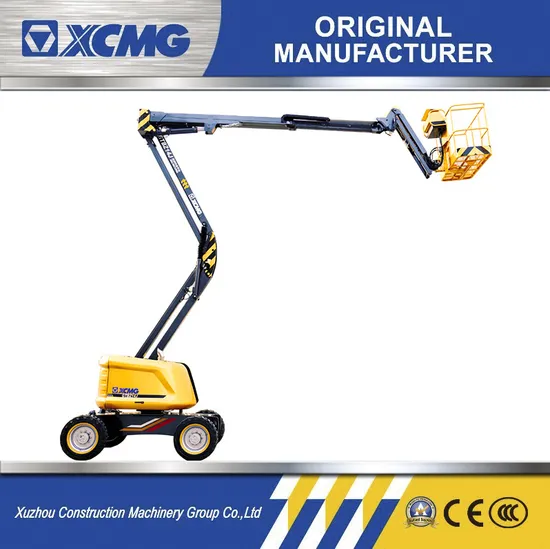

XCMG Factory Gtbz14jd Used Self Propelled Hydraulic Mobile Articulated Boom Lift 14m Aerial Working Platform with CE Price

Product Description

XCMG factory GTBZ14JD used self propelled hydraulic mobile articulated boom lift 14m aerial working platform with CE.
14m-level articulated boom aerial work platform aiming at meeting customer demand has intelligent and perfect control system, adopts humanized layout and lubrication-free design, is easy for use and maintenance and provides comprehensive safety protection and abundant configuration options. (1) Flexibility and efficiency
"Σ-type"double link jib has characteristics of compact structure and flexible extension, which can achieve vertical lifting and horizontal extension and has very strong obstacle climbing ability;180° rotatable platform provides bigger operation range; Narrow-type rotary table with compact structure canachieve"zero tail wagging"and improve operation efficiency
(2) Super strong site adaptability
Cross-country type chassis,four-wheel drive system, pouring-type cross-country wide tyre,full-time axle balanced system and 38kw strong power are configured so that the equipment has excellent terrain adaptability.
(3) Advanced performance, safety andreliability
Full-range operation, visual and friendly control panel and easy operation; Electro-hydraulic proportional system control is accurate and efficient. Protective measures such as chassis incline protection, platform overload alarming, emergency landing,safety speed limit, flexibility start-stop technology, etc. are provided.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
Product Parameters

Description	Unit	Parameter value
Overall length	mm	6420
Overall width	mm	1750
Overall Height	mm	2000
Overall dimension of work platform	mm	1400×770×1150
Maximum speed	km/h	5.2
Max. grade ability	%	≥30
Minimum outside turning radius	m	≤3.2
Ground clearance (center)	m	0.21
Wheel base	m	2
Total mass	kg	6500
Rated working height	m	15.5
Max. platform height	m	13.8
Max. working radius	m	8
Maximum span clearance height	m	7.03
Elevating range of No. 1 arm	°	0-60
Elevating range of No. 2 arm	°	-83
Elevating angle of crank arm	°	-140
Platform swing angle	°	180
Slewing angle		360° discontinuous slewing
Gyration radius of turntable	m	0.875
Maximum mass	kg	230
Max. tail swing	m	0
Control system		12V DC proportional control
Tire		250-15 solid tire, 240/55 D17.5 optional, traceless tire can be selected
Power source		420 Ah/48 V DC
Power unit		4 kw/48 V DC
Auxiliary power unit		2.2 kw/24 V DC
Walking motor		3.3 kw/32 V AC
