Galvanized Sheet Metal Duct Making Machine / Duct Manufacture Auto Line

Product Description

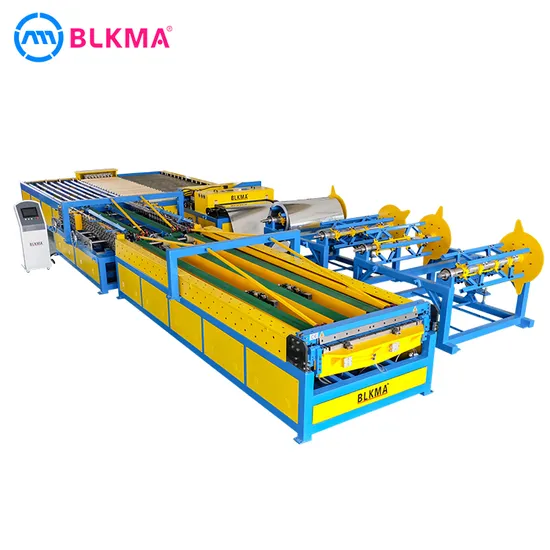

galvanized sheet metal duct making machine / duct manufacture auto line

U shape auto duct line 5 is mainly for TDF/angle steel duct processing with daily working capability of
1000-2500 square meters. The production line can automatically complete uncoiling, leveling, beading,
angle punching, shearing, locking, TDF forming and folding.

Main importeded Configuration:	Basic Configuration:
1. Beijing Huade + Taiwan hydraulic system 2. Japan Mitsubishi CNC system 3. Japan Omron encoder 4. Taiwan Hiwin linear guideways 5. Schneider electrical system	1. Two electric coil cradles, 4 material trays (7 t each roll) 2. One rack 3. One host (line 2 host) 4. Two stainless steel roller convey platforms 5. One fixed joint locking machine 6. One duplex TDF flange forming machine 7. One duplex angle steel flange forming machine 8. One servo feeding platform 9. One hydraulic folding machine 10. One set of computer controlling system

Main Technical Parameters:

Model	Sheeting thickness (mm)	Max width (mm)	Max working speed (m/min)	Max weight of coil (T)	Dimension L*W*H (mm)	Power (kw)	Weight (T)
ADL-5U-1300	0.5-1.2	1300	15	7	12000*5500*1500	30	13
ADL-5U-1500	0.5-1.2	1500	15	7	12000*6300*1500	30	14

Detailed Images:
Working Schematic Diagram & Working Flow:
