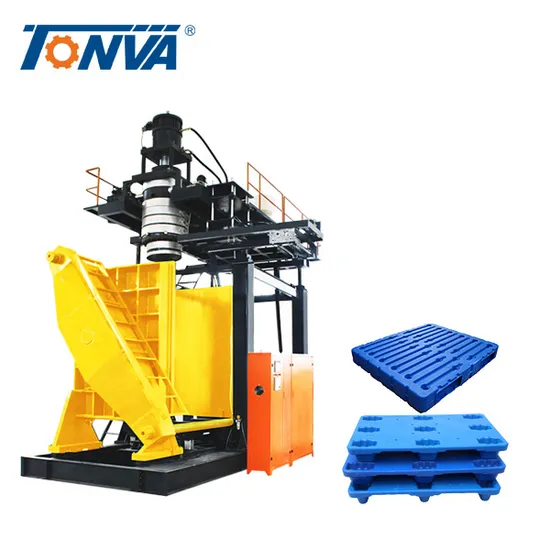

Accumulator Type Extruder Making Machine Plastic Pallet Machine

Product Description

Machine Description TVA Accumulator type die head blow molding machine
"A" SERIES ACCUMULATOR TYPE TECHNICAL CHARACTERISTIC
- Accumulator die head capacity from 30kg to 52kg.It is widely used in pallet,road barrier, Recreation facilities, hollow desk board, and other large and medium-sized plastic hollow products
- Accumulation head "First in first out",
- Adopts accumulator die head,with high quality nitrogen treatment and hardness of surface,resulting smooth flow and quick parison ejection;
- No. of layer: 1 up to 3layers
- Adopts two pull-rod type closing-mold device by rack and pinion system
- MOOG 100point parison controller
General Information
1. Appliction: plastic pallet upto 1600*1600*150 mm, with layers 1 to 3.
2. Production Technology: Blow Molding.
3. Raw Material: HDPE, HMW-HDPE
4. Manpower: 2 - 4 workers for one production line.
5. Output: 10-12 pcs/H in szie 1200*1000*150mm
6. Static load: 5 to 6 tons Dynamic load: 1.5 to 2 tons

Commodity	Specification	Moulds Weight (T)	Output (pcs per hour)
Pallet Blow Mould	800x800x150	4	16
	800x1000x150	4.5	16
	1000x1000x150	5.8	15
	1000x1200x150	6.5	15
	1100x1100x150	7.2	15
	1100x1300x150	8	14
	1200x1400x150	8	14
	1300x1500x150	9	14
	1400x1600x150	9	13

Mould Design Group
Our Company
Welcome to TONVA Plastics Machine Co.(Taizhou City),ltd:
Main Business
1) TONVA Extrusion blow molding machine, 3ml-5000L hollow plastic products
2) YAOVA PET bottle blowing machine, fully or semi automatic, 10ml-30L plastic products
3) Blowing mould & Injection mould
Company
1) Set up in 1993
2) Run business home and abroad
3) Own machine workplace and mould plant
4) Provide turn-keys system
5) Approx 200 employees
Core Values
1) Competitive and experienced
2) Focus on specific needs of customer
3) Global after sales service
4) Brand new and efficient machinery
5) Deep knowledge of blow moulding process
Contact Us
Please contact us for more specification of machine!
