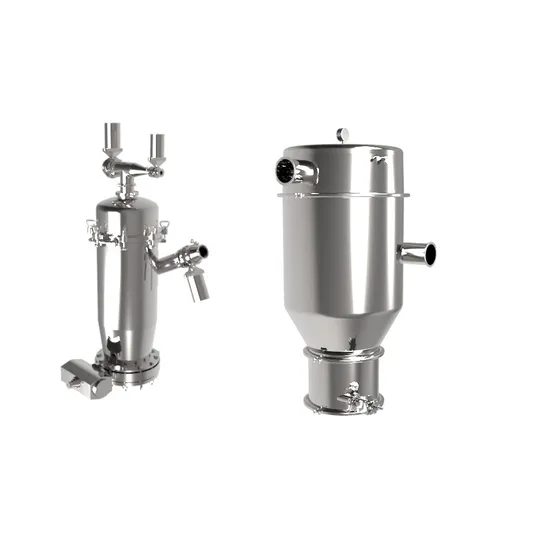

Vacuum Conveyor for Powder and Bulk Sugar/Flour/Starch/Grain in Food Industry

Product Description

Product Description Vacuum negative pressure transportation is the use of air pressure difference to form a strong airflow in the conveying pipeline. Under the action of this strong airflow, the material is instantly transported through a closed pipeline to the other end of the container, completing the transportation of the material.
The vacuum suction machine is made of stainless steel material, which meets the strict requirements for pharmaceutical and food production.
Vacuum suction machines are particularly suitable for powder conveying, such as flour materials. Manual handling not only has slow efficiency, but also can cause powder to fly everywhere. The mover needs to be fully equipped with masks, hats, and other equipment to reduce powder inhalation into the body. The advantages of using an automatic conveyor are fully demonstrated in this, not only can it maintain environmental cleanliness, but it can also quickly complete the conveying and improve work efficiency.

Product Parameters

Model Parameter	QXL-200	QXL-300	QXL-400
Valume(L)	13	38	68
Power(W)	200	200	200
Compressed air consumption/pressure(L/min)/MPa	50/0.6	80/0.6	100/0.6
Vacuum pumping interface	Quick installation1.5inch	Quick installation2.5inch	Quick installation3.5inch
Feeding interface	Quick installation1.5inch	Quick installation2.5inch	Quick installation3.5inch
blow back interface	Quick installation1inch	Quick installation1inch	Quick installation1inch
Production capacityKg/h	50-900	300-2500	600-3500
Weight(Kg)	72	96	125
Overall dimensions(mm)D×H	φ350×1100	φ450×1300	φ480×1400

Notice:
1,not containing the power of matched vacuum pump and its electrical appliances.
2,not containing the consumption of compressed air which used by vacuum generator.
3, This parameter assumed on the condition of ≤5meter's distance when the flour is conveying.
Main Structures;

Product Features
During the feeding process of the vacuum suction machine, the raw materials are completely free from moisture, pollution, foreign objects, and leakage, achieving self transportation of the feeding process, avoiding the danger of high-altitude feeding, reducing labor intensity, and improving production efficiency.
There are various models of vacuum conveyors to choose from: small vacuum feeding machines, high-temperature resistant vacuum feeding machines, continuous vacuum feeding machines, and negative pressure conveying stations can also be designed according to needs.
·Unique flat membrane filtration system
·Online cleaning, drying, and sterilization without disassembly
·Closed transportation to prevent environmental pollution
·Complies with GMP requirements, material is 304 or 316L
In-Service
Advantages of Vacuum conveyor
1. Closed transportation, no dust leakage, no cross contamination;
2. Comply with GMP standards, meet CIP requirements, and provide sterile products;
3. Modular design, eliminating dead corners, quick and convenient disassembly and cleaning;
4. Effectively solve the layering phenomenon of powder particles;
5. Effectively eliminate material static electricity, without causing pollution to the surrounding environment;
6. Automatic control, simple and convenient operation;
7. No heat generated during work, safe and explosion-proof;
8. No vibration, low noise, high performance, energy-saving, and low operation and maintenance costs.
