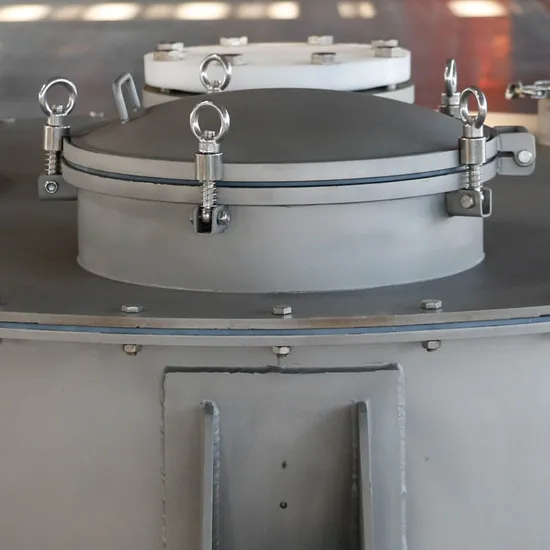

The Metering Bin Is Used for Conveying Powder Particles
| US$700.00-4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
metering bin
Condition
New
Customized
Customized
Certification
ISO9001, TUV
Tank Marerial
Metal Tank
Type
Tank Container
Storage Objects
Solid, Liquid
Application
Battery Material,Chemical Industry
Product Type
Weighing of Ingredients
Material
Carbon Steel/SUS304/SUS316/Ti
Product Name
Feed Bin
Function
Weighing and Conveying
Usage
Powder Particles
Operation Method
Automation Control
Feature
High Efficiency Low Cost
Advantage
Material Unobstructed Transportation
System Characteristics
High Feeding Accuracy
Transport Package
Wooden Box
Specification
customizable
Trademark
Manguo
Origin
China
Production Capacity
500pieces/Year
Product Description
· Principle of Operation1.Materials and air are conveyed into the feeding bin through the duct. The dusty gas is filtered out by the dust collection device and discharged into the atmosphere. Most of the materials fall to the bottom of the feeding bin by their own weight. A small part is cleaned up by vibration of the dust collection back-blowing device and falls to the bottom of the silo.
2.According to the electrical control program, the powder is transported to the next process in an orderly manner through the pneumatic powder disc valve - pipe flexible connection according to the plan.
3.For materials due to agglomeration characteristics of caking, arching, bridging, blockage and other problems caused by poor material transport, the use of activation hopper, pneumatic knocking hammer, broken arch air disc, internal increase in the form of mixing and other multi-combination effect, in order to achieve unhindered material transport.
(The above actions are controlled electrically and automatically)
· Customer Photos
