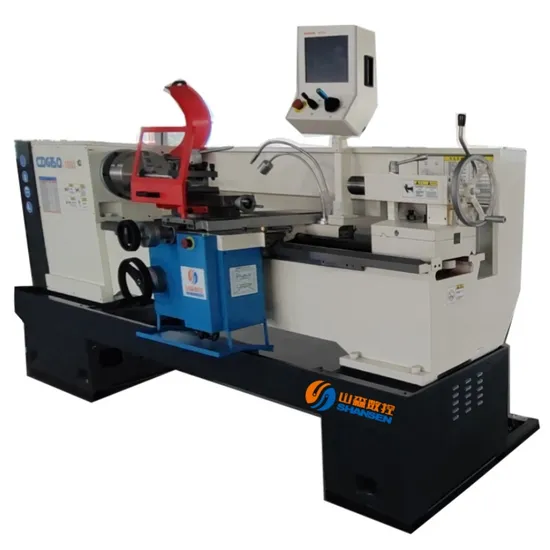

Factory Direct Sales Advanced Electronic Lathes, Integrating Conventional Lathes with CNC Lathes.
Basic Info.
Model NO.
CD6150-1500
Type
Horizontal Lathe
Processing Accessory
Chuck Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Four-Station Tool Holder
Power Source
Servo Motor
Controlling Mode
Lathe Controller
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Model No.
CD6150-1500
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventio
Processing Precision
0.01~0.02(mm)
Numerical Control
CNC/Mnc
Swing Over Bed
500mm
Swing Over Carriage
290mm
Center Height
250mm
Max. Workpiece Length
1500mm
Max. Processing Length
1450mm
3-Jaw Chuck Diameter
250mm
Packing Size
3150*1400*2100mm
Transport Package
Box
Specification
Product size2930/1145/1740mm
Trademark
SHANSEN CNC
Origin
Tengzhou, Shandong, China
HS Code
84581900
Packaging & Delivery
Package Size
3150.00cm * 1400.00cm * 2100.00cm
Package Gross Weight
2200.000kg
Product Description
SHANSEN Product Description
| ltems | Unit | MOdel CD6150-1500 |
| Swing over bed | mm | 500 |
| Swing over carriage | mm | 290 |
| Center height | mm | 250 |
| Max. workpiece length | mm | 1500 |
| Max. processing length | mm | 1450 |
| 3-jaw chuck diameter | mm | 250 |
| Speed ranges | rpm | 16-1600 |
| Spindle bore | mm | 82 |
| Spindle taper | mm | Metric90 |
| Spindle nose | C8 | |
| Top slide travel | mm | 150 |
| Cross travel (X axis) | mm | 260 |
| Longitudinal travel (Zaxis) | mm | 1500 |
| Number of stations | 4 | |
| Tool shank size | mm | 25*25 |
| Quill travel | mm | 160 |
| Quill diameter | mm | 75 |
| Quill taper | MT5 |
SHANSEN Company
| Founded in 2001, Shandong SHANSEN CNC Technology Co., Ltd. is the vice chairman of China CNC System Association, the chairman of Tengzhou City Machinery Industry Association, the specialized, high-end and innovation-driven little giant, the national high-tech enterprise, the double soft enterprise, with a strong R&D team, complete technical equipment and technology means. We have been operating according to ISO9001 quality management system and strictly implementing 6S site management. Up to now, we have 80,000 square meters of factory buildings, with an area of 180mu. The company's main products include: CNC system, human-machine interface, Intelligent Circuit Board, oil mist collector, safety door switch, relay module, cable separator module, hand-held pulse generator, cable harness, warning lights, LED work lights, electronic lathe and so on, counting up to more than 20 kinds of products. |
FAQ
1.Q: Are you a factory? A: yes, we are. and we have 25 years production experience and over 10 years export experience. you can get our good quality and service and competitive price. 2.Q: How long is your delivery time? A: Generally it is 5-15 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, it is according to quantity. 3.Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. 4.Q: What is your terms of payment ? A: Payment<=20000USD, 100% in advance. Payment>=20000USD, 60% T/T in advance ,balance before shippment. 5. Q:What can you buy from us? A: The company's main products include: CNC system, human-machine interface, Intelligent Circuit Board, oil mist collector, safety door switch, relay module, cable separator module, hand-held pulse generator, cable harness, warning lights, LED work lights, electronic lathe and so on, counting up to more than 20 kinds of products. Please contact us if you do not find the product you want.
