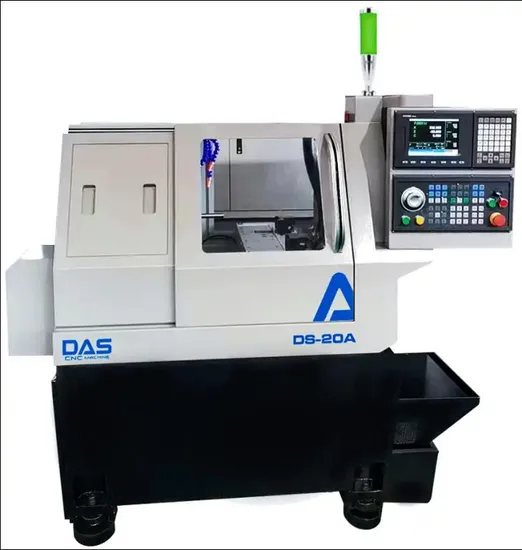

China CNC Lath Machine for Metal, Flat Bed Price CNC Machine Standard Size Tool Gang Type Mini CNC Lathes
Basic Info.
Model NO.
DS-20A
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Repeatability (X/Y/Z) (mm)
0.003
Dimension(L*W*H)
1730X1230X1540
Brand Name
Das
Weight (Kg)
1300
Spindle Speed
1-4500 Rpm
Name
Metal CNC Lathe
Machine Type
Flat Bed CNC Lathe
After-Sales Service Provided
Online Support
Application
Material Processing
Model
Ds-20A
X/Z Axis Travel
500/230
Color
Customers′ Requirement
CNC or Not
CNC
Taper
0.003/100mm
X Servo-Motor
1.1 Kw
Transport Package
Wooden Box Package
Specification
1730x1230x1540
Trademark
DAS
Origin
China
HS Code
8458110090
Production Capacity
50pieces/Month
Packaging & Delivery
Package Size
183.00cm * 133.00cm * 164.00cm
Package Gross Weight
1500.000kg
Product Description
DAS DS-20A Torno CNC High Precision Metal Automatic Hydraulic Power Flat Bed Gang Type CNC lathe Machine Product Description- Machine tool control system uses Taiwan SYNTEC system. Other company's numeral control system can also be used when user requires so.
- Machine body is cast in one piece with resin bonded sand, so it features strong vibration resistance and less deformation. The lathe bed tilts by 45° and the inclined placement of lathe carriage and tool holder will result in easy operation and chip removal. The machine tool has pleasant design appearance and less space occupation.
- Equipped with computer automatic lubrication system for the linear guide and ball screw forced lubrication, ensure that the guide rail and the service life of screw.
| Name | DS-20A |
| Tool installation | Gang type, Horizontal |
| Tool change method | Random |
| Square tool holder(mm) | 16×16 |
| Round hole knife (mm) | ∮20 |
| Max. Configurable tools (pcs) | 8 |
| Spindle speed(r/min) | 1-4500 |
| Spindle model | CK0620D100 (Internal spindle) |
| Spindle center height (mm) | 51 |
| Spindle bore(mm) | ∮25 |
| Max. Through bar diameter (mm) | ∮20 |
| Max. Working length (mm) | 230 |
| Max. Working diameter (mm) | ∮100 |
| Max. Swing diameter (mm) | ∮360 |
| Spindle motor power (kw) | 2.2 (Afa) |
| System minimum resolution (mm) | 0.001 |
| X/Z axis repeated positioning accuracy (mm) | ±0.007 |
| X/Z axis travel(mm) | 500/230 |
| Taper (mm) | ≤0.003/100mm |
| Roundness (mm) | ≤0.003 |
| X/Z axis rapid traverse speed(m/min) | 23/23 |
| X servo-motor(kw) | 1.1 (Syntec) |
| Z servo-motor (kw) | 1.1 (Syntec) |
| Air pressure | 0.4~0.6MPa |
| Coolant tank motor(kw) | 350 |
| Power(kw) | 5 |
| Weight(KG) | 1300 |
| Size(L*W*H)(mm) | 1730x1230x1540 |
Good Feedback
Foshan Shunde Guoqiang Daosheng Industrial Co., Ltd. is located in Chencun, the important machinery town in Shunde District,Foshan. Sticking to the human-centering management, we are in possession of a group of highly competent technical personnel, a market oriented experienced sales team. In the gesture of sincere cooperation, we strive to establish a promise keeping and quality .Our major products include CNC series gang tool type lathes , turret lathes, take heart-type lathes and milling-type lathes,featuring space saving, low cost and diversified arrangement etc. They can also meet the demand for precise processing of different products. The products find widespread application in the manufacture of cars, motorcycles and accessories thereof,electronic industry, optical instruments, clocks and watches as well as special motors etc.We have precise lathe equipment, complete quality guarantee system, prompt goods supply as well as perfect after-sales service,which ensure us
the first consideration when you purchase high-precision machine tools.
