PLD3020N FINCM Manufacture Steel Girders for Highways and Road CNC Plate Drilling Machine

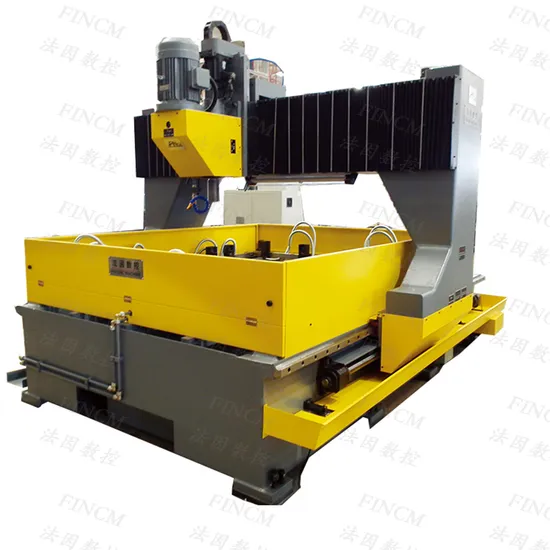

PLD3020N CNC High-speed Drilling Machine for Steel Plates. The drilling machine is mainly composed of bed(worktable), gantry, drilling head, longitudian slide platform, quick-change chuck, hydraulic system, control system, cooling system and chip-conveyor etc.
Equipment advantages:
1.The gantry moves while the bed is fixed. Workpieces are clamped by the hydraulic clamps which can easily controlled by foot-switch, small workpieces can clamped four groups together on the corners of worktable so as to reduce the preparation period of production and improve the efficiency significantly.
2.The machine including two CNC axes, each of all is guided by high precision linear rolling guide, drive by AC servo motor and ball-screw.
3.The machine purpose adopts hydraulic automatic control stroke drilling power head, which is our company's patented technology. There is no need to set any parameters before use. Through the combined action of electro-hydraulic, it can automatically carry out the conversion of fast forward-work forward-fast backward, and the operation is simple and reliable.
4.The two methods of internal cooling and external cooling ensure the effect of cooling the drill head. The chips can be dumped into the dumpcart automatically.
5.The control system adopts the upper computer programming software which is independently developed by our company and matched with the programmable controller, which has a high degree of automation.
Details Images:
Main Technical Specifications:

Workpiece size	Material overlap thickness	Max. 100mm
	width × length	3000mm×2000mm One piece
		1500mm×2000mm two pieces
		1000mm×1500mm 4 Pieces
principal axis	quickly change the chuck	Morse 3 and 4 taper holes
	Drill diameter	Φ12-Φ50mm
	Variable speed mode	Continuously variable speed of frequency converter
	speed	120-560r/min
	Stroke length	180mm
	Machining feed	Stepless hydraulic speed regulation
Workpiece clamping	Clamping thickness	15-100mm
	Number of clamping cylinders	12
	Clamping force	7.5KN
	Clamp open	Foot switch
Coolant	mode	Forced circulation
hydraulic pressure	system pressure	6MPa(60kgf/cm2)
	Tank capacity	100L
air pressure	Gas source	0.6MPa(6kgf/cm2)
electric machinery	Spindle motor	5.5kW
	Hydraulic pump motor	2.2kW
	Chip conveyor motor	0.4kW
	Cooling pump motor	0.25kW
	X-axis servo motor	1.5kW×2
	Y-axis servo motor	1.0kW
Machine dimensions	long × wide × high	About 6183×3100×2850mm
weight	host	About 5500kg
	Chip removal system	About 400kg
Number of control axes	X. Y (point control) Z (spindle, hydraulic feed)
trip	X-axis	3000mm
	Y-axis	2000mm

List of Free Accessories to be shipped together with the machine:

NO.	Code	Name	Qty	Note
1	KHQ50.1	Quick change chuck Quick change chuck	1 set	Already installed on the spindle
2	KHQ50.1-6	Spindle arbor	2 pcs
3		4/3 Diameter reducer sleeve	1 piece
4		4/3 Lengthened reducing sleeve	1 piece
5		"O"ring 16×2.4mm	5 pcs
6		"O"ring 11×1.9mm	5 pcs
7		"O"ring 50×3.1mm	1 piece

Key Outsourced Components List:

NO.	Name	Brand	Country
1	Linear guide rail	CSK/HIWIN	Taiwan (China)
2	Hydraulic pump	Just Mark	Taiwan (China)
3	Electromagnetic valve	Atos/YUKEN	Italy/Japan
4	Servo motor	Inovance	China
5	Servo driver	Inovance	China
6	PLC	Inovance	China
7	Computer	Lenovo	China

Work Environment:
Power supply: 3 phases 4 lines 380±10%V 50±1HZ
Environment temperature: 0-40°C
Environment humidity: ≤75% Other Products
Applicable Industry
This machine purpose is mainly used for drilling plate workpieces in steel structures such as construction, coaxial, iron tower, etc., and can also be used for drilling tube plates, baffles and circular flanges in boilers, petrochemical industries.
Company Profile

Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
Product Process Control


Cooprative Supplier
Sales Network
Our Service
FAQ:
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.
