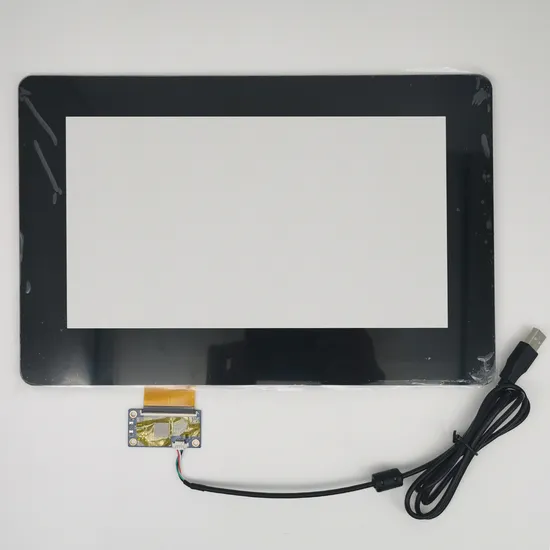

11.6 Inch Industrial Multi Capacitve Touch Screenusb Interface Controller Ili2511 Waterproof

Product Description

11.6 Inch Industrial Multi Capacitve Touch ScreenUSB Interface Controller ILI2511 Waterproof
Operation Principle:
Capacitive touch panel works through body's current induction. When finger is on or close to touch panel surface, due to body electric field, the user and touch panel surface forms one coupling capacitance.
For high frequency current, capacitance is direct conductor, then fingers suck a small current from the contact point, through amplifying and accurately calculating this current signal,
Finally the controller works out the touch point position
Projected Capacitive Touch Screen Technology:
Projected Capacitive Technology permits more accurate and flexible operation by etching the conductive layer on the touch screen. Projected Capacitive Touch Screen uses multiple layers of glass or film with optical bonding in assembly process. Cover lens is usually made by tempered glass which can stand against shock and impact. Projected Capacitive touch panels are embedded with high performance IC and users can enlarge, shrink, rotate, flip and drag pages easily due to the multi-touch gesture support (multi touch screen).

Comparison between Capacitive Touch Panel and Resistive Touch Panel
Capacitive Touch Panel	Resistive Touch Panel
Touch (no pressure needed)	Press (pressure activated)
No calibration required	Calibration required (resistance drift on film)
Better Durability, No significant aging	Display turns white when aging
Handles high temperature	Film breaks down at high temperature
Better Transparency, less optical power needed	Low transmission
Can be vandal-proof (thick glass/plastic)	Easily damaged (thin top layer)
Scratch Resistant (with glass)	Prone to scratch
Stylus not a must	Need stylus, easy to lose

Product Specification:
The structures explanation:
* P+G=PET+Glass (cover lens is PET and touch sensor is glass).
* G+G=Glass+Glass (cover lens is glass and touch sensor is glass).
* G+F/F=Glass+Film+Film (cover lens is glass and touch sensor is film+film).
* CG= Cover Glass, OD= Outside Dimension, VA= Viewing Area.

Model NO.:	RXC-GG116001-1.0
Screen Size:	11.6 inch
Resolution:	1280*800
Outside Dimension(W*H):	293.2x195.7mm
Viewing Area(W*H):	256.0x143.5mm
Touch type:	Multi-touch capacitive touch panel
Structure:	G+G
Surface Treatment:	Customized
Cover / Sensor Thickness:	Cover:1.8mm, Sensor:0.7mm
Total Thickness:	2.7mm (don't including Double Tape)
Controller:	ILI2511or equivalent
Touch Action Force:	30~60g
Operating Voltage:	2.8V~3.3V
Transmittance:	≥85%
Surface Hardness:	6H
Interface:	USB/IIC
Pin NO:	4Pin/6Pin
Pin pitch:	0.5mm
Connecting type:	FPC Connector
Operating system support:	Linux, Android, Windows, etc
Operating Temperature:	-20 ~ +70ºC
Storage Temperature:	-30 ~ +80ºC

Custom Projected Capacitive Touch Screen:
Our capacitive touch panel design can be suitable for housing design from the customers to cover their lens or replace the physical buttons on its original module. we are also capable of doing the customized shape needed to suit for customer's mechanical design. With the assistance of the simulation software, equipment with high accuracy and simplifying assembly process, we are capable of making the sample in shorter period and with lower development charge.

	Lens's Features > Shape: Irregular and hole > Color: Silk printing, Logo > Glass brand: AGC, Corning, CSG, ETC > Treatments: AG, AR, AF, Anti-explosion > Thickness: 0.55mm, 0.7mm,1.0mm, 1.1mm, 1.8mm, 2.0mm, 3.0mm, 4.0mm
	Sensor Features > Sensor material: Glass, Film,Film + Film > Thickness:0.125mm,0.4mm, 0.55mm, 0.7mm, 1.1mm > FPC: Shape design optional > IC: Focaltech, Goodix, Cypress, EETI > Interface: IIC, USB, RS232, SPI
	Assembly > Optical Bonding with OCA > Double faced adhesive tape

Product Application:

Telecommunication Devices	Telephone, Interphone, Smart Watch, Tablet PC, PDA
Consumer Products	Camera, DVD Player, Cell Phone, Game Player, Digital Photo Frame, E-Book Reader, Mp3 Player, MP4 PMP, Netbook PC
Technical Equipment	Elevator Controller, Industrial Machine, Security Monitor, POS
Office Automation	Printer, Scanner, Fax Machine, Desktop Monitor, Desktop Monitor
Home Appliances	Air-condition Display, Refrigerator, Video Doorbell, Smart Machine
Automobile Display	GPS, Protable Navigation, Video Player, Speedometer, Recorder
IT Products	Digital Video, Media Player, Advertising Machine
Medical Equipment	Ultrasound Machine, Medial Monitor, Medical Imaging, Healthcare

Packaging & Shipping & Delivery
Packaging Details:
All the products are packed in right way to keep it safe.
For small sizes of products we use tray + carton,
For bigger sizes we use foam slot + carton.
we also design packages according to customers' requirements
Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.
For large quantity orders: we ship by buyer's cargo agent in China,
we can also ship by air or sea transportation by our cargo agent.
Delivery Details:
Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
Our Company:
Ronbo Electronics Ltd., is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT and IPS modules for a variety of industrial and consumable application. We are one of the leading display providers of character LCD modules, graphic LCD modules, TFT & IPS modules and Touch Screen. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.
Moreover, our company has passed ISO 9001 certifications as well as RoHS.
By adopting computerized management system, automatic manufacturing process and advanced technology, we can able to continuously supporting our worldwide customers with qualified and reliable products.
Our website: http://ronboelectronics.en.made-in-china.com
Our Advantage:

Rich experience	Good knowledge of the displays market to put together solutions that add value and provide a unique proposition for the client
Advanced Equipment	Full automatic FPC&IC bonding machine, film attaching machine, CNC machine, polish machine advance production equipment ensure product quality
Quality Assurance	Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment
Fast response	Quickly realize your customized ideas, and have a sample ready in short time
Low MOQ	Depends on product
Stable supply	1~10 years supply period
Extensive range	Providing complete solution from Mono to Color LCD module, Optical bonding between display to cover glass as well as cover glass to touch screen
Large production capacity	Operation capacity 2KK monthly
Quality guarantee	RoHS compliant
Management	ISO 9001:2008, ISO 14001:2004

Product Line:
☆ Clean Room class 10k@0.8um, Pressurec 0.8kgf
☆ Antistatic floor, resistance : 1x10 ohm to 1x10 ohm
☆ COG production lines: 4 .
☆ Backlight production lines: 2 .
☆ Existing machine capacity will be 1KK per month.
Quality Policy:
All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2008 management system.
Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment
Certification:
FAQ:
Q: How can I get some samples?
A: We don't provide free one, but we can have a discount when you reorder according to different quantity, and you will win at least 3% discount.
Q: What is the MOQ?
A: It depends on different products. Please keep in touch with sales to confirm the MOQ.
Q: How do you control quality?
A: All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2008, ISO 14001:2004 management system.
Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment0*480 CapacitouScreenCDsplay
Q: Does your product have any warranty?
A: Yes, we offer 12 months warranty for our products.
Q: What's your payment method?
A: Payment: T/T, Paypal, Western Union, etc.
For samples: payment in advance.
For mass production: 30% deposit and 70% balance before shipment.
Q: Do you offer custom solution?
A: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements.
