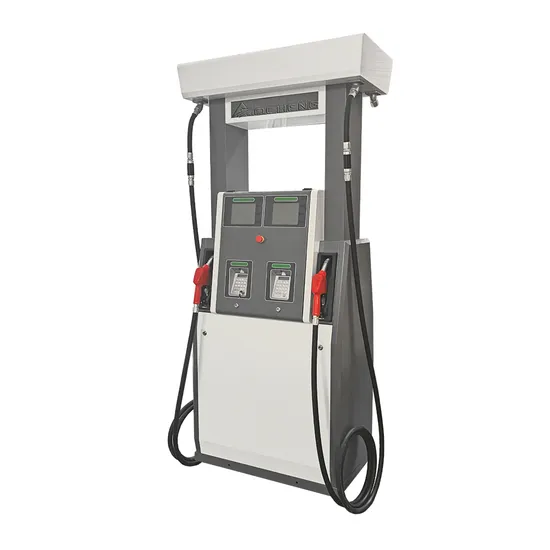

Reliable 230V Fuel Dispenser for Gas Stations and Fleet Services
| US$900.00-1,200.00 | 2 Pieces (MOQ) |
Basic Info.
Model NO.
AC-210
Magnitude of Discharge
Large
Operation Mode
Self-help
Oil Transportation Mode
Self Priming
Transport Package
One Set in One Master Paper Carton
Specification
ISO, CE
Trademark
AOCHENG
Origin
China
HS Code
8413110000
Production Capacity
10, 000PCS/Month
Product Description
The AC-210 Big Fuel Dispenser operates on 220V, delivering 10-60L/min with ±0.5% accuracy. Suitable for diesel, HVO, XTL, gasoline, and kerosene, it features two motors, automatic nozzles, and a digital display. Its anti-explosion design makes it ideal for various commercial and industrial applications.2 x Product
2 x Motor 220V, 50Hz, 0.75kw
2 x Tatsuno type gear pump
4 x Tatsuno type flowmeter
4 x Auto fuel nozzle, 11A, 3/4''
4 x Black rubber hose, length: 4m with couplings
4x Solenoid valve
4 x Breakaway valve
4 x Hose swivels
4 x Totalizer
4 x Electronic controller
4 x Preset keyboard, metal material
4 x Display
All painting body
Package: Standard export carton
Specifications:
| Connection | Liquid line | 1'', 20kgf/cm2, flange |
| Gas line | 1/2'', 20kgf/cm2, flange | |
| Blow line | 1/2'', 20kgf/cm2, flange | |
| Pressure property | Max. Operating Pressure | 18kgf/cm2 |
| Airtightness test pressure | 20kgf/cm2 | |
| Resisting test pressure | 30kgf/cm2 | |
| Flow meter | Construction | 4-piston type |
| Outlet diameter | 3/4'' | |
| MPE | ±0.5% | |
| Flow Range | 10-60L/min | |
| Temperature | Type | Electronic |
| Operating temp | -40 C - +50C | |
| Reference temp | 15 C | |
| Display | Sales amount | 1-999999.99 |
| Volume | 0.01-999999.99 Liter | |
| Unite Price | 1-9999.99 | |
| Preset | Provided | Price volume and accumulated sales |
| Self diagnosis | Provided | Self diagnosis function, etc |
| Power source | Electrical | Single Phase, AC220V 50/60Hz |
| Input range | -0.6 | |
| Safety valve | Separating pressure | 30kgf/cm2 |
| Operating Load | 60kgf/cm2 | |
| Others | Anti-explosion | Resisting pressure anti-explosion |
| Excess flow valve | Provided | |
| Quick-coupling | Provided | |
| Strainer | Provided | |
| POS interface | ALI29 | |
| Hose hook | Provided | |
| Pressure Gauge | Pressure range | 0-40kgf/cm2 |
