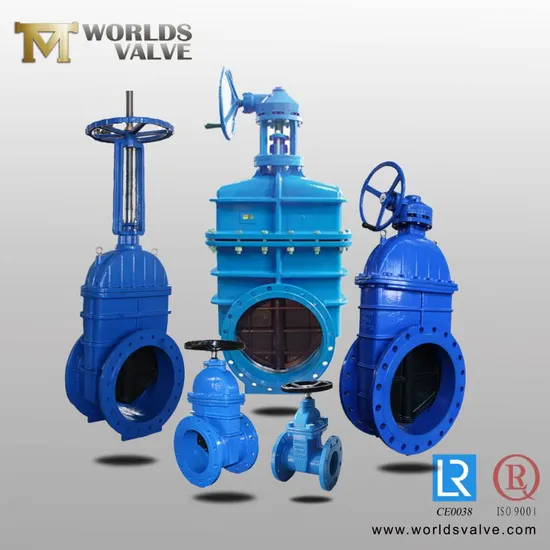

BS5163 Awwa C515 C509 DIN3202 F4 F5 Wras Acs Ce Ggg40/50 Ductile Cast Iron Non-Rising Stem OS&Y Resilient Seated Flanged Wedge Water Gate Butterfly Check Valves

BS5163 Awwa C515 C509 DIN3202 F4 F5 Wras Acs Ce Ggg40/50 Ductile Cast Iron Non-Rising Stem OS&Y Resilient Seated Flanged Wedge Water Gate Butterfly Check Valves

US$10.00-100.00 1 Piece (MOQ)

Basic Info.

Model NO.
RGV01-TF01
Type
Right-angle
Material
Cast Iron
Connection Form
Flange
Pressure
Low Pressure
Actuator
Manual
Seal Surface
Wedge Gate Valve
Thread Position of Valve Rod
Outside Gate Valve
Usage
Regulation, Safety, Flow Control
Standard
BS5163/DIN3202 F4/F5/Awwa C509 C515
Application
Industrial Usage, Water Industrial Usage, Household Usage
Body Material
Ductile Cast Iron
Power
Handwheel ; Gearbox
Face to Face
DIN3202 F4/F5, BS5163, Awwa C509
Certificate
Ce;ISO;Wras;Acs Approved
End Standard
Pn6/10/16/25/21/150lb/JIS5K/10K/As2129 Table D/E/F
Transport Package
Plywood Case
Specification
DN50-DN1200
Trademark
WDS / WORLDS/OEM
Origin
Tianjin China
HS Code
8481804090
Production Capacity
1000000 Sets/Year

Packaging & Delivery

Package Size
110.00cm * 110.00cm * 90.00cm
Package Gross Weight
500.000kg

Product Description

Non-rising Stem Resilient Seated Gate Valve
Standard:
Design standard conform to: MSS SP-67, API609, EN593
Connection flange conform to: DIN PN10/16/25, ANSI B16.1, BS4504, ISO PN10/16,
JIS B2212/2213, BS 10 Table D, BS 10 Table E
Top flange conform to: ISO 5211
Face to face conform to: API609, ISO5752 series 20, BS5155
Test standard conform to: API598
Design characters:
1. Equipment used in cutting off medium in pipeline.
2. Suitable for hand wheel, gear operators or electric actuators.
Performance:
Nominal Diameter: DN40-DN1200
Nominal Pressure PN (MPa):
1.0, 1.6, 2.0, 2.5
Testing pressure (water) PS (MPa)
Body seat: 1.5 times rated pressure
Seat test: 1.1 times rated pressure
Non-rising stem resilient seated gate valve are widely used in water supply and drainage, hydre or thermal power, building project as well as industrial water system, such as steel and petrochemical.
1. Equipment used in cutting off medium in pipeline.
2. Suitalbe for hand wheel, gear operators or electric actuators.
Detailed Description:
Series Non-rising stem resilient seated gate valve
Size: DN40-DN600
Design standard: GB/T 12232-2005 DIN3352, EN593, MSS SP-67
Pressure standard: GB/T 13927-1992, API598
Face to face: DIN3202 F4, F5, BS5163,AWWA C509
Flange standard: DIN2532, DIN2533
Body: CI/DI/WCB/ALB/CF8/CF8M
Disc: DI/ALB/Rubber lined Disc/1.2501/1.4529/CF8/Hastelloy Alloy/Monel
Stem: SS416/SS304/SS431/17-4PH
Seat: NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White EPDM/EPDM()/PTFE
Suitable temperature: -10~90
Medium: Flesh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc.

**COMPANY INTRODUCTION
**Company Goal : OEM service for world-famous valve brand.
**Design & Development ability -- SolidWorks, Pro / E, AutoCAD etc
**Dimension Measurement &Inspection
**Assembly Workshop
**Packaging
**Certificates -- CE ISO WRAS ACS certificates
