99.99% High Purity Gravity Table Sesame Seed Grain Beans Specific Corn Maize Density Soybean Selection Pulses Paddy Cassia Chia Separating Gravity Separator

Product Description

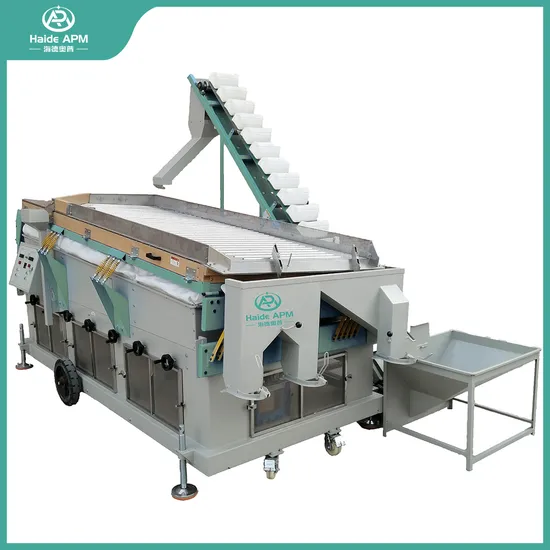

99.99% Purity Gravity Separator Sesame Seed Grain Beans Specific Selection Machine Density Selection Gravity Table Separator
Product Description
Introduction and Function
This Gravity Separator is to remove the blighted seed, budding seed, damaged seed (by insect), rotten seed, deteriorated seed, moldy seed, non-viable seed, seed with black powder sick, and seed with shell from grain/seed.
This Blow Type Specific Gravity Separator produces a proportion segregation phenomenon under the stress of aerodynamic and vibration friction of graininess material. By adjusting wind pressure, amplitude, and other parameters, a larger proportion of material will sink, and move from bottom to up under the stress of vibration friction; a smaller proportion of material moves from up to bottom.
Detailed Photos
Product Parameters

Model	Sieve size(mm)	Power (kW)	Capacity (kg/h)	Weight (kg)	Overall Size L×W×H (mm)
5XZ-6	1380 x 3150	13.2	5000	1700	3870 x 1600 x 1700
5XZ-8	1380 x3150	14.3	8000	1800	3870 x 2000 x1700
5XZ-10	1500x3800	17.57	10000	2200	4300 x 2000 x 1700
5XZ-15	1830x4600	30.3	15000	3500	5100 x 2300 x 1700

Advantage
1. Most components adopt bolted connections to avoid welding deformation.
2. The elevator features binocular super-low speed, nonbroken.
3. The gravity sorter has 7-10 wind boxes , so the processing area is large.
4. The advanced processing equipment includes plasma cutting equipment, CNC turret punch, and sandblasting & spraying plastics machine, which guarantees smooth plate, high dimensional accuracy as well as high punching accuracy and hole distance precision.
5. Gravity separation equipment adopts high-quality bearing, Vietnam beech, and high-quality stainless steel table facets.
6. Fixed or movable type is available.
7. The wooden frame is made of precious wood, which has excellent impact resistance and firmness. The screen surface is made of 304 stainless steel mesh of food grade, with very good wear resistance, strength, and long life.
8. The base adopts an integrated design, good stability, an accurate counterweight balance scheme, stable and perfect zoning effect.
Working Principle
Seeds and grains can be separated and graded by the suspension and friction characteristics. Seeds flow over the inclined vibrating screen-covered rectangular deck, in which pressurized air is forced through. Seeds can be suspended and stratified according to specific weights. Heavy particles float uphill while light particles travel downhill. The rectangular deck makes the particles travel a longer distance, ensuring the perfect separation of light and heavy particles and the lowest percentage of middling, improving the quality of the end product.
Product Details
Company Profile
FAQ
Q1: Are you a factory or trading company?
A1: We are a professional manufacturer of seed processing machinery and also an international trading company
Q2: Can we visit the factory?
A2: Sure, our factory is in Hebei Province, very close to Beijing, You can contact our business manager, and we will arrange the pick-up service.
Q3: I want more machines, how can I get the latest catalog for reference?
A3: You can contact us, and we will send you the latest catalog.
Q4: How to ensure the quality.
A4: Before each device is shipped, our engineers will debug the device to the best operating condition to ensure the customer's use effect. We will provide commonly used spare parts, and after-sales engineers will provide technical solutions for machine failures in time.
Q5: why should you buy from us not from other suppliers?
A5: We will even design suitable and trustworthy machines for our customers according to different requests. We continuously devote ourselves to supplying intelligent, practical machinery and completed technical services to our customers.
You only need to provide:
1. Raw materials
2. Raw material purity
3. The original impurity content of the material
4. Production demand
5. Purity requirements for finished materials
6. Plant layout or size
We will provide you with a perfect solution.
Q6: What are your payment terms for new customers?
A6: A T/T, L/C, Money Gram, West Union, Paypal etc
