Gypsum Board Making Plaster Ceiling Powder Wall Panel Building Material Hot Air Natural Paper Surfaced Paper Covered Tile Machine

Product Description

Equipment Introduction

Equipment Details

Product name	China Factory Price Excellent Quality Gypsum Plaster of Paris Powder Making Machine Plaster board making machine
Production capacity	2million~30 million square meter per year. Normally Production capacity based on thickness 9.5 mm
Working time	Based on 24 h per day ,300 days per year.
Final product variety	(1)Common paper-faced plasterboard (2)Fire resistance paper-covered plasterboard (3)Water resistance paper-covered plasterboard.
Product specification	Board length:2000--3600mm Board width:1200mm,1220mm Board thickness:8--25mm
Fuel type	Heavy Oil ,Diesel,Natural Gas,Wood Normal customer could choose type is cheaper and easy to get locally.
Technology type	1-Hot air technology 2-Hot oil technology

Advantages of the equipment

Gypsum board production technology is relatively mature, as long as you are looking for a responsible factory that can help you get your project built, but if you want to produce high quality gypsum board, you need to consider the following aspects: 1-Accurate batching system, guarantee the formula accurate.

1-Accurate dosing for each raw material. Starch mixing tank use stainless steel, with long service life and low corrosive.The foaming agent reserve tank is made of stainless steel.
2-Forming and conveying system
1-Automatic raw material discharge --no need people to handle it ,Save 2 workers than before 2-Forming belt 12- 14 mm thick, can improve the flatness of gypsum board.

3-conveying rolls are customized with a longer service life
3-Mature drying technology
Drying system-- the most important part of the production line,this part is also our core technology
1-The temperature of the drying room is uniform, avoiding over-burning and not enough drying. Make sure the board is high strength and not fragile. 2-Our drying room equipped with heat circulation pump,so the heat can be recycled, and it is more energy-saving. if put hand on our drying room, and the door is not very hot,about 25 degree. If it is very hot, it means that the heat is lost.
3-Each area is equipped with humidy dicharge pipe to prevent the board from sticking to the roller. some other factories normally only equip one.
4-Advanced foaming technology Advanced foaming technology , the foamed gypsum board is more lightweight , so easy for installation , also strength is higher . This is one of our unique advantage .

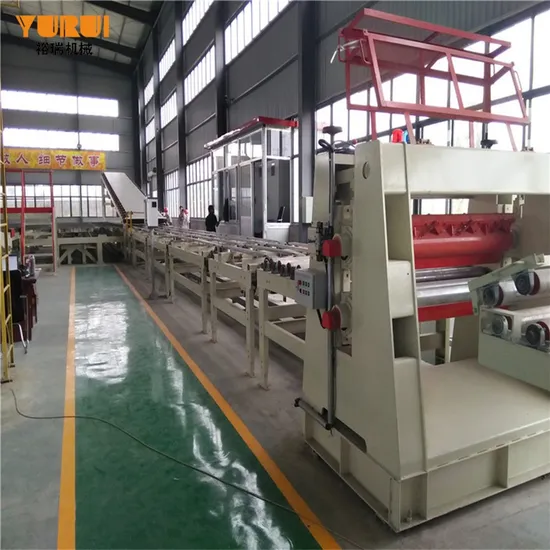

Project show

1) Pre-sales: Full cooperation with pre-preparation work
2) In-sales: On-time reporting of production progress
3) After-Sales: Lifetime & 24h technical support FAQ
Q: How long is the warranty of your equipment?
A: 1year
Q: Do you supply spare parts?
A: Excellent easy broken parts support for buyers. Easy broken parts guarantee for one year.
Q: Will you provide training?
A: The training is free of charge , and our engineer will be on duty to train your worker.
Q: How will you provide installation&commissioning
A: Will provide 2~8 persons(adjustable according to the degree of automatic )for installation. Engineers team will go with your project.
Q:How long time for the installation and commissioning
A: depend on configuration normally only need 15-25days. Including workers training.
