Low Noise Weather Resistance ISO11237 Compact Wire Braided Rubber Hose

Product Description

Low Noise Weather Resistance ISO11237 Compact Wire Braided Rubber HoseProduct Description

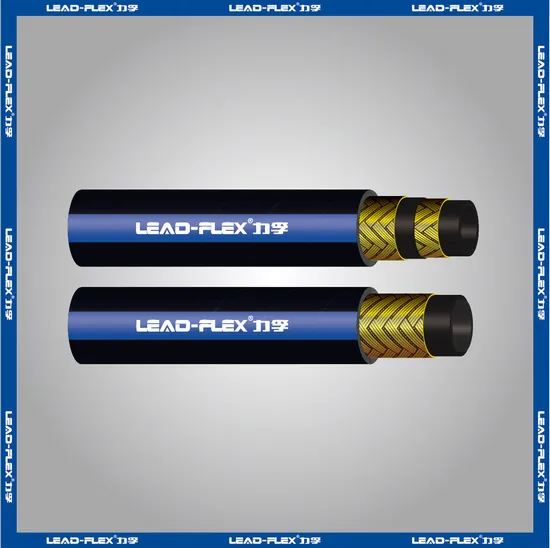

Compact wire braided hydraulic hoses usually consist of three layers: inner rubber layer, reinforcement layer, and outer rubber layer. The inner rubber layer is usually made of oil-resistant synthetic rubber, which can effectively prevent the penetration and corrosion of hydraulic oil. The reinforcement layer is composed of one or two layers of high-strength steel wire braiding. This structure not only improves the hose's pressure resistance but also enhances its tensile strength. The outer rubber layer is generally made of oil-resistant and weather-resistant synthetic rubber, which has good wear resistance and aging resistance.
This hose has a small bending radius and is suitable for use in space-constrained environments. Its design allows the hose to have good flexibility and flexibility while maintaining high strength and pressure resistance. In addition, the compact wire braided hydraulic hose also has excellent chemical corrosion resistance and can adapt to a variety of hydraulic media, such as mineral oil, water glycol, etc. Its operating temperature range is usually between -40°C and 100°C, which can adapt to various environmental conditions.Compact wire braided hydraulic hose is widely used in medium-pressure hydraulic systems, especially in places where installation space is limited, such as machinery manufacturing, construction machinery, automobile manufacturing,g, and other fields. It is also commonly used in pilot control circuits and return oil hoses.
Product Parameters

Product Series	Nomnal Dlameter	Size	(ID)mm		(W.D)mm		( O D ) mm		W.P	B.P	Min.B.R	W.T
	mm	inch	min	max	min	max	min	max	Mpa	Mpa	mm	Kg/m
R16-04-06	6.3	1/4"	6.2	7.0	10.6	12.3	12.6	13.8	35.0	140.0	50.0	0.27
R16-05-08	8	5/16"	7.7	8.5	12.1	13.3	14.4	15.6	29.7	118.8	55.0	0.35
R16-06-10	10	3/8"	9.5	10.1	14.5	15.9	16.4	17.6	28.0	112.0	65.0	0.42
R16-08-12.5	12.5	1/2"	12.3	13.5	17.5	19.0	19.9	21.1	24.5	98.0	90.0	0.50
R16-10-16	16	5/8"	15.5	16.7	20.6	22.6	23.2	24.8	21.0	84.0	100.0	0.65
R16-12-19	19	3/4"	18.6	19.8	24.6	26.3	27.2	28.8	21.0	84.0	120.0	0.80
R16-16-25	25	1"	25.0	26.4	32.5	34.0	34.1	36.5	14.0	56.0	150.0	1.22
R16-20-32	32	1-1/4"	31.4	33	39.3	41.9	42.8	45.2	11.3	45.2	210.0	1.49

Detailed Photos
High Pressure Capability
These hoses are designed to withstand high hydraulic pressures, making them suitable for applications where high pressure is required.Flexibility
Despite the high pressure capacity, these hoses are flexible and easy to bend, allowing for easier installation and use in various applications.Durability
The steel wire braided reinforcement provides added strength and durability to the hose, enhancing its resistance to wear, abrasion, and punctures.Resistance to External Factors
These hoses are resistant to oil, weather, and other external factors, making them suitable for use in harsh environments.Wide Temperature Range
Compact wire braided hydraulic hose can operate effectively in a wide temperature range, making them versatile for different applications.Company Profile
FAQ
Q1. What are your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and have a good relationship?
A:1. We keep good quality and competitive prices to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
