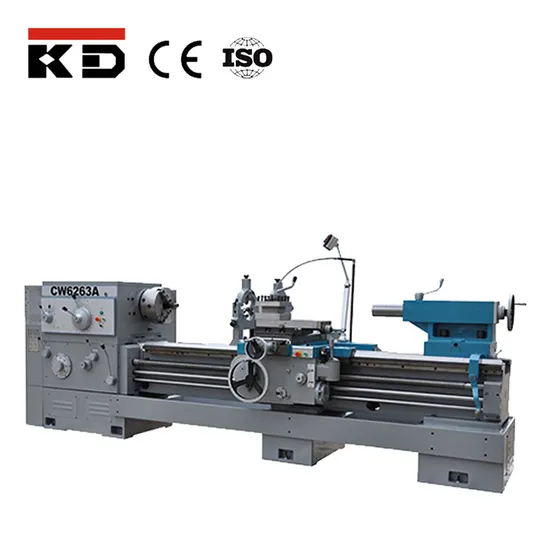

Heavy Duty Industrial Metalworking Lathe Machine with Large Capacity
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CW6163A/CW6263A
Guide Rail
Hard Way
Tool Holder
4-Way Tool Station
Power Source
Manual
Controlling Mode
Manual
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
7200X1500X2100mm
Specification
6275x1100x1450mm
Trademark
kaida
Origin
Zhejiang
Production Capacity
130 Sets/Year
Product Description
PRODUCT SPECIFICATIONS
| MODELS | CW6163A/CW6263A | CW6180A/CW6280A |
| CAPACITY | | |
| Max.swing over bed | Ф630mm | Ф800mm |
| Max.swing over carriage | Ф370mm | Ф510mm |
| *Max swing over gap (optional) | Ф830mm | Ф1000mm |
| *Effective length of gap (optional) | 310mm | |
| Width of bed | 560mm | |
| Max.length of workpiece | 1000/ 1500/ 2000/ 3000/ 4000m | |
| Max.turning length | 650/ 1150/ 1650/ 2650/ 3650mm | |
| Max. weight of workpiece | 3000kg | |
| SPINDLE | | |
| Spindle nose | D11 | |
| Spindle bore | Ф105mm | |
| Taper bore of spindle | Metric Ф120 1:20 | |
| Steps of spindle speed | 18 | |
| Range of spindle speed | 7.5~1000rpm | |
| FEED | | |
| Number of longitudinal feeds | 64 | |
| Range of longitudinal feeds (1:1) | 0.1~1.52mm/r | |
| Range of longitudinal feeds (16:1) | 1.6~24.3mm/r | |
| Number of cross feeds | 64 | |
| Range of cross feeds | Half of longitudinal feeds | |
| RAPID TRAVEL | | |
| Longitudinal | 4000mm/min | |
| Cross | 2000mm/min | |
| | | |
| THREAD RANGE/ NUMBER | | |
| Metric pitch threads | 1~240mm/ 50 | |
| Whit-worth threads | 14~1TPI/ 26 | |
| Module threads | 0.5~120M.P/ 53 | |
| D.P.Threads | 28~1D.P/ 24 | |
| TAILSTOCK SLEEVE | | |
| Taper bore | M.T.NO.6 | |
| Max travel | 230mm | |
| External diameter | Ф100mm | |
| OTHERS | | |
| Pitch of longitudinal ball screw/diameter | 12mm/ Ф55mm | |
| Vertical distance from spindle center to installing basis | 33mm | |
| Size of tool shank | 32×32mm | |
| Max travel of cross slide | 440mm | 480mm |
| Swing angle of tool post | ±90° | |
| Max travel of top slide | 200mm | |
| Main motor power | 11kw | |
| Rapid feed motor power | 1.1kw | |
| Coolant pump power | 90w | |
| Net weight | 3400/3700/4200/4700/5800kg | |
