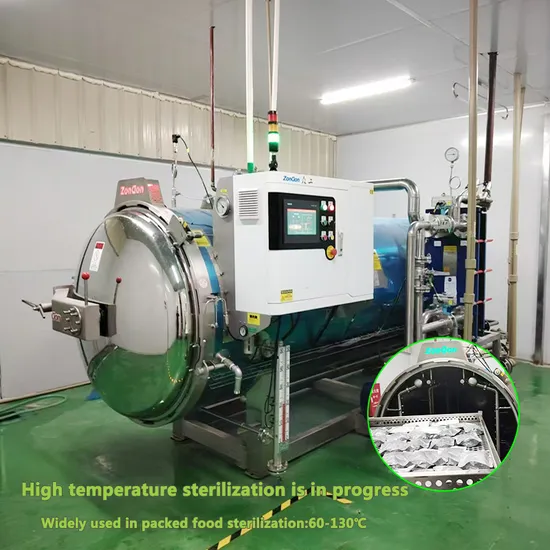

Spray Retort Autoclave for Pet Food Corn Beef Sausage Egg Popping Boba

Product Description

Product Description
Water spray retort machine has the following advantages:
1.Indirect heating or indirect cooling,the cooling water doesn't contact with the process water,avoiding secondary pollution of the food,and no need to use water to treat the chemical.High temperature sterilization for a short time. 2.The steam consumption is reduced,and the steam and the sterilized water after atomization are directly mixed in the sterilizer to increase the speed of temperature rise and fall. 3.A small amount of process water is quickly circulated to quickly reach the predetermined sterilization temperature. 4.Low noise,creating a quiet,comfortable working environment. 5.Perfect pressure control,the pressure of the entire production process is constantly adjusted to adapt to changes in the internal pressure of the product packaging,especially for products containing gas packaging.
Designed to sterilise all types of food preserved in a hermetic container, with pressure and temperature control.
Water spray or cascade system according to the preferences of each user.
Machine constructed according to CE and FDA standards.
Available in various diameters (600 mm or 1500 mm) and different capacities to satisfy the demands of any production.
Equipped with automatic controller/programmer with capacity for various sterilisation programmes and F0 temperature sensor.
A heat exchanger may be fitted to convert the autoclave into a highly efficient unit from the energy point of view:
Cooling water savings.
Saving boiler water and fuel necessary to generate steam.
Insulated to avoid energy losses and with all the required safety systems
for equipment of these specifications.
Made of AISI-304 stainless steel.
With 1 or 2 doors.
Capacity: from 1 to 6 carriages/set
Based on different packages products,we will give you different suggestions.
But for upgrade of the retort machine entire quality,we have development a type of higher level sterilization retort for high class products to have even better sterilization effect.More advanced technology configuration allows the machine to meet all the requirements of your high-quality processing.Air conditioning retort or gas regulated retort.
Spraying sterilization types:side spray,maintain more uniform heat distribution:
A.Japan original technology
B.Perfect control system
C.Higher class configuration prolongs more longer service life
D.Energy saving,consumption reduction, and emission reduction
E.Optimum sterilization process settings
What we can do
Scope of application
What is your processing food product?What is the package type?
In fact,our high temperature sterilization machine suit for most kinds of packages products.Waterproof and heatproof packages.Low acid products.After sterilization, the product can achieve commercial sterility.
Product Parameters
Autoclaves belongs to customization style equipment,widely used in food processing field,new technology development labrotary,machine rents company......We supports various models and functions machines' customization service.Following show 5 of our standard models information for reference.

Model	Diameter(mm)	Tube length(mm)	Basket	Max working Pressure(Mpa)	Max working Temperature(ºC)
PL-06-06	600	600	1	0.3	130
PL-07-12	700	1200	1
PL-09-18	900	1800	2
PL-10-22	1000	2200	2
PL-12-30	1200	3000	3
PL-12-36	1200	3600	4
PL-14-40	1400	4000	4
PL-15-63	1500	6300	6

Company Profile
Our factory located in zhucheng city,shandong province,China.It is a city of food processing machinery.We establised in year 2002.For so long time,our factory engaged in retort machines production and technology development.Our customers all over the world.And we hope more and more food processors can use retort machine made by ZonGon machinery.
Customers cases display
Followings show you some of our customers cases
After Sales Service
Our service not only before order consulting,but also after sales installation guidance and debugging,operators training issues arrangement.And other after sales services.
FAQ
When you spend a huge amount of money buying a device from the internet,and the seller is located tens of thousands of kilometers.I can totally understand that you will feel very insecure.You will have many questions and situations want to confirm again and again.First,i list some simple but important questions and answers.More questions can be talked later on our directly communication.
Q1.Are you original manufacturer of horizontal type retort/autoclave/sterilizer machines?
A:Yes, we are zhucheng zhonggong machinery co.,ltd located in the food machinery city:zhucheng,China.We
establised in year 2002,and our main products are retort machine,automatic retort food loading&unloading system.
We are formal pressure vessel manufacturer that have our own production license of special equipment
People's Republic of China.We can guantee that each of the pressure vessel is both under supervising of our govenment and
our own quality inspectors before delviery.
Q2:If i buy your autoclave machine,how could i install,debug and use it?
A:After you have purchased our equipment and the machine arrive at your factory, you can make an appointment
with our engineers to provide on-site guidance on installation, debugging, and training. The specific operation is set according to your needs.
Q3:What is your warranty policy?
A:Our entire machine is guaranteed for one year (excluding vulnerable parts), and during the warranty period,
any component damage caused by quality reasons all could be in free shipping of new parts.Damaged parts that
exceed the warranty period require pay the part's price and shipping fee for purchase. Many of the accessories
we use are internationally renowned brands. If you don't want to purchase from us, you can purchase them locally
based on the accessory nameplate.
