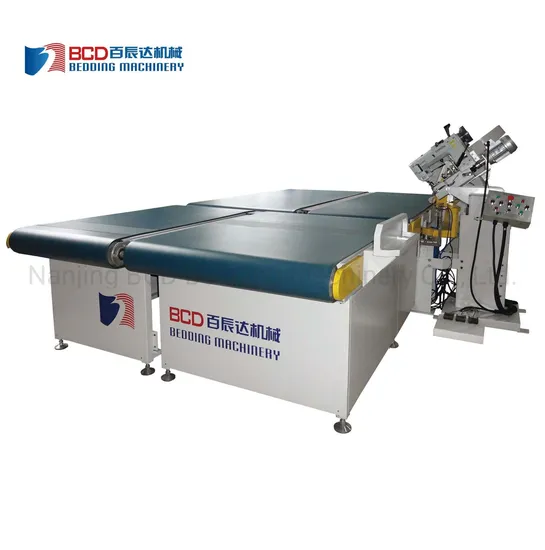

Mattress Tape Edge Machine (BWB-4C Auto-Flip, 300U Chain Stitch) Hot Sale
| US$9,500.00-12,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
BWB-4C
Computerized
Computerized
Precision
High Precision
Certification
CE, ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
Motor Power
3.0kw
Sewing Head Type
Chain Stitch
Work Table Conveyor Speed
10~14m/Min
Sewing Head Elevation Angle
25°~60°(Adjustable)
Work Table Size
3750*1982mm
Transport Package
Wooden Box
Specification
CE\SGS
Trademark
Nanjing BCD
Origin
Nanjing, China
HS Code
84522190
Production Capacity
1000sets/Year
Product Description
Mattress Tape Edge Machine (BWB-4B Auto-Flip,300U Chain Stitch)
Main application and performance
This tape edge machine is mainly used for sewing mattress .
mattress machine is more automatic than the previous traditional type.
It is characterized as:
sewing head elevation adjustable ,
sewing head lift adjustable and sewing speed adjustable etc. .
Work table of this machine is movable , PLC controlling system and artificial intelligence operation.
During course of operation , mattress can auto walk , auto turn corner , auto flip , which increase sewing speed .
Sewing head can be auto get down, auto decrease speed,auto recover after corner, which improve sewing quality so much and solve problem of traditional corner sewing involution .This machine can sewing the 4 mattress edges continuously ,then auto move mattress the regulated position to turn over , whole operation of this machine can be handled by only 1 operator , this machine not only increase work efficiency but also lighten labor intensity .
| Sewing head type | Chain Stitch |
| Sewing head elevation angle | 25°~60°(adjustable) |
| Work table conveyor speed | 10~14M/min |
| Available mattress thickness | 100~400mm |
| Work efficiency | 16~20 mattress/H(depending on skill) |
| Air pressure | 0.6~0.8MPa |
| Total motor power | 3.0KW |
| Work table size | 3750*1982mm |
