Customized 250 mm High Ground Level Low Profile Cdlr Rotary Turntable Conveyor

Product Description

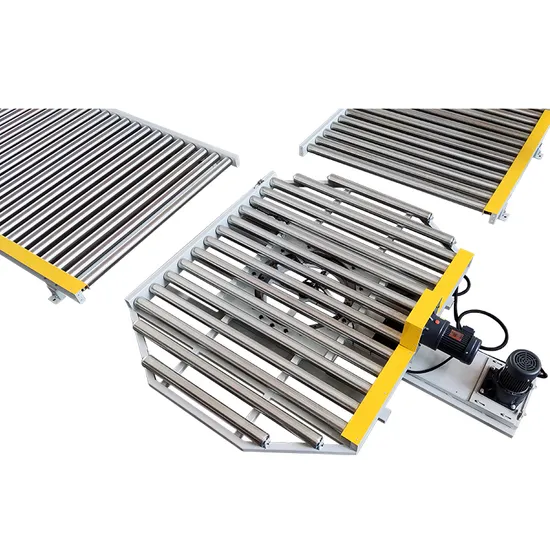

Customized 250 mm High Ground Level Low Profile CDLR Rotary Turntable ConveyorProduct DescriptionThis Low Profile System Consist of an Infeed CDLR, a Turntable Conveyor and an Outfeed CDLR to Transport Pallets. Ground Level Line Height Down to 250 mm.
Turntable Provides a Method of Changing Pallet Travel Direction by Rotating the Pallet Through Any Angle from 90° Up to 180° when Pallet Handling Lines Intersect or Change Directions. Unlike Chain Transfers, Turntable Maintain Pallet Orientation Through an Intersection. It can also be Used to Reverse the Orientation of a Pallet or Allow a Pass Through.Specifications

Rotating Diameter (D)		2400 mm
Effective Width (EW)		1600 mm
Height (H)		250 mm
Rotating Angle		Std. 90 Degree
Double Sprocket Rollers	Roller Diameter	Ø 76 mm
	Tube Wall Thickness	3 mm
	Tube Material	Galvanized Steel
	Axle Diameter	Ø 20 mm
	Axle Retention	Female Thread Retained (Using with M12 Bolts)
Roller Centers		119 mm
Turntable Rotating Speed		3 - 5 rpm, Soft Start/Stop and Variable by Inverter
Roller Table Conveying Speed		10 m/min, Constant
Driven Type		Rotating Driven by Slewing Bearing; Roller Table Roll to Roll Driven by 10A (15.875 mm Pitch) Roller Chain;
Voltage		380 VAC 3 ph 50/60 Hz
Motor		Rotating Motor: 0.55 kw DELI Braked Gear Motor; Roller Conveying Motor: 0.75 kw GPG Motor;
Frame Finish		Powder Coated (Std. RAL 7035)
Load Capacity		1500 kg

FeaturesCDLR Rotary Turntable Conveyor
Receiving Pallets from Infeed CDLR and Rotate 90 Degree to Outfeed Onto Outfeed CDLR. Designed for L 1500 mm x W 1500 mm Pallet;Driven By Slewing Bearing
Rotating Driven by Slewing Bearing + Braked Motor; In 2400 mm Rotating Diameter with 1600 mm Effective Width; Load Capacity Up to 1500 kg;Chain Driven Live Roller Conveyor
Using with Dia. 76 mm x 3.0 mm Tube Wall Thickness Gal. Steel Rollers on 119 mm Centers; Roll to Roll Driven by 10A (15.875 mm Pitch) Roller Chain; Side Mounted Motor;Low Profile
Line Height Down to 250 mm;Options* Rotating Diameter and Effective Width Based on Pallet Size;
* Desired Line Height (Min. 250 mm);
* Rotating Angle (180°);
* Motor Brand, Inverters and Sensors;
* Dia. 89 mm x 4.0 mm Tube Wall Thickness Ga. Steel Rollers;
* Closely Spaced Roller Centers (103 mm, 119 mm);
* Higher Load Capacity Up to 3000 kg;
* Conveying Speed (12, 15, 18, 20 m/min);
* Turntable Cover and Roller Flange (Welded or Split Type);
* SUS304 or SUS316 Material Frame and Rollers;
* Powder Coated Color (RAL);
* Voltage Based on Country of Destination;
