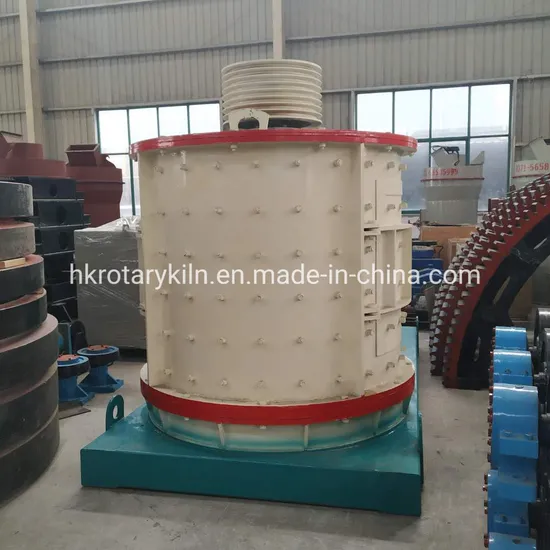

Hot Stone Vertical Combination Crusher

Product Description

Stone vertical combination crusher
Stone vertical combination crusher is widely used in the world market mining industry nowadays, for primary crushing of hard rocks and block materials.
The large and medium-size crushers are the key products of our company and stand in the front of the industry in the aspect of design and production.
1. Application of Stone vertical combination crusher
Stone vertical combination crusher is widely used in mineral, quarry, building materials, road, railway, water conservancy and hydropower.
The angle between the fixed jaw and movable jaw becomes smaller.
The movable jaw plate leaves the fixed jaw plate under the affection of drawbar and spring, and then the crushed materials are discharged from the lower outlet of the crushing cavity.
2. Features of Stone vertical combination crusher
Stone vertical combination crusher has features like simple structure, large crushing ratio, high capacity, even particles,
convenient maintenance, low production cost and so on.
3. Working Principle of Stone vertical combination crusher
The motor drives the belt wheel, and makes movable jaw up and down by eccentric shaft, when the movable jaw down;
The angle between the fixed jaw and movable jaw gets smaller, and the materials can be crushed to reach the crushing target;
When the movable jaw rises, the angle between the fixed jaw and movable jaw becomes larger;
the movable jaw plate leaves the fixed jaw plate under the function of drawbar and spring; and then the crushed materials are discharged from the lower outlet of the crushing cavity.
4.Technical parameters of Stone vertical combination crusher

Type	Feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Spindle speed (r/min)	Motor (kw)
PFL-500	<100	<3-5 60-90%	1-5	1000	4
PFL-800	<100	<3-5 60-90%	15-20	934	22
PFL-1000	<120	<3-5 60-90%	35-50	760	45
PFL-1250	<150	<3-5 60-90%	50-80	530	75
PFL-1500	<180	<3-5 60-90%	70-100	495	132
PFL-1750	<200	<3-5 60-90%	130-160	424	160
PFL-2000	<220	<3-5 60-90%	150-190	370	185
