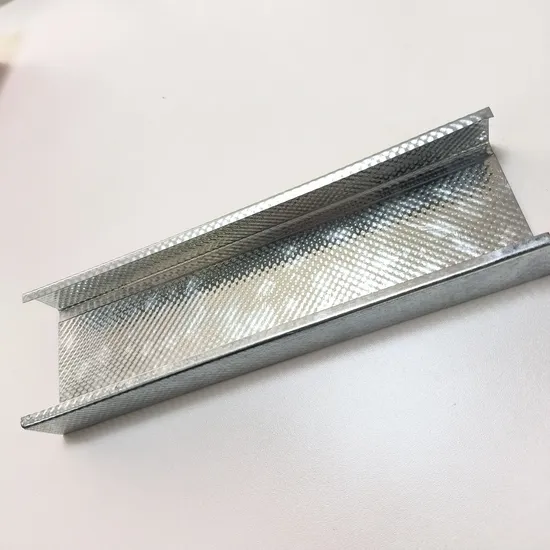

Drywall Metal Stud Specifications Drywall Profile Metal Stud and Track

Product Description

Drywall Metal Stud Specifications Drywall Profile Metal Stud And Track
Metal studs:
Ceiling Channel Specification:

Item		Size(mm)	Thickness(mm)
Load Channel	38 DU	38×12	1.0 1.2
	50 DU	50×15	1.0 1.2
	60 DU	60×27	1.2 1.5
Cover Channel	50DC	50×19	0.5 0.6
	60DC	60×27	0.6
	50 Wall Angle	20×20×30	0.45 0.5
Remark: Special size is accepted according to customer's requirement

Ceiling Channel Specification:

Item	Size(mm)	Thickness(mm)
C Steel Channel (Stud)	50*35/40	0.35-1.2
	75*35/40	0.35-1.2
	100*35/40	0.35-1.2
U Steel Channel (Runner)	50*40/45	0.35-1.2
	75*40/45	0.35-1.2
	100*40/45	0.35-1.2
Remark: Special size is accepted according to customer's requirement

Features: ∗ Good quality galvanized steel is produced from large and advanced production line, high strength and good flexibility ∗ Continuous hot dip galvanizing process, deep zinc thickness, corrosion resistance. ∗ Nice and special design on surface, easily to fix the screw ∗ High strength framework for gypsum ∗ LOGO: Extra cost needed if use your logo on the tapes, but our logo is free ∗ SHIPPING TIME: 7-20 working days after receiving your advance payment, some specifications are in stock Technical Data:

Inspection Item		Standard	Inspection Value
Appearance		No corrosion, no damage, no black speckle and no pock points	Pass
Both surface galvanization		≥100g/m²	115g/m²
Load Channel	Dimension difference A	Dimension A:±0.4mm	-0.3--0.2mm
	Dimension difference B	Dimension B: ±1.0mm	-0.5--0.5mm
Cover Channel	Dimension difference A	Dimension A:±1.0mm	-0.4--0.1mm
	Dimension difference B	Dimension B:±0.4mm	-0.3--0.1mm
Side flatness		≤1.5mm/1000mm	0.6mm/1000mm
Underside flatness		≤1.5mm/1000mm	0.5mm/1000mm
Angle difference		≤1°15′	1° 5′
Load Channel	Load test	Strengthen flexibility limitation 5.0mm Remainder distortion limitation2.0mm	Strengthen flexibility 4.2mm Remainder distortion1.4mm
Cover Channel	Load test	Strengthen flexibility limitation10.0mm Remainder distortion limitation 2.0mm	Strengthen flexibility 8.9mm Remainder distortion 1.5mm
Test table above ,load keel is 50*15*1.2mm, cover channel is 50*19*0.5mm

Installation & Accessories:
We can also produce stud, runner, omega, furring channel, drywall screw, mesh tape, paper joint tape ceiling and drywall system accessories, feel free to contact us if you need more details.
Stock & Shipping:
Learn More About TRUSUS!
Trusus Building Materials Manufacturing Co., Ltd is one of the Top 3 stud and runner manufacturer in China, which specializing in manufacturing and marketing of gypsum board, pvc gypsum ceiling tiles, perforated gypsum board etc.,

Trusus focus on producing these products for 10+ years, with ISO9001, CE, CO, SONCAP, FTA, COC, PVOC certifications etc,
We provide you high quality products and VIP service.

Trusus have a well team-conscious, the ability of communication and coordination, work hard, meticulous and patience can afford
the pressure of the work. We are young, passionate, fun, experienced, helpful, when doing business with us, there is nothing you
cannot rest assured. Currently we have major customers from all over the world. Provide cost efficient yet quality products for our
customers, assisting them to gain competitive advantages are our major focus.
Certificates: ( ISO9001 CE SGS )
Attended Fairs:
Ask us for price now:
Q: How is TRUSUS brand?
TRUSUS is famous Top 3 brand gypsum board and steel channel manufacturer of China, has:
- 10+ years: manufacturer experience.
- 140000 square meters factory

Q: What Certifications do you have?
ISO9001, CE, CO, SONCAP, FTA, COC, FORM E/A/O, PVOC certifications etc. 100% quality check before each of shipment.

Q: What is your Payment methods?
Accept payment via T/T (Bank transfer), Western Union, Money Gram, PayPal and L/C at sight .

Q: How long is your production time?
10-15 working days after receiving deposit.

Q: What is the Shipping Way?
By sea to your nearest seaport

Q: What kinds of steel channel you can provide?
Support stud, runner, wall angle, omega, furring channel and so on.

Q: Is it possible to customization for special size?
Yes, support to produce the special size if bulk order.
