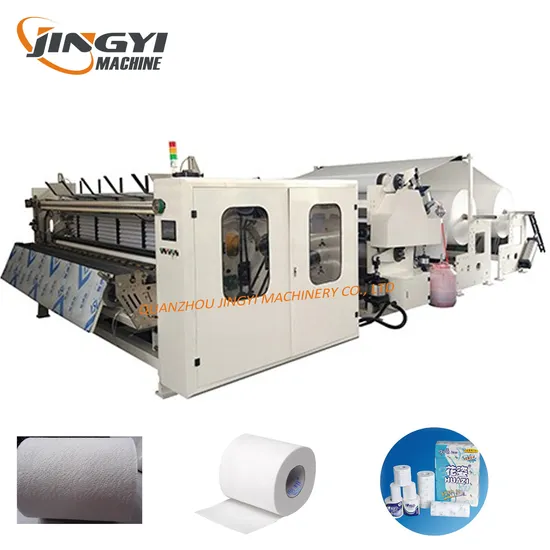

Jingyi Color Glue Lamination Toilet Paper Making Machine Price
| US$20,000.00-50,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
JY-JTZ
Control
Automatic
Embossing Type
Full-Embossing
Embossing Roller
Rubber Roller
Toilet Paper Type
with and Without Core
Function
Multi-Function
Jumbo Roll Max Width
3000mm
Jumbo Roll Diameter
1100mm( Can Be Ordered)
Jumbo Roll Inner Diameter
3 Inch
Perforation Distance
100-150mm
Finished Products Diameter
Dia 80-150mm
Totel Power
7.5-22kw
Unwind Stands
2 or 3 Stands
Unwinding Transmission
Variable Stepless Speed Regulation
Weight
6000kg (Approximately)
Parameter Set
HMI, Touch Screen
Production Speed
0-200 M/Min
Pneumatic System
3HP Air Compressor
Color
Optional
Transport Package
Wooden Cases
Specification
7000*3500*1500mm
Trademark
Jingyi
Origin
China
HS Code
84418090
Production Capacity
200 Sets Per Year
Product Description
Jingyi Color Glue Lamination Toilet Paper Making Machine PriceEquipment Description: This is an automatic rewinding machine for toilet paper and kitchen towel, with the function of roll core auto feeding, embossing, glue lamination, perforating, trim sealing and so on. Can also do kitchen towel with lamination unit, also can do with colorful lamination. This machine is designed and made according to CE certificate standard, with safety safety-guard door, emergency stop and other safety devices, to protect operators. With automatic roll core feeding unit, without manual roll core feeding, after rewinding will automaticly push out the log, and immediately rewind again. Can adjust the specification of the roll core easily. With international advanced PLC programmable controlling technical, man-machine interface operation table. The production data and technical parameters show on touch screen. With high precise perforation blades, lower noise, clearer perforation, can adjust the perforating distance with bigger range. Jumbo roll tension controlling system, Pneumatic lifting the jumbo roll; Can use the steel to steel embossing unit for point to point embossing rollers, make the paper softer, and double layers match well. This equipment is durable and wearable with simple operation and maintaining. Main Technical Parameter:
| Max jumbo roll width | 1750mm (other size can be ordered) Can order from 1200mm to 3000mm |
| Max jumbo roll diameter | φ1100mm(for bigger size can be ordered) |
| Jumbo roll inner diameter | 3inches (76.2mm) |
| Finished products diameter | φ80-150mm |
| Perforated distance | 100-150mm (other size can be ordered) |
| Production speed | 0~200m/min |
| Machine power | 7.5~22kw (depends on machine model) |
| Roll core unit | With or without roll core |
| Jumbo roll stands | 1~3 stands (standard is 2) |
| Embossing unit | Single embossing, double embossing (steel to rubber roller, steel to paper roller, steel to steel roller) |
| Jumbo roll loading | With air cylinder loading |
| Parameter setting | Man-machine interface operation, Touch screen |
| Machine overall dimension | 3500*2500*1500~6000*3500*1500mm |
| Machine weight | 1500~4500KG (approximately) |
| Remote controlling | Depends on customer |
| Lamination unit | Can be ordered |
| Colorful lamimation | Can be ordered |
