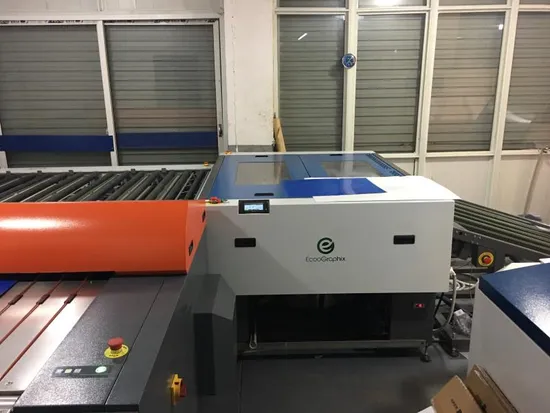

Ecoographix T1600m Offset Prepress Very Large Format B0 Thermal CTP

Product Description

EcooGraphix Large Format Thermal CTP Machine
EcooSetter VLF T-1600M CTP Laser wavelength: 830nm Plate: 830nm thermal plate Exposing Method: External Drum Imaging System:64-channel Throughput: 10 plates per hour, 1630mmx1325mm 2400dpi Plate Size: Max. 1680x1350mm , Min. 650x550mm Plate Thickness:0.15-0.30mm or 0.25-0.40mm ( Alternative) Resolutions:2,400dpi Repeatability:±5μm(continuous exposing for four times or above on the same plate with a temperature of 23ºC and humidity of 60%) Interface:USB2.0 Weight:1600KG Size:2355×1910×1217mm(W×D×H) Power Supply: single-phase: 200AC-240AC;Power Consumption: 5KW Environment:recommended :21-25ºC, Max:18-26ºC, humidity: 40-70%

EcooGraphix VLF(Very Large Format) CTP Series Specifications
Model	UV-1600S	UV-1600SX	T-1600S	UV-1600M	UV-1600MX	T-1600M
Exposing Mothod	External Drum
Imaging System	64-channel	128-channel	64-channel	64-channel	128-channel	64-channel
	Discrete 400-410nm laser diode	Discrete 400-410nm laser diode	Discrete 830nm laser diode	Discrete 400-410nm laser diode	Discrete 400-410nm laser diode	Discrete 830nm laser diode
Output Speed	16plates/hour	27plates/hour	16plates/hour	10plates/hour	18plates/hour	10plates/hour
	1470mm x1180mm /2400dpi			1630mm x 1325mm / 2400dpi
Plate Sizes	Max.1470mm x1180mm; Min. 650mm x 550mm			Max.1680mm x1350mm; Min. 650mm x 550mm
Exposing Size	Max. 1454mm x 1164mm			Max. 1680mm x 1336mm
Media Type	positive UV-CTP plate	positive thermal CTP plate	positive UV-CTP plate	positive thermal CTP plate	positive UV-CTP plate	positive thermal CTP plate
Plate Thickness	0.15mm to 0.30mm or 0.27mm to 0.40mm(alternative)
Resolution	2400dpi
Repeatablity	±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface	USB 2.0 or USB3.0(USB2.0 is recommended)
Plate Loading	semi automatic(alternative autoloader system)
Net Weight	2600kg			1800kg
Machine Size (WxLxH)mm	2355x1910x1217			2400x1430x1110
Power Supply	single phase:220V-240V, power Consumption(peak value):5.5KW
Operation Environment	recommended temprature:21-25ºC;allowed temperature :15-30ºC, humidity:<70%RH

Our Factory:
Our Partners:
FAQ:
1. What are your main products ?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packing equipments and so on.
There are thousands of our CTPs installed worldwide. Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.
We can also supply the thermal CTP plate(single and double layers),positive CTCP plates(single and double layers) and Chemistry free Processless CTP plate.
You can get the prepress equipment and consumables all in one and no worry about the after-sales service from our company.
2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3. What is your warranty for the CTPs ?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.
4. What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
