High-Efficiency Aluminum Turning Machining Made in China

Product Description

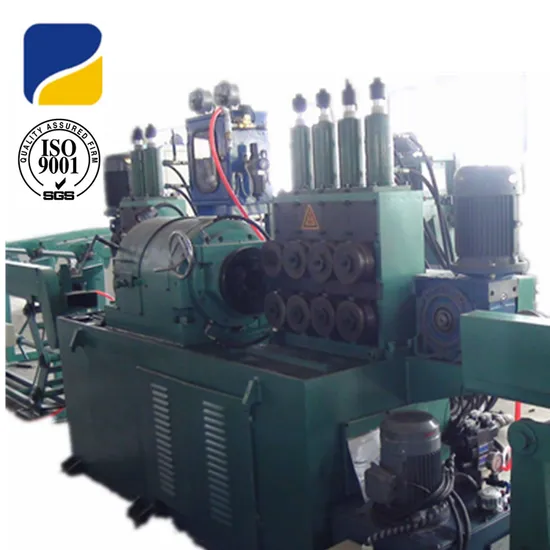

automatic lathe peeling machine
Series WXC Centerless Lathe includes Semi-automatic hydraulic and CNC type.
The machine's features are as follows:
When processing over-length bar,centerless lathe has incomparable advantages.
Centerless Lathe is not only processing Bar,also Wire Rod.
Processing speed 1~12m/min,the working efficiency of centerless lathe is dozens of times of the ordinary lathe.
High Precision,after peeling,diameter tolerance can reach ≤h9,surface roughness(Ra)≤6.3μm.
Our product is suitable for processing all kinds of metal materials, such as steel tubecore bar, titanium alloy, stainless steel, bearing steel, spring steel, alloy tool steel, carbon tool steel, high-speed tool steel, quality carbon steel, alloy structural steel, nonhardening and tempering steel, free-cutting steel, valve steel, gear steel, mold steel and all kinds of nonferrous metal, pipe etc.

Technical Parameters The type is WXC60B
Raw material
Diameter D (mm) Φ14 to Φ60
Length L (mm) 2200≤L≤6000
Tensile strength σb (Mpa) ≤1100
Surface hardness ≤HB320
Bending (mm/m) ≤1.5
Diameter tolerance according to GB/T 702-2004 group 2 execution
Roundness (mm) D≤50mm, roundness ≤ 50% of diameter tolerance
50mm≤ D ≤60mm, roundness ≤ 65% of diameter tolerance
Surface roughness (Ra) ≤25 ~ 50m
Finished product
Diameters D (mm) Φ13.5 to Φ59
Diameter cutting depth (mm) 0.5~1.0
Diameter tolerance ≤IT10
Surface roughness (Ra) ≤6.3μm
Roundness (mm) ≤0.03

Turning speed (stepless speed regulation m/min) 1.0~6.0 (continuous chip, high strength, high hardness of raw materials must be reduced)
Cutter speed (continuously variable speed) (r/min) 400~1200
Main motor power (kW) 45 (4 poles)
Feed motor power (kW) 4.0X2 (4 poles)
The overall dimensions of the host (m) are 3.0X2.5X2.0
External dimension with auxiliary machine (m) 13.0X2.5X2.4 (for reference only)
Main engine weight (with auxiliary engine weight) (t) 5.0 (8.0) (for reference only)
Total installed capacity (kW) 55
Compressed air source (user's own) 0.5~0.8MPa, 1.8m3/min, 0.8m3 or above gas storage tank, with two stage oil-water separator and compressed air freezer dryer
Company introduction Yantai Haige International Trading Co.,Ltd., is a joint-stock enterprise engaged in exporting niche mechanical equipments produced in China to the markets abroad, which is located in Laishan district, Yantai City, Shandong Province, China.
The company is based on the manufacturing plant---Yantai Haige machine tools Co.,Ltd whose area is more than 2000m².There are one hundred and forty staffs working in the factory.The factory is mainly engaged in producing and selling peeling machines(centerless lathes), straightening machines, polishing machines(abrasive belt machines), auxiliary machines and other processing and finishing equipment for steel(bright steel) for more than ten years.
Certification
Packaging & Shipping
FAQ 1.Are you manufacturer or trading company?
We are professional manufacturer and we have more than 10 years experience in this field.We have our own factory.
Besides,at the end of 2014,we was just estabilished a trading company.
2.How many employees are there in your factory?
Approximately 150 persons.
3.Do you have your own R&D team?How many design engineers do you have?
Yes,we have our own R&D team.More than 10 persons.
4.Which countries have your machines been exported to now?
Russia,South Korea,North KOrea,Pakistan,India,Vietnam,Taiwan,etc.
We regard our customer's satisfaction as our unremitting pursuit.
