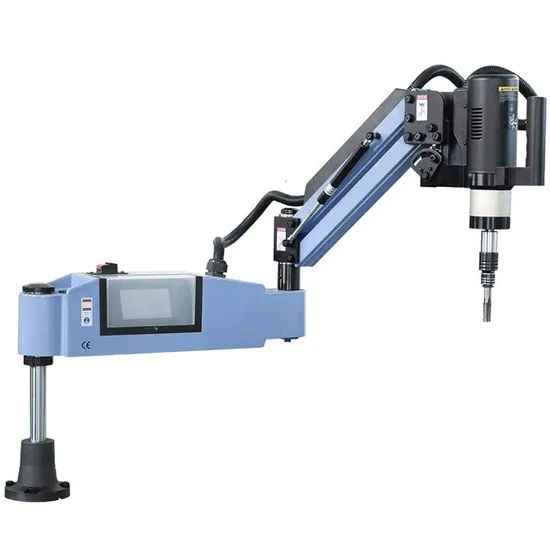

Electric Tapping Machine with CNC Technology

Product Description

Introducing the CNC Electric tapping machine by QUANZHOU YUELI AUTOMATION CO., LTD. This Vertical Drilling Machine offers a 1 Year Warranty and Technical Support.
Product Description
Welcome to QUANZHOU YUELI AUTOMATION CO., LTD.
Servo Electric Tapping Machine The Servo Electric Tapping Machine, also known as a tapping machine, is a versatile and efficient tool that offers unparalleled advantages. With intelligent depth setting and torque adjustment, this machine is light, flexible, and highly efficient. It eliminates the limitations of traditional equipment like lathes, drill presses, or manual tapping, saving time and effort. Additionally, it reduces the risk of damaged teeth or broken taps.
Function overview
QUANZHOU YUELI AUTOMATION CO., LTD. Tapping Machine Introducing our innovative tapping machine with a range of advanced features:
Manual tapping mode Automatic tapping mode Deep hole processing mode Workpiece storage function Universal horizontal tapping External thread die tapping Chamfering function Tapping with tap extension rod Thread twisting mode Experience efficient and precise tapping operations with our versatile machine designed to meet various industrial needs.
Device functions

NAME	universal	single injection	Dual fuel injection	blow air	three-section arm	lifting
quantity	1	1	1	1	1	1

Technical Parameter

model	YL-M10C	YL-M12C	YL-M16C	YL-M20C	YL-M24C	YL-M30C
Input voltage	220V/50HZ	220V/50HZ	220V/50HZ	220V/50HZ	220V/50HZ	220V/50HZ
rated power	600W	600W	600W	600W	1200W	1200W
Tapping range	M3-M10	M3-M12	M3-M16	M3-M20	M3-M24	M3-M24
Way of working			Vertical /vertical horizontal
working radius	1045mm	1045mm	1045mm	1045mm	1045mm	1045mm
Maximum speed	1200rpm	660rpm	375rpm	240rpm	550rpm	200rpm
Package Size	700*660*220mm	700*660*220mm	700*660*220mm	700*660*220mm	700*660*220mm	700*660*220mm
equipment weight	31kg	31kg	31kg	31kg	52.5kg	52.5kg

Production workshop
Electric Tapping Machine Suitable Workpiece Materials: The electric tapping machine is designed to easily tap various metal materials such as lead, copper, A3 steel, cast iron, pig iron, stainless steel, Q235, 45 steel, S136 mold steel, 718 mold steel, Ace material, NAK80 mold steel, and more.
Application Fields: The servo electric tapping machine is suitable for a wide range of machinery manufacturing industries, including machine tools, mold machinery, plastic machinery, printing machinery, packaging machinery manufacturers, engineering machinery, automobile and motorcycle parts, aerospace engines, rolling stock, *** machinery, and general machinery.
Manufacturer: QUANZHOU YUELI AUTOMATION CO., LTD.
Production Workshop Explore our CNC Electric tapping machine at QUANZHOU YUELI AUTOMATION CO., LTD. for efficient vertical drilling. Enjoy 1-year warranty and technical support.
Features: Servo motor (OKERS) Servo drive system High-definition human-machine interface Precision planetary reducer High-precision bearing bracket High-strength fixed base Safety torque protection chuck Electrical box Chuck special wrench Power cord
Our Advantages
Product Description: This machine, developed by QUANZHOU YUELI AUTOMATION CO., LTD., offers technical advantages surpassing similar products:
Microcomputer control for automatic motor output torque setting, enabling blind hole continuous tapping with overload protection. Intelligent depth setting with manual, standard thread automatic, and non-standard thread automatic modes for versatile tapping operations. Flexible tapping options allowing for continuous or intermittent attacks and retreats. High efficiency, enabling hassle-free continuous use and replacing multiple ordinary tapping machines. Precision planetary reducer from Taiwan for durability and high precision. High-precision, thick, and strong bracket for stable support. Large working range to accommodate heavy workpieces without the need for relocation. Stable performance with trouble-free continuous use. 12-month free warranty with a responsive after-sales department operating 7 days a week.
QUANZHOU YUELI AUTOMATION CO., LTD. Product Name: CNC Electric Tapping Machine
Features:
Vertical drilling machine structure 1-year warranty Technical support included Description: The CNC Electric Tapping Machine from QUANZHOU YUELI AUTOMATION CO., LTD. is designed with a vertical drilling machine structure, ensuring top-notch quality. This manual machine comes with a 1-year warranty and includes technical support for your convenience.
CNC Electric Tapping Machine Upgrade your drilling capabilities with the Vertical drilling machine from QUANZHOU YUELI AUTOMATION CO., LTD. This machine comes with a 1-year warranty, ensuring peace of mind with your purchase. The manual operation is user-friendly, and technical support is readily available for any assistance you may need.
Welcome to Quanzhou Yueli Automation Co., Ltd. Our services:
Quick response to inquiries within 24 working hours. Experienced staff fluent in English to answer all your questions. Customized design available, UEM & UBM welcomed. Exclusive solutions provided by our professional engineers and staff. Special discounts and sales protection for distributors. Professional factory with over 20 years of experience in machinery production. Sample testing available within one week for large orders. Superior raw materials and skilled technicians ensure high-quality products. Contact us for more information or visit our company for a closer look at our offerings.
Welcome to QUANZHOU YUELI AUTOMATION CO., LTD. Founded in 2013, QUANZHOU YUELI AUTOMATION CO., LTD. is a leading production enterprise specializing in drilling tapping compound machines, drilling tapping centers, and drilling tapping milling process centers. Located in Nanan, Fujian, China, our company serves industries such as sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, and machine manufacturing.
Committed to innovation and quality, we offer research and development, production, sales, and service. Our state-of-the-art facilities include CNC gantry rail grinder machines, boring mills, milling machines, polishing compound machines, and advanced testing equipment.
Renowned for quality and reliability, our products have a strong presence in the domestic market and are exported worldwide. We focus on customer satisfaction and dedicated service, striving for perfection in all our products.
At QUANZHOU YUELI AUTOMATION CO., LTD., we are dedicated to meeting user needs, enhancing professional expertise, and incorporating the latest technological advancements for top-notch quality. Join us in creating a brilliant future together!
