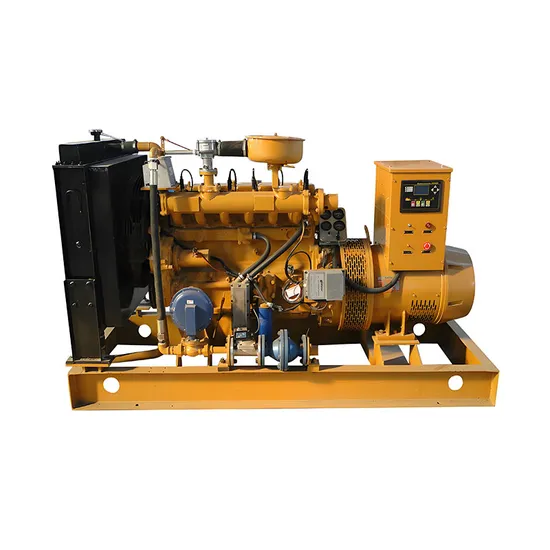

100kw for Biogas Power Generation Unit

Product Description

Product Description Environmental conditions and requirements for biogas
The biogas generator set can operate stably and reliably under environmental conditions of -40ºC~+40ºC, relative humidity <90% (at 25ºC), and altitude ≤1000m. Under standard environmental conditions (atmospheric pressure 100KPa, ambient temperature: 25ºC, relative humidity 30%), the gas quality meets the standard conditions and can output rated power. Unit requirements for biogas
Within 1m of the unit's gas inlet pressure regulating valve,
1. Biogas temperature ≤40ºC;
2. Biogas pressure 3~10kPa, pressure change rate ≤1kPa/min;
3. The volume content of methane in biogas is not less than 40%, and the change rate is ≤2%/min;
4. H2S ≤20mg/Nm3;
5. NH3 ≤20mg/Nm3;
6. Impurity particle size ≤5μm, impurity content ≤30mg/Nm3;
7. Moisture content in biogas ≤40g/Nm3.
Special instructions are required for biogas with a methane volume content of ≤50%.
If the sulfur and ammonia content in the combustible gas is high, it will not only seriously corrode the spark plug electrode, but also increase the acid value in the engine oil, corrode the internal parts of the unit, and easily generate sediment, increasing corrosion and wear to the engine.
Detailed Photos

Product Parameters

2. Main specifications of the generator set
Generator model	LX - 80GF		Rated current	144 A
Rated Power	80 kW		Power Factor	0.8
Reserve power	100 kVA		Controller	Automatic PLC control
Rated voltage	400V/230V		Speed regulation mode	Electronic speed control
Rated frequency	50Hz		Type	Open
Rated speed	1500 rpm		Biogas /gas consumption rate	0.6 /0.3 m³/Kw·h
* Altitude <1000 meters, ambient temperature <40 ºC , ambient humidity ≤60%. * Rated power: The maximum power of the generator set when it is continuously operated with variable load and with unlimited operating hours per year under the agreed operating conditions and maintenance as specified by the manufacturer. The average power output during a 24-hour operating cycle should not exceed 70% of the rated power, in accordance with GB/T2820-97 (eqv ISO8528) . * Standby power: The generator set can be overloaded on the basis of continuous power for 1 hour every 12 hours within a certain period of time. 10%, the unit power at this time is the standby power. * Rated voltage: 380/220V , 400/230V , 415/240V , 440/254V and other voltages can be customized.

4. Engine technical parameters
Engine Model	Huadong 6126D-NG
Rated Power	82KW
Cylinder Type	In-line, four-stroke
Rated speed	1500 rpm
Number of cylinders	6 cylinders
Bore x stroke	12 6 × 1 30 mm
Displacement	10L
Startup Mode	Electronic start
Compression ratio	11.5:1
Crankshaft rotation direction	Counterclockwise (from the flywheel direction)
Cooling method	Water Cooling
Air intake method	Naturally Aspirated
Gas mixing method	Premix
Speed regulation mode	Electronic speed control
Biogas /gas consumption	0.6 /0.3 m³/Kw·h
Lubricating oil pressure	345-483 Kpa
Exhaust temperature	580 ºC

5. Generator technical parameters
Generator brand	Brushless generator		Insulation class	Class H
Rated Power	80 kW		Wiring method	Three-phase four-wire
Reserve power	100KVA		Cooling method	Air Cooling
Rated current	144 A		Protection level	IP2 3
Power Factor	0.8		Voltage adjustment method	AVR Automatic Voltage Regulation
Excitation type	Brushless self-excitation		Voltage adjustment range	≥±5%
Voltage regulation rate	±1.0%		Connection method	Single bearing

Packaging & Shipping Strict inspection and testing, using advanced instruments to conduct comprehensive testing of the generator sets required by your company, to ensure that the performance indicators of the products meet your company's requirements. The company will explain our company's technical information in a comprehensive and detailed manner.
The warranty period is 12 months or 1500 hours of operation, whichever expires first. If quality problems occur during the warranty period and it is confirmed that the problem is caused by our generator set rather than external or natural causes (refer to various natural disasters, transportation, loading and unloading, wrong operation, etc.), we will provide the relevant spare parts for maintenance free of charge. After the warranty period, we can provide you with the required spare parts at cost price.
