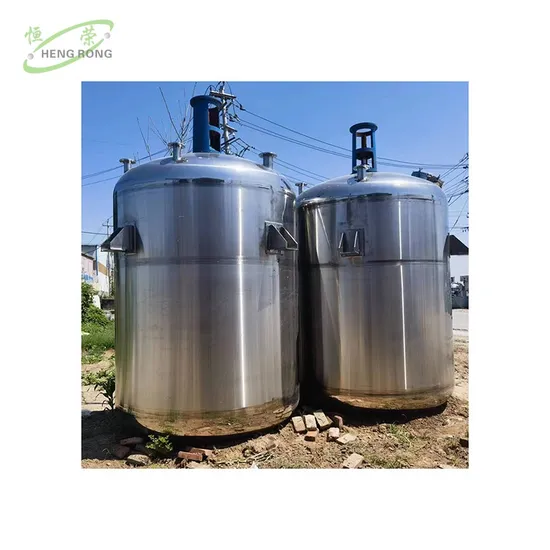

Hot Melt Adhesive Vacuum Heating Reactor Coaxial High-Low Speed Mixing Tank

Product Description

Product Description
Liquid mixing tank, also known as water phase tank, widely used in coatings, pharmaceuticals, building materials, chemicals, pigments, resins, food, scientific research and other industries. The equipment can be made of carbon steel, stainless steel and other materials according to the process requirements of users, and set up heating and cooling devices to meet the different process and production needs. The heating forms are electrical heating in jacket and coil heating, the equipment is reasonable in structure design, advanced in technology, durable, and has the characteristics of simple operation, easy use, etc. , it is an ideal chemical equipment with low investment, fast production and high profit.
Product Overview
1. Volume: 50L, 100L, 200L, 300L, 500L, 600L, 1000L ~ 5000L.
2. Tank body: internal surface polishing treatment.
3, top cover: for two open-type movable cover, easy to clean, external surface polishing treatment
4, tank bottom structure: after spinning processing into R angle, with the inner tank body welding, polishing no dead angle, put clean materials without retention.
5, housing surface treatment: mirror polishing or 2b primary color matte or 2b matte matte treatment
6, mixing device: top center mixing, the output shaft of the reducer is connected with the stirring propeller shaft by a looper for convenient disassembly, assembly and cleaning.
7, Mixing paddle form: frame type, anchor type, paddle type, turbine type, etc. (according to process requirements) .
8. Foot type: round tube type or hanging lug type. 9. The flanging process arc transition is adopted in the welding place of each inlet and outlet process hole and inner tank body, which is smooth, easy to clean, no dead angle and beautiful appearance.
Product Parameters

Model	Nominal capacity (L)	Diameter of the body(mm)	Height of cylinder(mm)	Motor Power(kw)	Heating power(kw)
JBG-100	100	550	500	0.75	12
JBG-200	200	650	620	0.75	12
JBG-300	300	750	700	0.75	16
JBG-500	500	900	800	0.75	18
JBG-800	800	1050	950	0.75	24
JBG-1000	1000	1050	1250	1.5	36
JBG-1200	1200	1150	1250	1.5	36
JBG-1500	1500	1250	1250	1.5	36
JBG-2000	2000	1450	1250	2.2	48
JBG-2500	2500	1500	1500	3	60
JBG-3000	3000	1600	1500	4	72
JBG-4000	4000	1700	1800	4	96
JBG-5000	5000	1800	2000	5.5	120

* stirring speed (r/min) : optional (35/60/80/120) . If you need to adjust speed, another converter can be customized according to customer needs, motor power for the standard configuration, if required, please put forward!
Detailed Photos
Company Profile
At the cutting edge of innovation, Shenzhen Hengrong Water Treatment Equipment Co., Ltd., also known as Hengrong Water Treatment or Hengrong Environment, epitomizes excellence in delivering premium stainless steel and carbon steel water treatment equipment accessories. Boasting state-of-the-art production facilities and unparalleled technological expertise, Hengrong stands as an industry leader, renowned for its formidable technical capabilities.
Our diverse product portfolio includes an impressive array of precision filters, sand carbon filters, softening tanks, RO membrane shells, aseptic water tanks, mixing beds, ion exchangers, ozone mixing towers, and iron and manganese removal filters. We also provide ultraviolet sterilizers, flow-stabilizing tanks, reverse osmosis pure water equipment, nanofiltration pure water equipment, integrated water purification systems, and comprehensive sewage treatment solutions-all meticulously designed to meet our clients' varied needs.
Hengrong embodies environmental stewardship in China, acclaimed as a high-tech enterprise committed to producing superior water treatment equipment and accessories. Equipped with cutting-edge production facilities and industry-leading argon arc welding technology, we guarantee exceptional quality and unmatched customer service. Our expertise spans domestic drinking water projects, food-grade purified water, pharmaceutical ultra-pure water, pipeline direct drinking water, and projects focused on reclaimed water reuse and non-negative pressure water supply. We are heavily invested in engineering, construction, operation management, and the design and manufacture of comprehensive water purification and sewage treatment systems.
With a wealth of experience in managing extensive direct drinking water systems, domestic water supply, and reclaimed water and sewage treatment projects, Hengrong excels in supporting governments, developers, and property owners in establishing robust operational management systems. We specialize in building adept management and operational teams, offering unwavering technical service support. Shenzhen Hengrong Water Treatment Company is poised for the future, committed to ongoing growth and innovation through first-class quality, service, technology, and reputation. We warmly invite you to partner with us as we endeavor to create a cleaner, more beautiful world, driven by our steadfast dedication to providing exceptional water treatment solutions. Let us serve the community with our unwavering commitment and dynamic progress.
FAQ
1.Questions: Are you a trading company or a manufacturer?Answers: We are a manufacturer specializing in the production and installation of sewage treatment equipment, water purification equipment, and water treatment accessories.
2.Questions: How long is the warranty period for your equipment?
Answers: Our equipment has a warranty period of one year.3.Questions: Do you have any after-sales service work?Answers: We provide professional installation guidance and after-sales service.4.Questions: How do you usually package and transport your goods?Answers: Our equipment is usually shipped by container to the nearest port adjacent to the receiving address.5.Questions: Do you accept device customization?Answers: We accept customized services and can customize production equipment according to the requirements you provide.
