Angola Market 20cbm 20000 Liters 10 Tons 10mt Mobile LPG Gas Cylinder Filling Station Propane Skid Station

Product Description

Angola Market 20cbm 20000 Liters 10 Tons 10MT Mobile LPG Gas Cylinder Filling Station Propane Skid Station, ASME 20CBM 20000 Liters 10 tons 10MT LPG Skid Mounted Station LPG Gas Refilling Plant for Gas Cylinder filling
Product Description
lpg refilling plant (also called gas refilling plant,cylinder refilling plant,lpg refilling plant,cylinder refilling station,lpg skid station,skid lpg station,propane skid station,propane bottling plant) is a completed mini lpg station composed with lpg tank,lpg pump and motor,cylinder weighting and filling machine,valves and pipeline.Propane refilling station is used to refill cylinders,suitable for limited land space.Usually 5tons and 10tons propane refilling station will be located next to a fuel refilling station and offer cylinder bottling service.
Feature for Angola Market 20cbm 20000 Liters 10 Tons 10MT Mobile LPG Gas Cylinder Filling Station Propane Skid Station
1. lpg refilling plant for cooking gas refilling in home use cylinder in different size.
2. One Propane refilling plant with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump
3. Digital Filling Scale with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling
4. Pump of Propane refilling plant is optional: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand.
5. Motor of Propane refilling plant: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
6. Pipeline: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
7. Explosive Proof Central Control Panel for whole station system
8. Other Equipment: Sunshade for filling area, Leakage Detector,ex-plosive lamp

Technical Specifications for 1NNPC standard 15CBM 15M3 7.5MT 7.5 Tonne LPG Gas Cylinder refilling plant
LPG skid station with flow meter, remote device load cell

10 CBM (5 Tons) LPG TANKER DIMENSIONS
Volume of Tank	10 CBM
Filling Weight	5 000 kg
Tank Weight	5050 kg
Thickness of Shell (mm)	12 mm
Thickness of Endplate (mm)	12 mm
Tank Diameter (mm)	2100 mm
External Dimensions (mm) (length x width x height)	6154*2124*2714 mm
Material of Tank and Main Pressure Parts	Carbon Steel Q345R
Filling Medium	Liquefied Petroleum Gas ( Propane)
Design Pressure	1.77 MPa
Corrosion Allowance	1 mm
Medium Density	420-590 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Other accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge.

10 cbm LPG station Part list
Item	Model Number	Quantity
LPG Tanker	10 cbm (5 tons)	1 piece
LPG Dispenser	Double nozzles type	1
Control panel	CLW Standard control panel for the LPG	1 Set
Electrical system	CLW standard electrical system	1 set
Connecting and filling system	Unloading or loading two direction operation for the LPG tank.	1 set
LPG Filling Pump(China brand)	2" inlet & 2" outlet	1 Piece
China Motor	380V with 220V adapter	1 Piece
Cut-off Valve	J41N-40 DN50	25 Pieces
	J41N-40 DN15	10 Pieces
Safety Valve	A42F-25 DN50	1 Piece
Pipe Safety Valve	A21F-25 DN15	1 Piece
Ball floating level gauge	UQZ-2.5P	1 Piece
Discharging pipe	L=4M DN50/DN25	1 Piece
Shock-absorbing Tube	L=500mm DN50	2 Pieces
Flange	2.5MPaDN15	20 Pieces

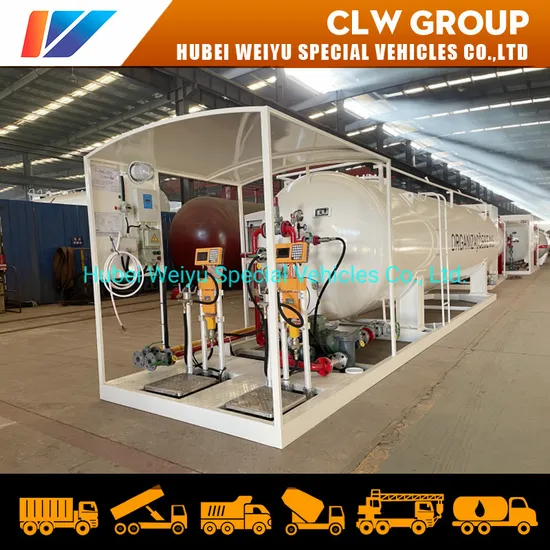

The pictures for Angola Market 20cbm 20000 Liters 10 Tons 10MT Mobile LPG Gas Cylinder Filling Station
Propane Skid Station.
