High Precision MDF Acrylic Wood Automic 3D CNC Router

Product Description

High Precision Mdf Acrylic Wood Automic 3D Cnc Router
(Model:PEM-4040)
PEM-4040 3D CNC router is with high-speed main spindle, cooling of water circulation, mini 3D CNC router has little noise and pollution.
The engine bed of 3D CNC router is made from pure aluminum, which ensures the parallelism, vertical and greatly increases the precision and speed of the engine bed.

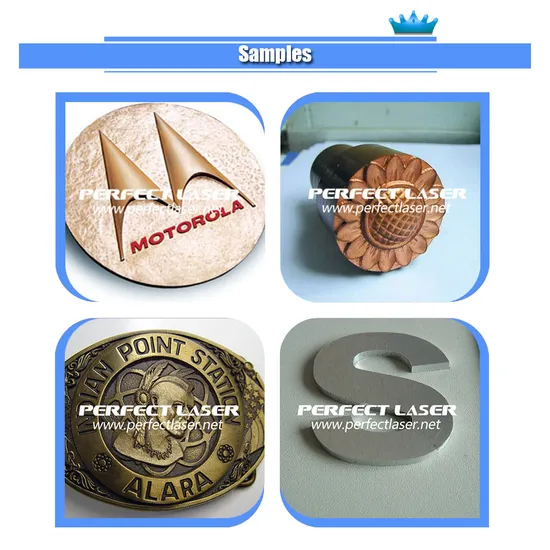

The mini CNC milling machine is applied in cutting of kneading board of large size and making of large-scale relief and label.

Model	PEM-4040
Power stroke of X,Y,Z axis	400*400*80mm
Size of working table	520×540mm
Power of main axle	1.5KW
Running location precision of X,Y,Z axis	±0.03mm
Repeating location precision of X,Y,Z axis	±0.01mm
Power stroke of Z axis	120mm
Working style	Stepping motor (Option :Servo Motor)
Spindle speed of frequency conversion main axis	6000-24000rpm/min
Working voltage	AC220V/50HZ
Engraving order	G Code.uoommg
Optional main axis and Cartridge	φ3.175.φ6
XY Running sensitivity	0.02mm
Optional Item	DSP Remote Controller(for offline working)
Optional Item	Acrylic Polishing Machine

Special Features:
1) X, Y, Z axis use imported ball bearing guide screws. It's precise and fast. Even the letters of 1mm can be clearly discernible. The small-power machine uses large-power main axis, it's an ideal product for manufacturing labels, construction models and moulds in batches.
2) High speed calculation It uses DSP64 contouring control system and FPGA technology which can continually and smoothly run the three axes with high speed. It has the ability of calculation of 5000 vector/s.
3) Steady data transmission .The data transmission uses the technology of ISA/IP DNC/IP straight association,which can associate the machine without interruption, and it has no limitation of the amount of the document.
4) Double-nut guide screw .It uses Germany-imported high-precision ball bearing guide screw which can eliminate cracks automatically. Coordinated with the imported shaft coupling, it can realize precise control. It uses straight line guide rail (cylinder or square), which can ensure the working life.
5) Large internal memory capacity of 32M is able to store 30 processing files simultaneously and open and process any of them.
6) Connection with the computer via USB interface enables data to be transmitted in a second, supports hot plug and play, no driver installation required(Window98/NT/2000/XP)
