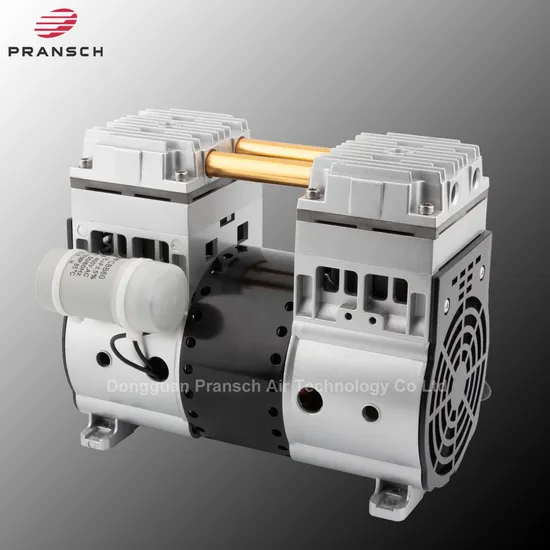

250L/Min Mini Oilfree Dermatology Eye Surgery Ventilators Ovens SPA Aspiration Milker Dental Medical Beauty Oxygen Oil Less Piston Vacuum Pump

Product Description

200L/Min Mini Low-Noise Portable Oilless Dermatology Eye Surgery Centrifuge filtering ventilators Oil Less Piston ovens Medical aspiration Dental Vacuum Pump
Advantages:
Oil-less Vacuum Pumps / Air Compressors
PRANSCH oil-less rocking piston pump and air compressor combines the best characteristics of traditional piston pumps(air compressor) and diaphragm pumps into small units with excellent features. Light weight and very portable Durable and near ZERO maintenance Thermal protection (130 deg C) Power cord with plug, 1m length Shock mount Silencer - muffler Stainless steel vacuum and pressure gauge, both with oil damping Two stainless steel needle valves each with lock nut. All nickel plated fittings Power supply 230V, 50/60 Hz This series is ideal for use in applications where oil-mist is undesirable. For examples, pressure/vacuum filtration, air sampling, water aeration, flame photometer, etc.
Specification:

Model	Frequency	Flow	Pressure	Power	Speed	Current	Voltage	Heat	Sound	Weight	Hole	Installation Dimensions
	Hz	L/min	Kpa	Kw	Min-1	A	V	0 C	db(A)	Kg	MM	MM
PM200V	50	33	-84	0.10	1380	0.45	210/235	5-40	48	1.8	5	L100xW74
	60	50	-84	0.12	1450	0.90	110/125	5-40	48	1.8	5
PM300V	50	66	-86	0.12	1380	0.56	210/235	5-40	50	3.2	6	L118xW70
	60	75	-86	0.14	1450	1.13	110/125	5-40	50	3.2	6
PM400V	50	80	-92	0.32	1380	0.95	210/235	5-40	56	6.0	6	L153xW95
	60	92	-92	0.36	1450	1.91	110/125	5-40	56	6.0	6
PM550V	50	100	-92	0.32	1380	1.50	210/235	5-40	56	6.0	6	L148xW83
	60	110	-92	0.36	1450	3.10	110/125	5-40	56	6.0	6
PM1400V	50	166	-92	0.45	1380	1.90	210/235	5-40	58	8.5	6	L203xW86
	60	183	-92	0.52	1450	4.10	110/125	5-40	58	8.5	6
PM2000V	50	216	-92	0.55	1380	2.50	210/235	5-40	60	9.0	6	L203xW86
	60	250	-92	0.63	1450	5.20	110/125	5-40	60	9.0	6
HP2400V	50	225	-94	0.90	1380	3.30	210/235	5-40	75	17.0	7	L246xW127
	60	258	-94	1.10	1450	6.90	110/125	5-40	75	17.0	7
PM3000V	50	230	-94	1.10	1380	4.20	210/235	5-40	76	17.5	7	L246xW127
	60	266	-94	1.30	1450	8.50	110/125	5-40	76	17.5	7

Why use a Rocking Piston Product?
Variety
Pransch oilless Rocking Piston air compressors and vacuum pumps, available in single, twin, miniature, and tankmounted
styles, are the perfect choice for hundreds of applications. Choose from dual frequency, shaded pole,
and permanent split capacitor (psc) electric motors with AC multi-voltage motors to match North American,
European, and worldwide power supplies. A complete line of recommended accessories as well as 6, 12, and
24 volt DC models in brush and brushless types are also available.
Performance
The rocking piston combines the best characteristics of piston and diaphragm air compressors into a small unit
with exceptional performance. Air flow capabilities from 3.4 LPM to 5.5 CFM (9.35 m3/h), pressure to 175 psi
(12.0 bar) and vacuum capabilities up to 29 inHg (31 mbar). Horsepowers range from 1/20 to 1/2 HP
(0.04 to 0.37 kW).
Reliable
These pumps are made to stand up through years of use. The piston rod and bearing assembly are bonded
together, not clamped; they will not slip, loosen, or misalign to cause trouble.
Clean Air
Because Pransch pumps are oil-free, they are ideal for use in applications in laboratories, hospitals, and the
food industry where oil mist contamination is undesirable.
Application: Transportation application include:Auto detailing Equipment,Braking Systems,Suspension Systems,Tire Inflators Food and Beverage application include:beverage dispensing,coffee and Espresso equipment,Food processing and packaging,Nitrogen Generation Medical and laboratory application include:Body fluid Analysis equipment,Dental compressors and hand tools,dental vacuum ovens,Dermatology equipment,eye surgery equipment,lab automation,Liposuction equipment,Medical aspiration,Nitrogen Generation,Oxygen concentrators,Vacuum Centrifuge,vacuum filtering,ventilators General industrial application include:Cable pressurization,core drilling Environmental application include:Dry sprinkler systems,Pond Aeration,Refrigerant Reclamation,Water Purification Systems Printing and packaging application include:vacuum frames material Handling application include:vacuum mixing
